Cisco Compatible SFP 2.5GBASE-LX 1310nm 20km DDM Duplex LC/UPC SMF Optical Transceiver Module
SFP-2GE-LX/H20
The SFP-2GE-LX/H20 provides data transfer rates of up to 2.5Gbps and supports data transmission distances of up to 20km. The module uses an SFP interface and has a user-friendly design for easy installation, upgrade and replacement. It is suitable for a variety of data centers, switches, storage networks and servers and other communication occasions, is an indispensable part of the communication network.
Product Highlights
*Max. Power Consumption 1W
*Tested in Targeted Switch for Superior Performance, Quality, and Reliability
*Hot Pluggable SFP MSA Compliant
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*BOX - Support Real-time Configuration
*Compliant to SFF-8472 v9.5
*Class 1 FDA Laser Safety and RoHS Compliant
Product Highlights
*Max. Power Consumption 1W
*Tested in Targeted Switch for Superior Performance, Quality, and Reliability
*Hot Pluggable SFP MSA Compliant
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*BOX - Support Real-time Configuration
*Compliant to SFF-8472 v9.5
*Class 1 FDA Laser Safety and RoHS Compliant
Quantity:
Brand Compatible With 2.5GBASE-LX/LH SFP Transceiver Module（SFP Double Fiber Single-Mode,2.5G,1310nm,20km,LC,DDM）
Cisco compatible 2.5GBASE-LX SFP transceiver supports up to 20km link lengths over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. Each 2.5g fiber optical module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 2.5g fiber optical module is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
Product Details
Part Number：SFP-2GE-LX/H20
Description：SFP optical module dual-fiber single-mode, 2.5G, 3.3V, LC, working temperature 0~70℃, 1310nm, 20KM, DDM
Compatible with：H3C, HW, Cisco, HP, etc
Data Rate | Module Type | Distance | Wavelength | Interface | Temperature | DDM |
2.5Gb/s | SFP | 20KM | 1310nm | LC | 0~70℃ | Yes |

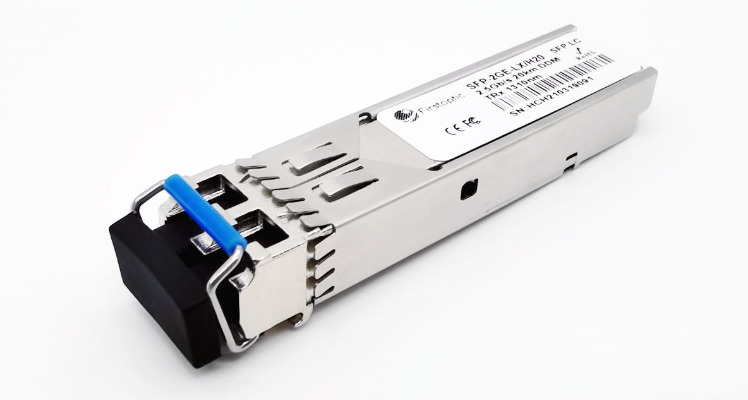

Gigabit single-mode SFP-2GE-LX/H20 is a high-performance 2.5g fiber optical module that uses single-mode fiber for data transmission and can achieve data transmission rates of up to 2.5Gbps. The 2.5g fiber optical module not only offers excellent stability and reliability, but is also an efficient optical fiber transmission solution.

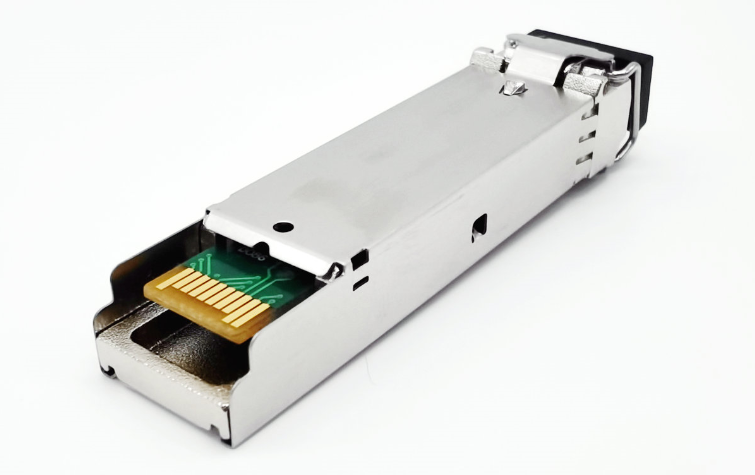

The 2.5g fiber optical module provides data transmission distances of up to 20 km, while also supporting digital diagnostic monitoring to manage and monitor the module's Settings. At the same time, the 2.5g fiber optical module also supports two-way data transmission, which can not only receive data, but also transmit data signals, so as to meet the needs of high-speed communication.
The 2.5g fiber optical module has a user-friendly design and uses a standard SFP interface for easy connection to other communication devices. The 2.5g fiber optical module can also meet the communication needs of higher rates. Moreover, the 2.5g fiber optical module also has a hot swap function, which is convenient to upgrade and replace the device, bringing a more convenient user experience.
In addition, our 2.5g fiber optical modules also have good adaptability, can be widely used in various types of data centers, switches, storage networks and servers and other communication occasions. Combined with the performance, stability and reliability of this product, we offer a high quality fiber optic communication product, including 2.5g fiber optical modules.
In short, the 2.5g fiber optical module has the advantages of high-speed data transmission, long-distance support, digital diagnostic monitoring and easy connection. The emergence of this 2.5g fiber optical module is expected to greatly promote the development and application of optical fiber communication technology, making it an ideal solution for a range of high-speed networking applications.
Specifications
Part Number | SFP-2GE-LX/H20 | Brand | Firstoptic |
Form Factor | SFP | Max. Data Rate | 2.5Gbps |
Wavelength | 1310nm | Max. Cable Distance | 20km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
TX Power | -5 ~ 0dBm | Receiver Sensitivity | < -18dBm |
Power Budget | 13dB | Receiver Overload | 0dBm |
Power Consumption | 1W | Extinction Ratio | >8.2dB |
DDM/DOM | Supported | Inbuilt FEC | No |
Commercial Temperature Range | -10 to 70°C (-37 to 158°F) | Protocols | SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5 Compliant |
Certification system
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features
Before shipping, we conduct rigorous product testing, including the testing of 2.5g fiber optical modules, to ensure that every product meets the high quality standards. We are committed to providing the most reliable and highest quality optical fiber communication products, to bring excellent performance and stability to our customers.
Test Equipment
Compatible Test
QC TestHigh Compatibility for all Brands
The company sells a full line of SFP optical module optical fiber products compatible with all major brands of equipment.
