Cisco Compatible SFP 2.5GBASE-SX 850nm 550m DDM Duplex LC/UPC MMF Optical Transceiver Module

SFP-2GE-MM

SFP-2GE-MM is a gigabit optical module based on the 2.5GBase-SX standard. It can be adapted to gigabit optical ports or Gigabit backward compatible optical ports. It is suitable for short-distance optical fiber transmission scenarios with a maximum transmission distance of 550 meters.

Product Highlights
*Max. Power Consumption 1W
*Tested in Targeted Switch for Superior Performance, Quality, and Reliability
*Hot Pluggable SFP MSA Compliant
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*BOX - Support Real-time Configuration
*Compliant to SFF-8472 v9.5
*Class 1 FDA Laser Safety and RoHS Compliant

Quantity:

Contact Now

add to cart

Brand Compatible With 2.5GBASE-SX SFP Optical Module（SFP Double Fiber Multimode,2.5G,850nm,550m,LC,DDM）

The 2.5GBASE-SX SFP transceiver supports up to 550m link lengths over multmode fiber (MMF) using a wavelength of 850nm via a LC connector. This SFP 2.5g multimode transceiver is compliant with SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0 and SFF-8472 v9.5 standards. The built-in digital diagnostic monitoring (DDM) allows access to real-time operating parameters. It is suitable for SONET OC-48 SR-1/SDH STM-16 I-16, 2x fiber channel applications, switch to switch interface, switched backplane applications.

Product Details

Part Number：SFP-2GE-MM

Description：SFP optical module dual-fiber multimode, 2.5G, 3.3V, LC, working temperature 0~70℃, 850nm, 550M, DDM

Compatible with：H3C, HW, Cisco, HP, etc

Data Rate	Module Type	Distance	Wavelength	Interface	Temperature	DDM
2.5Gb/s	SFP	550M	850nm	LC	0~70℃	Yes

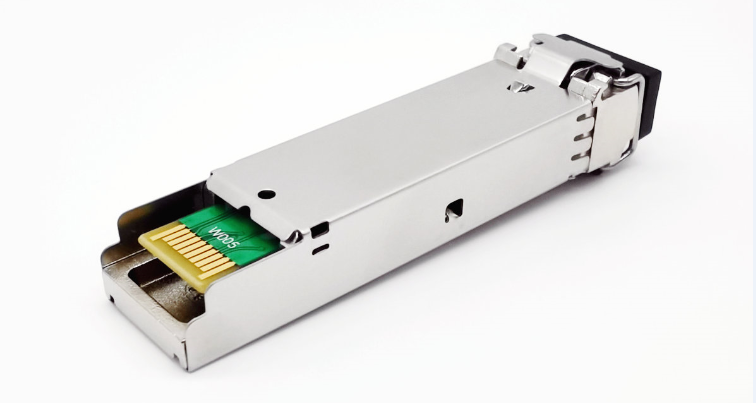

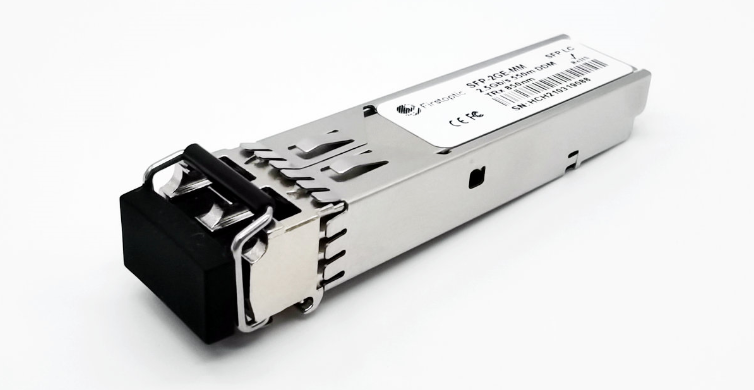

sfp 2.5g multimode is a high-quality, high-performance optical fiber communication product

The SFP-2GE-MM is a high-performance fiber optic communications product designed to meet the needs of high-speed data transmission. The SFP 2.5g multimode product uses multi-mode optical fiber technology, which can support data transmission distances of up to 550m. At the same time, the new SFP 2.5g multimode technology also makes the product has a stronger data carrying capacity. The product can be used in a variety of network application scenarios, including data centers, local area networks, telecommuting and security monitoring.

The SFP 2.5g multimode uses the SFP interface, which can be compatible with switches and routers from various manufacturers. The SFP 2.5g multimode product supports full-duplex transmission and is able to send and receive data simultaneously to achieve efficient data communication. In addition, the SFP 2.5g multimode product also has adaptive function, can automatically adapt to the network rate and chip type, improve the flexibility of the network system.

The SFP 2.5g multimode product uses high-quality optical fiber components and a precision photoelectric conversion chip to provide stable and reliable performance. In addition, SFP 2.5g multimode also supports hot swap function, and can be replaced and upgraded at any time without shutting down the system. At the same time, SFP 2.5g multimode has the characteristics of low power consumption, which can reduce the consumption of system power and improve the stability and reliability of the system.

When using SFP 2.5g multimode, users can not only enjoy high-speed network transmission, but also manage and monitor through network management tools. The SFP 2.5g multimode supports the SNMP protocol to monitor and remotely control the product. At the same time, SFP 2.5g multimode products also have automatic diagnosis and troubleshooting functions, which can automatically detect and identify the cause of network failures, improve the reliability and stability of the network.

In summary, SFP 2.5g multimode is a high-quality, high-performance optical fiber communication product that can meet the needs of users for data rate, transmission distance, network security and quality of service. SFP 2.5g multimode is also a very practical network application product, providing users with a wider choice and a more comprehensive solution.

Specifications

Part Number	SFP-2GE-MM	Brand	Firstoptic
Form Factor	SFP	Max. Data Rate	2.5Gbps
Wavelength	850nm	Max. Cable Distance	550m
Connector	Duplex LC	Media	MMF
Transmitter Type	VCSEL	Receiver Type	PIN
TX Power	-10 ~ - 3dBm	Receiver Sensitivity	< -18dBm
Power Budget	9dB	Receiver Overload	-3dBm
Power Consumption	1W	Extinction Ratio	>8.2dB
DDM/DOM	Supported	Inbuilt FEC	No
Commercial Temperature Range	-10 to 70°C (-37 to 158°F)	Protocols	SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5

Certification system

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Features

Before shipping, we conduct rigorous product testing, including the testing of SFP 2.5g multimode optical modules, to ensure that every product meets the high quality standards. We are committed to providing the most reliable and highest quality optical fiber communication products, to bring excellent performance and stability to our customers.

Test Equipment

Compatible Test

QC Test

High Compatibility for all Brands

The company sells a full line of SFP optical module optical fiber products compatible with all major brands of equipment.
