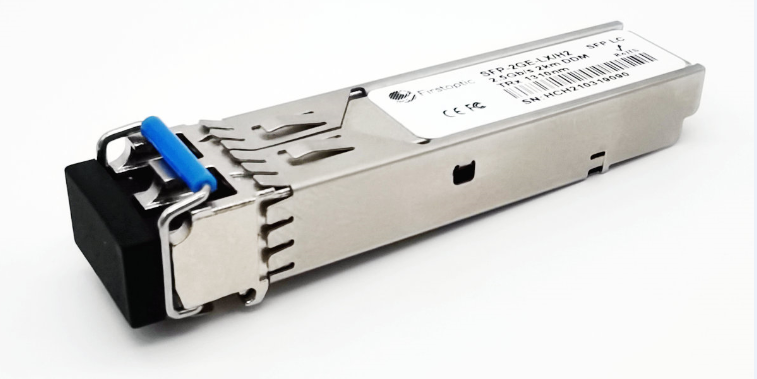

Cisco Compatible SFP 2.5GBASE-LX 1310nm 2km DDM Duplex LC/UPC SMF Optical Transceiver Module

SFP-2GE-LX/H2
The SFP-2GE-LX/H2 provides data transfer rates of up to 2.5Gbps and supports data transmission distances of up to 2 km. The module uses an SFP interface and has a user-friendly design for easy installation, upgrade and replacement. It is suitable for a variety of data centers, switches, storage networks and servers and other communication occasions, is an indispensable part of the communication network.

Product Highlights
*Max. Power Consumption 1W
*Tested in Targeted Switch for Superior Performance, Quality, and Reliability
*Hot Pluggable SFP MSA Compliant
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*BOX - Support Real-time Configuration
*Compliant to SFF-8472 v9.5
*Class 1 FDA Laser Safety and RoHS Compliant
Quantity:
Contact Now
add to cart

Brand Compatible With 2.5GBASE-LX/LH SFP Transceiver Module(SFP Double Fiber Single-Mode,2.5G,1310nm,2km,LC,DDM)

Cisco compatible 2.5GBASE-LX SFP transceiver supports up to 2km link lengths over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. Each 2.5g SFP optical module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 2.5g SFP optical module is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Product Details

Part Number:SFP-2GE-LX/H2
Description:SFP optical module dual-fiber single-mode, 2.5G, 3.3V, LC, working temperature 0~70℃, 1310nm, 2KM, DDM
Compatible with:H3C, HW, Cisco, HP, etc

Data Rate
Module Type
Distance
Wavelength
Interface
Temperature
DDM
2.5Gb/s
SFP
2KM
1310nm
LC
0~70℃
Yes

the 2.5g sfp optical module supports digital diagnostic monitoring

SFP-2GE-LX/H2 is a high-performance 2.5G SFP optical module designed specifically for fiber optic communications. The use of single-mode fiber for data transmission can provide up to 2.5Gbps data transmission rate, while having excellent stability and reliability, is an excellent fiber optic communication solution. Whether enterprise networks or data centers, 2.5G SFP optical modules are indispensable devices that can meet the needs of high-speed data transmission in different application scenarios, so that enterprises can operate more efficiently.

The 2.5g SFP optical module can achieve up to 2 km of data transmission distance, at the same time, also has a digital diagnostic monitoring function, can manage and monitor the module Settings. The 2.5g SFP optical module supports two-way data transmission, which can not only receive data, but also transmit data signals to meet the needs of high-speed communication.

The 2.5g SFP optical module has a user-friendly design and uses a standard SFP interface for easy connection to other communication devices.  The 2.5G SFP optical module can also meet the communication needs of higher rates.    Moreover, the device also has a hot swap function, which is convenient to upgrade and replace the device, bringing a more convenient user experience.

In addition, our 2.5G SFP optical modules also have good adaptability, can be widely used in various types of data centers, switches, storage networks and servers and other communication occasions. Combined with the performance, stability and reliability of this product, we offer a high quality fiber optic communication product, including 2.5G SFP optical modules.

the 2.5g sfp optical module supports digital diagnostic monitoring
In short, the 2.5G SFP optical module has the advantages of high-speed data transmission, long-distance support, digital diagnostic monitoring and easy connection. The emergence of this 2.5g SFP optical module is expected to greatly promote the development and application of optical fiber communication technology, making it an ideal solution for a range of high-speed networking applications.

Specifications

Part Number
SFP-2GE-LX/H2
Brand
Firstoptic
Form Factor
SFP
Max. Data Rate
2.5Gbps
Wavelength
1310nm
Max. Cable Distance
2km
Connector
Duplex LC
Media
SMF
Transmitter Type
FP
Receiver Type
PIN
TX Power
 -10 ~ - 3dBm
Receiver Sensitivity
< -18dBm
Power Budget
8dB
Receiver Overload
-3dBm
Power Consumption
1W
Extinction Ratio
>8.2dB
DDM/DOM
Supported
Inbuilt FEC
No
Commercial Temperature Range
 -10 to 70°C (-37 to 158°F)
Protocols
SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5

Certification system

the 2.5g sfp optical module supports digital diagnostic monitoring        the 2.5g sfp optical module supports digital diagnostic monitoring        the 2.5g sfp optical module supports digital diagnostic monitoring        the 2.5g sfp optical module supports digital diagnostic monitoring

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Features

Before shipping, we conduct rigorous product testing, including the testing of 2.5g sfp optical modules, to ensure that every product meets the high quality standards. We are committed to providing the most reliable and highest quality optical fiber communication products, to bring excellent performance and stability to our customers.

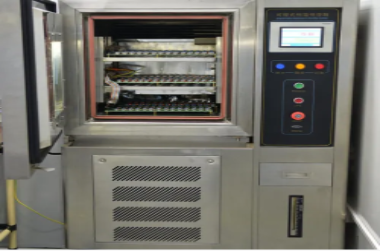

the 2.5g sfp optical module supports digital diagnostic monitoringTest Equipment
the 2.5g sfp optical module supports digital diagnostic monitoringCompatible Test
the 2.5g sfp optical module supports digital diagnostic monitoringQC Test

High Compatibility for all Brands

The company sells a full line of 2.5g SFP optical module optical fiber products compatible with all major brands of equipment.
