3m (3ft) Fiber Patch Cable, 2 Fibers, SC UPC Duplex to SC UPC Duplex, Single Mode (OS2), Riser (OFNR), 2.0mm, Tight-Buffered, Yellow

SC/UPC-SC/UPC SM 9/125 G652D DX 3.0mm LSZH Yellow 3M

A fiber optical patch cord serves as the critical jumper connecting network devices to fiber optic cabling links. Designed with a robust protective outer jacket, it is commonly deployed for connections between optical line terminals (OLTs) and terminal boxes, supporting key applications including fiber optic communication systems, fiber access networks, high-speed data transmission, and enterprise local area networks (LANs).

Product Highlights
*G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
*Precision Zirconia Ferrule Connectors Ensure Low Loss
*Riser (OFNR) Jacket for Vertical and Floor-to-floor Installations
*Color-Coded Cable Jacket for Easy Identification
*Zipcord Reinforced Fiber and Reduces Crimping Risk

Quantity:

Contact Now

add to cart

Fiber Patch Cable, SC UPC to SC UPC, Duplex, 2F, OS2, Riser (OFNR), 3.0mm

OS2 duplex SC to SC patch cord is the enterprise standard for structured cabling and high-density data center deployments. This OS2 duplex SC to SC solution features push-pull SC connectors that enable rapid installation and easy maintenance in network racks. For organizations requiring standardized connectivity, OS2 duplex SC to SC supports 1000BASE-LX and 10GBASE-LR standards with consistent low-loss performance. When deploying OS2 duplex SC to SC in distribution frames, you get reliable single-mode transmission across backbone installations. Choose OS2 duplex SC to SC for corporate campuses, colocation facilities, and telecommunications rooms requiring proven, widely-compatible infrastructure.

Find out more about fiber connector types in our guide.

Specifications

Product Name	Fiber Optical Patch Cord	Brand	Firstoptic
Connector A	SC UPC Duplex	Connector B	SC UPC Duplex
Fiber Count	2 Fibers	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Polarity	A (Tx) to B (Rx)	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	3.0mm	Cable Jacket	Riser (OFNR)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 850 nm	0.36dB/km	Attenuation at 1300 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)

The OS2 duplex SC to SC single-mode patch cord features a hybrid SC/SCduplex interface, distinguished by the following core characteristics:

1.Secure Push-Pull Latching
The SC connector's positive snap-in mechanism ensures stable, vibration-resistant connections—ideal for applications requiring reliable long-term installation. This makes the patch cord dependable in structured cabling environments.

2. Effortless Field Operation
Its push-pull design allows intuitive insertion and removal while maintaining ferrule alignment integrity. This user-friendly operation establishes it as a preferred choice for technicians in various installation settings.

3. Low Insertion Loss Performance
With precision ceramic ferrules and OS2 fiber, it ensures ≤0.3dB insertion loss and ≥40dB return loss—providing a stable foundation for single-mode connectivity in 10G/40G/100G optical links.

4. Clear Duplex Polarity
Color-coded connectors and distinct channel markings prevent connection errors, ensuring optimal reliability in data center and telecommunications networks.

1.Technical Standards & Compatibility

Compliant with industry fiber optic standards including 1000BASE-LX, 10GBASE-LR, and Gigabit Ethernet specifications.
Supports structured cabling systems, data center interconnects, and telecommunications infrastructure requirements.

2.Typical Application Scenarios

Data Center Structured Cabling: Direct connections between SC-port switches, patch panels, and core networking equipment in main distribution areas.
Telecommunications Infrastructure: Deployed in central offices, transmission rooms, and fiber distribution frames where push-pull SC interfaces ensure reliable connectivity.
Enterprise Network Backbones: Serves as standardized cabling for building backbone and horizontal distribution where SC connectors provide consistent performance across network segments.

we offer high quality gigabit lc duplex single mode fiber that can provide customers with fast and reliable network transmission services.

Build a Stable and Robust Optical Fiber Network

High quality tightly buffered cables protect the fiber core and increase the strength and durability of the fiber.

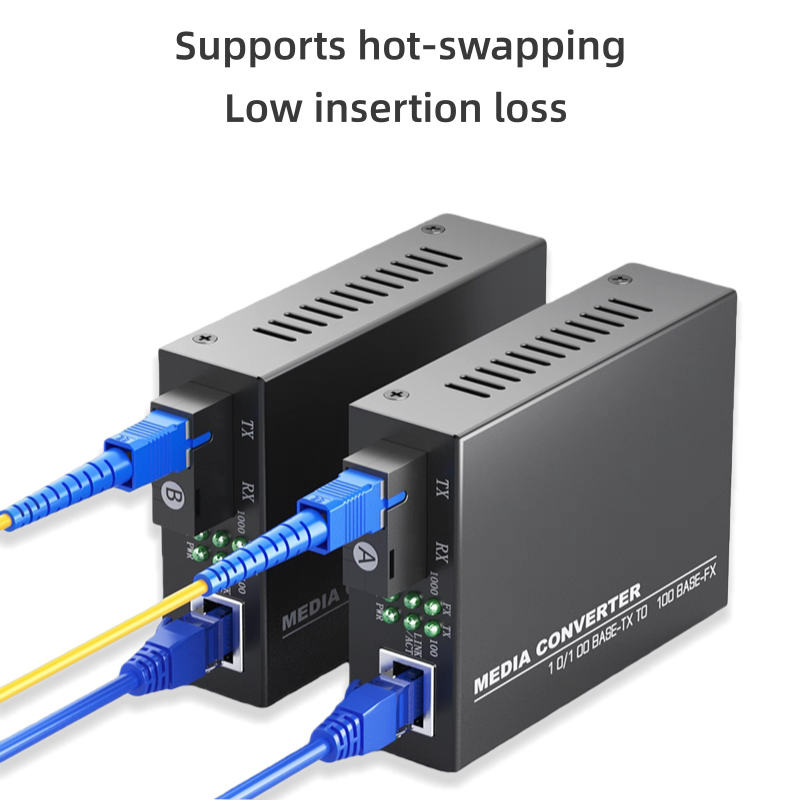

Low insertion loss

high plug‑cycle durability; stable performance (<0.2 dB variation); seamless fiber alignment for reliable interchangeability.

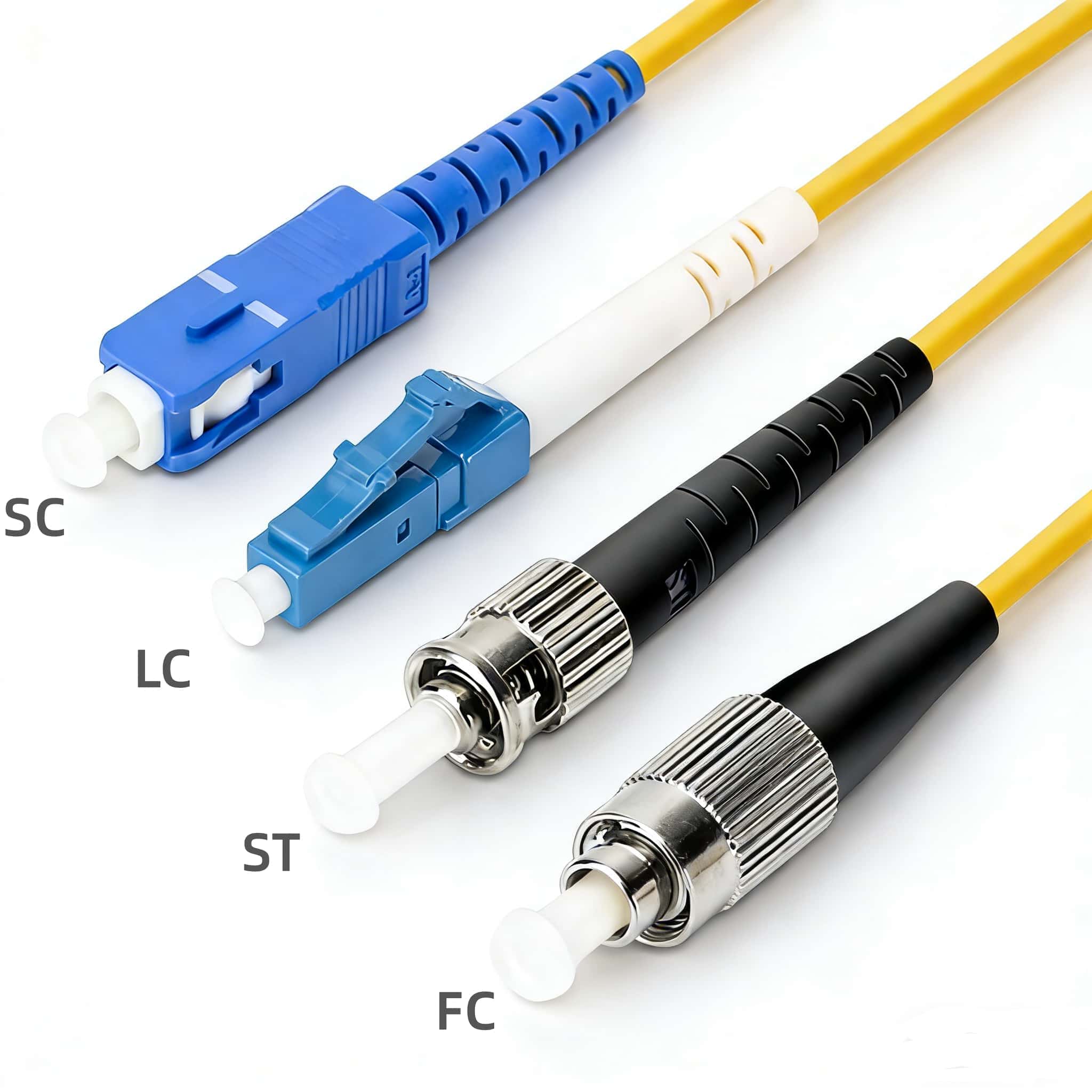

Color-Coded Cable Sheathing for Easy Identification

The sheath color of fiber optical patch cord is usually defined by the fiber type and may vary depending on the mode and performance level.

Standardized Production

Multiple processes, strict screening, quality assurance.

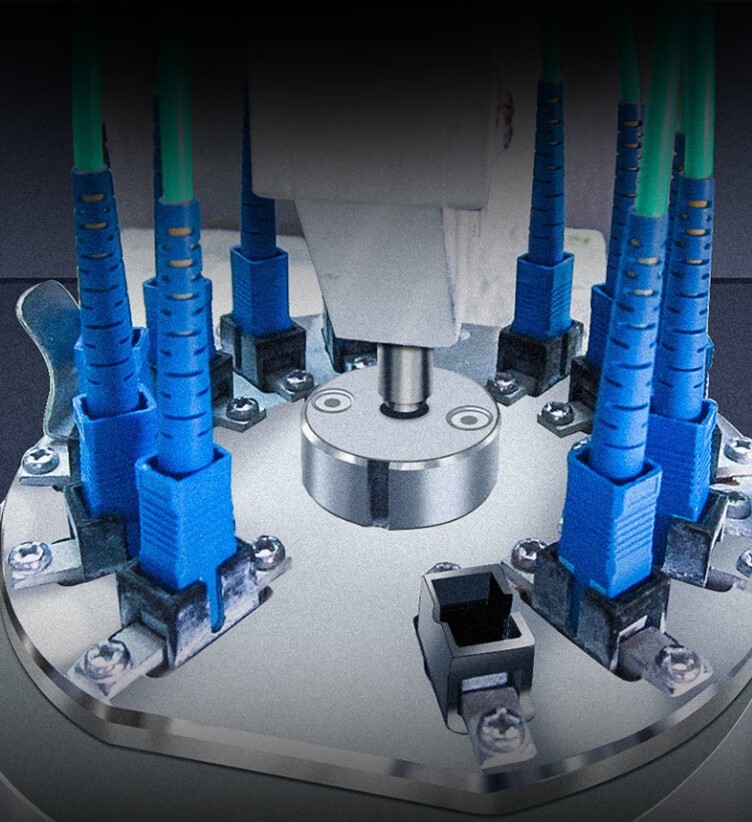

Fine grinding
To ensure that the center of the optical fiber grinding offset, the surface of the optical fiber without defects, the size of the end curvature radius and other technologies meet the standard

Insertion/return loss detection
Insertion loss ≤0.3dB, return loss ≥30dB

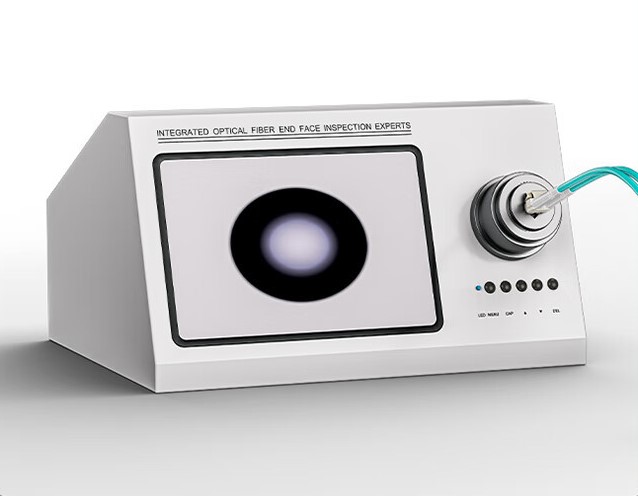

End detection
End geometry test to ensure that the end curvature radius vertex offset, fiber height meets the standard

Meet the Various Installation Requirements

os2 fiber patch cords are used in optical fiber communication room, local area network (LAN), optical fiber data transmission, optical fiber into the home, and so on.

we offer high quality gigabit lc duplex single mode fiber that can provide customers with fast and reliable network transmission services.

Optical fiber communication room Local area network (LAN)

we offer high quality gigabit lc duplex single mode fiber that can provide customers with fast and reliable network transmission services.

Optical fiber data transmission Fiber to the home (FTTH)
