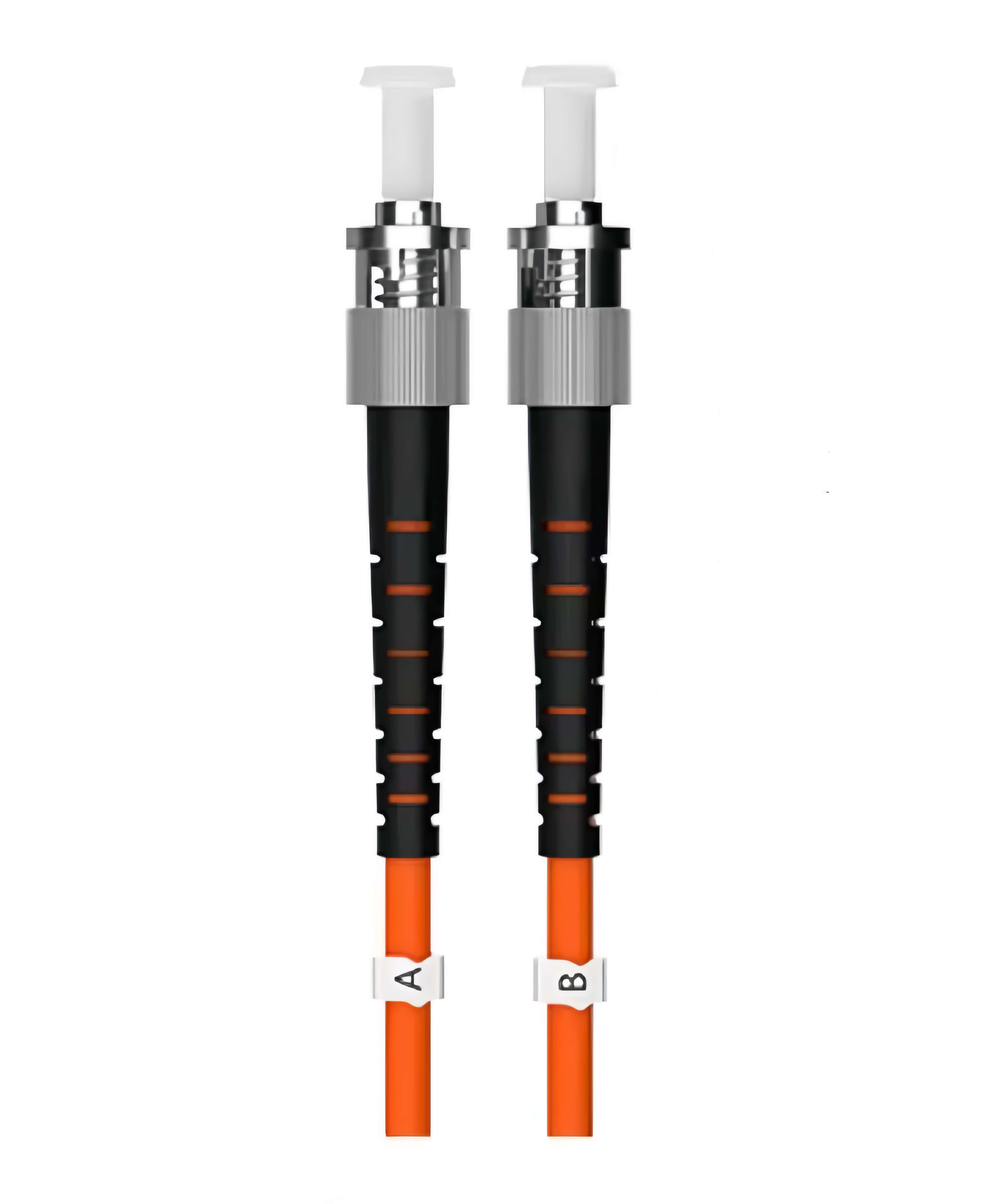

3M Fiber Optical Patch Cord, ST UPC to ST UPC, Duplex, 2 Fibers, Multimode(OM2), Riser (OFNR), 3.0mm, Tight-Buffered, Orange

ST/UPC-ST/UPC MM 50/125 G652D DX 3.0mm LSZH Orange 3M

Fiber optical patch cord is It is used to make a jump wire from the device to the optical fiber wiring link. It has a thick protective layer, which is generally used in the connection between the optical end machine and the terminal box, and is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and local area network.

Product Highlights
*Bend Insensitive Fiber & 7.5mm Min. Bend Radius
*Precision Zirconia Ferrule Connectors Ensure Low Loss
*Riser (OFNR) Jacket for Vertical and Floor-to-floor Installations
*Color-Coded Cable Jacket for Easy Identification
*Zipcord Reinforced Fiber and Reduces Crimping Risk

Quantity:

Contact Now

add to cart

Fiber Patch Cable, ST UPC to ST UPC, Duplex, 2F, OM2, Riser (OFNR), 3.0mm

OM2 ST Duplex Patch Cord provides dependable multimode connectivity for structured cabling and conventional network systems. Compliant with 1000BASE‑SX/10GBASE‑SR standards, this OM2 ST duplex patch cord offers steady performance in campus networks and older telecom deployments. Featuring bayonet‑style ST duplex interfaces, the OM2 ST duplex patch cord creates secure twist‑lock interconnections between networking hardware and patch panels. Designed for legacy cabling and distribution setups, the OM2 ST duplex patch cord preserves strong signal quality over short‑to‑medium ranges, establishing the OM2 ST duplex patch cord as a practical choice for traditional network setups.

Read about different fiber connector types in our guide.

Specifications

Product Name	Fiber Optical Patch Cord	Brand	Firstoptic
Connector A	FC UPC Duplex	Connector B	FC UPC Duplex
Fiber Count	2 Fibers	Fiber Grade	Bend Insensitive
Fiber Mode	OM2 50/125μm	Wavelength	850/1300nm
Polarity	A (Tx) to B (Rx)	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	3.0mm	Cable Jacket	Riser (OFNR)
Min. Bend Radius (Optical Fiber)	7.5mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation at 850 nm	3.5dB/km	Attenuation at 1300 nm	1.5dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)

The OM2 duplex ST to ST multimode patch cable features a uniform ST duplex interface, distinguished by the following core characteristics:

1.Secure Bayonet Locking
The ST connector's bayonet-style locking mechanism ensures stable, twist-to-lock connections—ideal for legacy cabling systems and environments requiring quick, secure mating.

2.Intuitive Field Handling
The bayonet design enables straightforward insertion and locking with a simple quarter-turn, making it a familiar and efficient choice for technicians in campus and traditional network environments.

3.Optimized Multimode Performance
Built with precision ceramic ferrules and OM2 multimode fiber, it delivers consistent low insertion loss, supporting reliable transmission in Gigabit and 10 Gigabit Ethernet applications over short to medium distances.

4.Clear Duplex Polarity
Color-coded connectors and marked channels (TX/RX) prevent connection errors, ensuring reliable performance in structured cabling and traditional network patching scenarios.

1. Technical Standards & Compatibility

Compliant with industry fiber optic standards including 1000BASE-SX, 10GBASE-SR, and Gigabit Ethernet specifications.
Supports OM2 multimode structured cabling systems, campus network interconnects, and traditional telecom infrastructure requirements.

2. Typical Application Scenarios

Campus & Building Networks: Direct connections between ST-port switches, patch panels, and networking equipment, commonly used in multi-building campus environments and legacy enterprise networks.
Educational & Government Facilities: Deployed in data closets and telecom rooms where ST bayonet interfaces provide reliable and familiar connectivity in multimode fiber distribution systems.
Security & Surveillance Systems: Used as standardized cabling for video transmission and security network backbones, delivering consistent performance across facility-wide network segments.

om2 duplex sc to sc multimode patch cable

Build a Stable and Robust Optical Fiber Network

High quality tightly buffered cables protect the fiber core and increase the strength and durability of the fiber.

Low insertion loss

high plug‑cycle durability; stable performance (<0.2 dB variation); seamless fiber alignment for reliable interchangeability.

Color-Coded Cable Sheathing for Easy Identification

The sheath color of fiber optical patch cord is usually defined by the fiber type and may vary depending on the mode and performance level.

Standardized Production

Multiple processes, strict screening, quality assurance.

To ensure that the center of the optical fiber grinding offset, the surface of the optical fiber without defects, the size of the end curvature radius and other technologies meet the standard

Insertion/return loss detection
Insertion loss ≤0.3dB, return loss ≥30dB

End detection
End geometry test to ensure that the end curvature radius vertex offset, fiber height meets the standard

Meet the Various Installation Requirements

OM2 fiber patch cords are used in optical fiber communication room, local area network (LAN), optical fiber data transmission, optical fiber into the home, and so on.

om2 duplex sc to sc multimode patch cable

Optical fiber communication room Local area network (LAN)

om2 duplex sc to sc multimode patch cable

Optical fiber data transmission Fiber to the home (FTTH)
