3M Fiber Optical Patch Cord, LC UPC to SC UPC, Duplex, 2 Fibers, Multimode(OM2), Riser (OFNR), 3.0mm, Tight-Buffered, Orange

LC/UPC-SC/UPC MM 50/125 G652D DX 3.0mm LSZH Orange 3M

Fiber optical patch cords serve as jumpers between network devices and fiber optic cabling. Built with a thick protective jacket, they are widely used for linking optical end devices to terminal boxes, and applied in fiber communication systems, fiber access networks, data transmission, and local area networks.

Product Highlights
*Bend Insensitive Fiber with 7.5mm Minimum Bend Radius
*Precision Zirconia Ferrule Connectors Deliver Reliable Low Loss
*Riser (OFNR) Jacket Ideal for Vertical and Floor-to-Floor Installation
*Color-Coded Cable Jacket for Easy On-Site Identification
*Zipcord Reinforced Fiber Reduces Potential Crimping Risks

Quantity:

Contact Now

add to cart

Fiber Patch Cable, LC UPC to SC UPC, Duplex, 2F, OM2, Riser (OFNR), 3.0mm

OM2 Duplex LC to SC Patch Cord delivers reliable multimode connectivity for enterprise networks and data centers. This OM2 duplex LC to SC solution supports 1000BASE-SX and 10GBASE-SR standards, enabling cost-effective Gigabit and short-distance 10GbE transmission.

Featuring versatile LC to SC interfaces, the OM2 duplex LC to SC patch cable facilitates cross-connections across varied equipment ports. Designed for rack-to-rack and horizontal cabling, this OM2 duplex LC to SC configuration ensures stable performance in demanding short-to-medium distance environments. The robust OM2 duplex LC to SC patch cord maintains signal integrity in building and campus backbones, offering proven adaptability for evolving network infrastructures.

Read about different fiber connector types in our guide.

Specifications

Product Name	Fiber Optical Patch Cord	Brand	Firstoptic
Connector A	LC UPC Duplex	Connector B	SC UPC Duplex
Fiber Count	2 Fibers	Fiber Grade	Bend Insensitive
Fiber Mode	OM2 50/125μm	Wavelength	850/1300nm
Polarity	A (Tx) to B (Rx)	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	3.0mm	Cable Jacket	Riser (OFNR)
Min. Bend Radius (Optical Fiber)	7.5mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation at 850 nm	3.5dB/km	Attenuation at 1300 nm	1.5dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)

The OM2 Duplex LC to SC multimode patch cable features a hybrid LC/SC duplex interface, designed for cost-effective short-distance applications:

1.Compact Design:
The compact LC connector saves space in high-density optical modules and fiber panels, making this OM2 duplex LC to SC patch cable ideal for space-constrained installations.

2.Easy Plug-and-Play:
Featuring a snap-lock design, the OM2 duplex LC to SC patch cable ensures smooth insertion and removal, supporting quick deployment and maintenance in enterprise environments.

3.Low Insertion Loss:
Utilizing precision ceramic ferrules and OM2 multimode fiber, this OM2 duplex LC to SC patch cable delivers stable performance with low insertion loss, supporting reliable Gigabit and 10GbE transmission over short to medium distances.

4.Clear Duplex Marking:
With “TX” (Transmit) and “RX” (Receive) clearly labeled, the OM2 duplex LC to SC patch cable prevents connection errors, ensuring reliable performance in structured cabling systems.

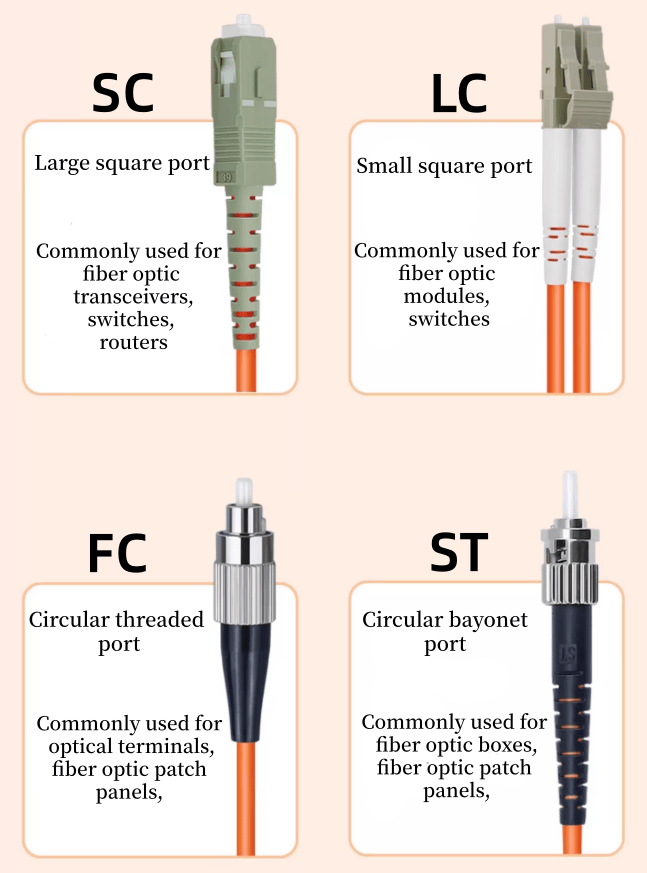

1.Hybrid Interface for Flexible Adaptation

One end: LC Duplex connector – Ultra-compact, high-density design, optimized for top-of-rack switches, routers, and multimode SFP/SFP+ transceivers in data centers.
One end: SC Duplex connector – Features a stable push-pull latching mechanism, commonly used in patch panels and optical distribution frames (ODFs).
Key Feature: This OM2 duplex LC to SC patch cable enables seamless cross-connection between devices with different interface types, supporting flexible patching in enterprise and data center cabling infrastructures.

2.Application Scenarios

Enterprise Network & Data Center Rack Connections: Used to link high-density LC ports on top-of-rack switches to SC ports on fiber distribution panels within the same or adjacent racks.
Telecom Room & Horizontal Cabling: Connects backbone or equipment with SC interfaces to LC-terminated active gear, such as media converters or network switches.
Network Migration & Legacy Integration: Serves as an essential adapter solution for integrating legacy SC-based cabling infrastructure with modern LC-based active equipment, supporting cost-effective upgrades to Gigabit and 10 Gigabit Ethernet.

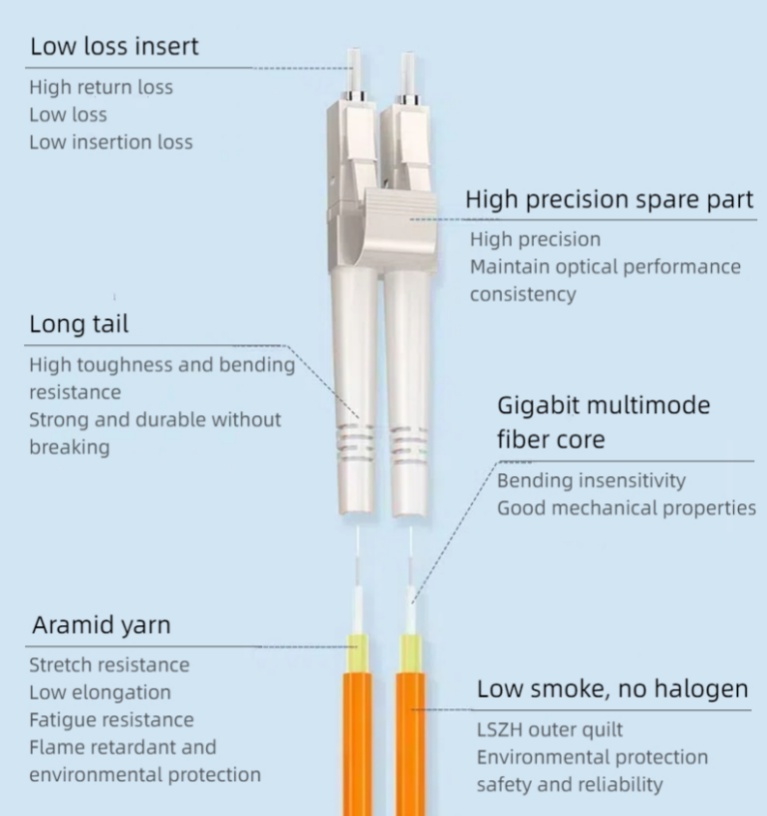

Build a Stable and Robust Optical Fiber Network

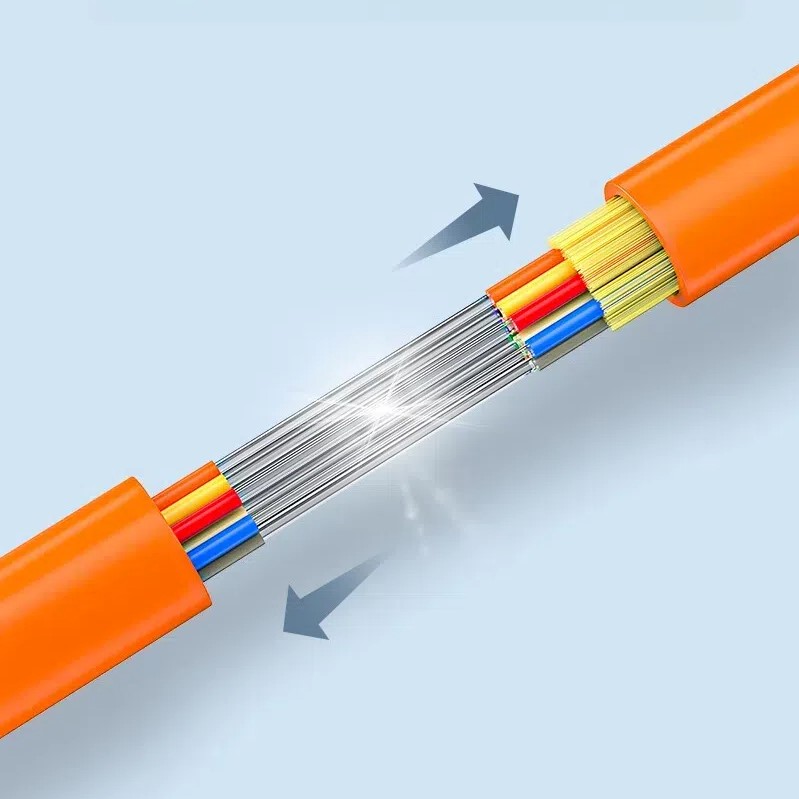

High quality tightly buffered cables protect the fiber core and increase the strength and durability of the fiber.

Color-Coded Cable Sheathing for Easy Identification

Our om2 duplex lc to sc multimode patch cable comes with an orange sheath, the industry standard for OM2 multimode fiber,

simplifying identification in enterprise office and campus networks.

om2 duplex lc to sc multimode patch cable orange color coding

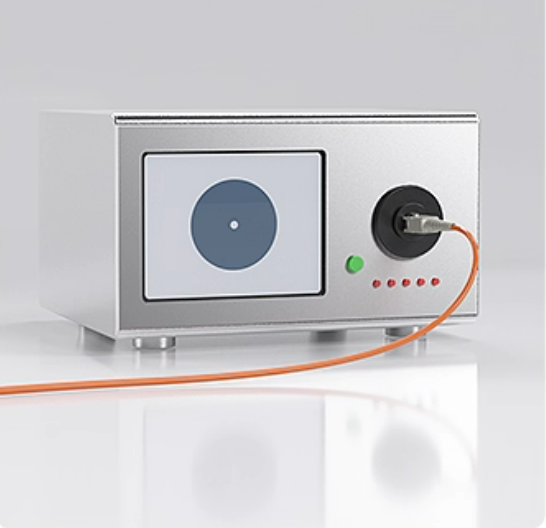

Standardized Production

Each om2 duplex lc to sc multimode patch cable undergoes complete grinding, loss testing and end-face inspection to ensure reliable performance.

om2 duplex lc to sc multimode patch cable production test

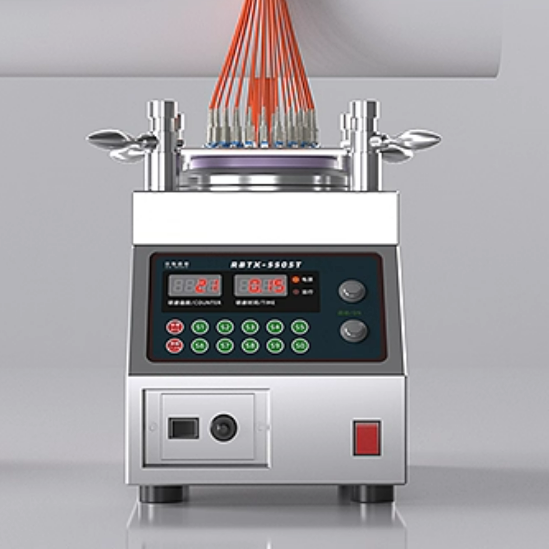

Fine grinding
Precision LC/SC UPC polishing ensures low insertion loss and stable physical connection for multimode network links.

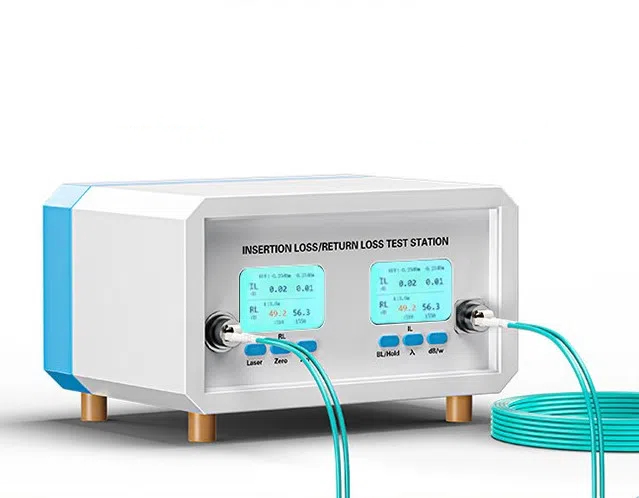

Insertion & Return Loss Test
Loss performance is strictly tested to meet OM2 standards, supporting stable data transmission for campus and office networks.
