3M Fiber Optical Patch Cord, LC UPC to LC UPC, Duplex, 2 Fibers, Multimode(OM2), Riser (OFNR), 3.0mm, Tight-Buffered, Orange

LC/UPC-LC/UPC MM 50/125 G652D DX 3.0mm LSZH Orange 3M

Fiber optical patch cord is It is used to make a jump wire from the device to the optical fiber wiring link. It has a thick protective layer, which is generally used in the connection between the optical end machine and the terminal box, and is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and local area network.

Product Highlights
*Bend Insensitive Fiber & 7.5mm Min. Bend Radius
*Precision Zirconia Ferrule Connectors Ensure Low Loss
*Riser (OFNR) Jacket for Vertical and Floor-to-floor Installations
*Color-Coded Cable Jacket for Easy Identification
*Zipcord Reinforced Fiber and Reduces Crimping Risk

Quantity:

Contact Now

add to cart

Fiber Patch Cable, LC UPC to LC UPC, Duplex, 2F, OM2, Riser (OFNR), 3.0mm

OM2 LC duplex patch cord delivers reliable short-distance gigabit connectivity for data centers and telecom rooms with consistent performance. This OM2 LC duplex patch cord supports 1000BASE-SX and SFP transceivers with cost-effective performance and low insertion loss.

With bend-insensitive fiber, OM2 LC duplex patch cord enables easier installation in high-density environments and tight spaces without performance compromise. Choose OM2 LC duplex patch cord for structured cabling, server rack deployments, and network upgrades. Trust OM2 LC duplex patch cord for optimal compatibility, durable connectivity, and long-term reliability.

Specifications

Product Name	Fiber Optical Patch Cord	Brand	Firstoptic
Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Fiber Count	2 Fibers	Fiber Grade	Bend Insensitive
Fiber Mode	OM2 50/125μm	Wavelength	850/1300nm
Polarity	A (Tx) to B (Rx)	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	3.0mm	Cable Jacket	Riser (OFNR)
Min. Bend Radius (Optical Fiber)	7.5mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)

om2 duplex lc to sc multimode patch cable

The OM2 Duplex LC to LC multimode patch cable features a hybrid LC/LC duplex interface, designed for cost-effective short-distance applications:

1.Compact & Dense Design
Featuring the industry-standard LC duplex connector, this compact patch cable is specifically engineered to maximize port density in modern data centers and high-density network racks. Its small form factor allows for efficient cable management and optimal airflow in confined spaces.

2.Secure Latch Mechanism
The reliable push-pull latching mechanism of the LC duplex connector ensures a stable and secure connection that resists accidental disconnection. This design supports rapid, tool-free deployment and reliable operation in enterprise and data center environments.

3.Low Insertion Loss Performance
Built with precision ceramic ferrules and OM2 multimode fiber (or OS2 single-mode fiber, depending on specification), this LC duplex patch cable delivers stable, high-performance transmission with minimal insertion loss, fully supporting Gigabit and 10 Gigabit Ethernet applications.

4.Clear Duplex Polarity
Clearly labeled “A”/“B” or “1”/“2” duplex ports (or “TX”/“RX” if applicable) help prevent connection polarity errors, ensuring proper channel alignment and simplifying installation and maintenance in structured cabling systems.

1.Technical Standards & Compatibility

Compliant with fiber optic standards including 1000BASE-SX, 10GBASE-SR, Gigabit and 10 Gigabit Ethernet specifications.
Supports OM2, OM3, OM4, and OS2 structured cabling systems in modern data center, enterprise backbone, and high-density network environments.

2.Typical Application Scenarios

Modern Data Centers & Enterprise Networks: Direct connections between servers, switches, and patch panels in high-density racks where LC connectors provide space-efficient and reliable connectivity.
High-Speed Network Infrastructures: Used in 10/40/100GbE environments for short to medium distance transmission within data centers, campuses, and enterprise backbones.
Telecommunications & Cloud Infrastructure: Deployed in central offices and colocation facilities for secure, high-density fiber interconnections in single-mode and multimode systems.

Build a Stable and Robust Optical Fiber Network

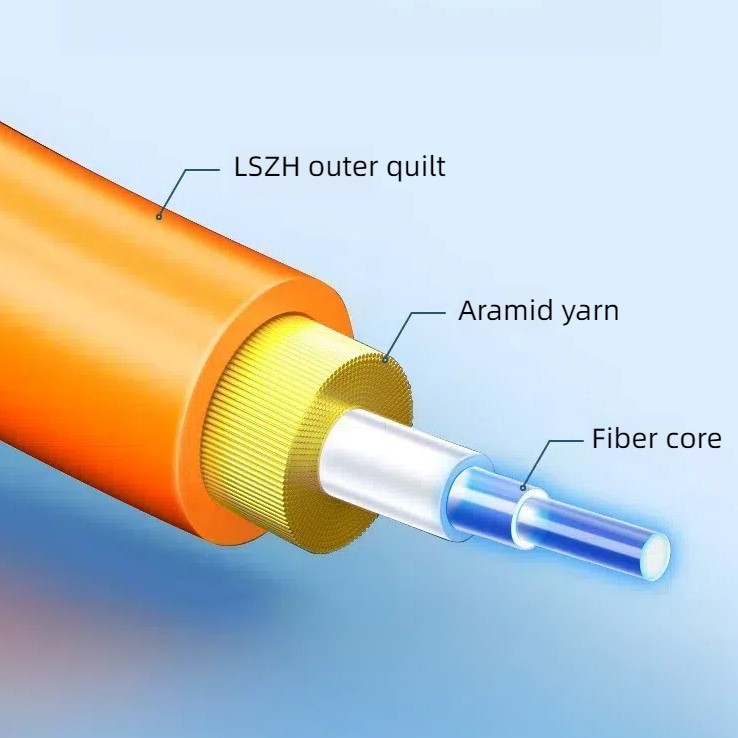

High quality tightly buffered cables protect the fiber core and increase the strength and durability of the fiber.

Color-Coded Cable Sheathing for Easy Identification

The sheath color of fiber optical patch cord is usually defined by the fiber type and may vary depending on the mode and performance level.

Standardized Production

Multiple processes, strict screening, quality assurance.

Fine grinding
To ensure that the center of the optical fiber grinding offset, the surface of the optical fiber without defects, the size of the end curvature radius and other technologies meet the standard

Insertion/return loss detection
Insertion loss ≤0.3dB, return loss ≥30dB

End detection
End geometry test to ensure that the end curvature radius vertex offset, fiber height meets the standard

Meet the Various Installation Requirements

OM2 fiber patch cords are used in optical fiber communication room, local area network (LAN), optical fiber data transmission, optical fiber into the home, and so on.

om2 duplex lc to sc multimode patch cable

Optical fiber communication room Local area network (LAN)

om2 duplex lc to sc multimode patch cable

Optical fiber data transmission Fiber to the home (FTTH)
