1M Fiber Optical Patch Cord, LC UPC to LC UPC, Duplex, 2 Fibers, Multimode(OM2), Riser (OFNR), 3.0mm, Tight-Buffered, Orange

LC/UPC-LC/UPC MM 50/125 G652D DX 3.0mm LSZH Orange 1M

Fiber optical patch cord is It is used to make a jump wire from the device to the optical fiber wiring link. It has a thick protective layer, which is generally used in the connection between the optical end machine and the terminal box, and is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and local area network.

Product Highlights
*Bend Insensitive Fiber & 7.5mm Min. Bend Radius
*Precision Zirconia Ferrule Connectors Ensure Low Loss
*Riser (OFNR) Jacket for Vertical and Floor-to-floor Installations
*Color-Coded Cable Jacket for Easy Identification
*Zipcord Reinforced Fiber and Reduces Crimping Risk

Quantity:

Contact Now

add to cart

Fiber Patch Cable, LC UPC to LC UPC, Duplex, 2F, OM2, Riser (OFNR), 3.0mm

Multimode fiber patch cords provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OM2 multimode fiber patch cord is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.

The bend insensitive multimode fiber patch cord has less attenuation when bent or twisted compared with traditional multimode fiber patch cord and this will make the installation and maintenance more efficient.

Specifications

Product Name	Fiber Optical Patch Cord	Brand	Firstoptic
Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Fiber Count	2 Fibers	Fiber Grade	Bend Insensitive
Fiber Mode	OM2 50/125μm	Wavelength	850/1300nm
Polarity	A (Tx) to B (Rx)	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	3.0mm	Cable Jacket	Riser (OFNR)
Min. Bend Radius (Optical Fiber)	7.5mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)

Gigabit multimode fiber patch cord is a kind of connection cable for data transmission, which connects the light source and the receiver at both ends, and can transmit data at the speed of light.

HCH offers high quality multimode fiber patch cords.

As a manufacturer of multimode fiber patch cords, we have always believed in the concept of"paranoid selection, casting seiko quality", because we know that high-quality materials are the basis for making high-quality products.

Under the guidance of this concept, we choose new materials and adopt high standards of production technology, and strive to provide customers with the best multimode fiber patch cords. Compared with ordinary materials, the new materials we choose have higher strength and better wear resistance, which can effectively prevent the optical fiber from attenuating due to wear and tear during transmission, and fundamentally solve the problems of large attenuation, Internet drop, video lag and so on.

1. Use quality materials
Our gigabit multimode fiber patch cords are made of reliable, high-quality materials, including ceramic plugs, sheathing, optical fibers, and more, to ensure transmission quality and stability.

2. High-speed transmission
Gigabit multimode fiber patch cord has the characteristics of high-speed transmission, can support 1000Mbps data transmission speed, to ensure the immediacy and accuracy of data.

3. Low loss
Our gigabit multimode fiber patch cord uses standard single mode fiber, with low loss characteristics, plug loss does not exceed 0.3dB, to ensure transmission quality and stability.

4. Strong anti-interference performance
Compared to copper cables, gigabit multimode fiber patch cord will not be subjected to external electromagnetic interference and cause signal loss, has good anti-interference performance.

5. Save space
Gigabit multimode fiber patch cord adopts lightweight design, takes up little space and saves installation space.

6. Long life
Our gigabit multimode fiber patch cords are made of wear-resistant, non-aging materials with a long life and a service life of more than 20 years.

Build a Stable and Robust Optical Fiber Network

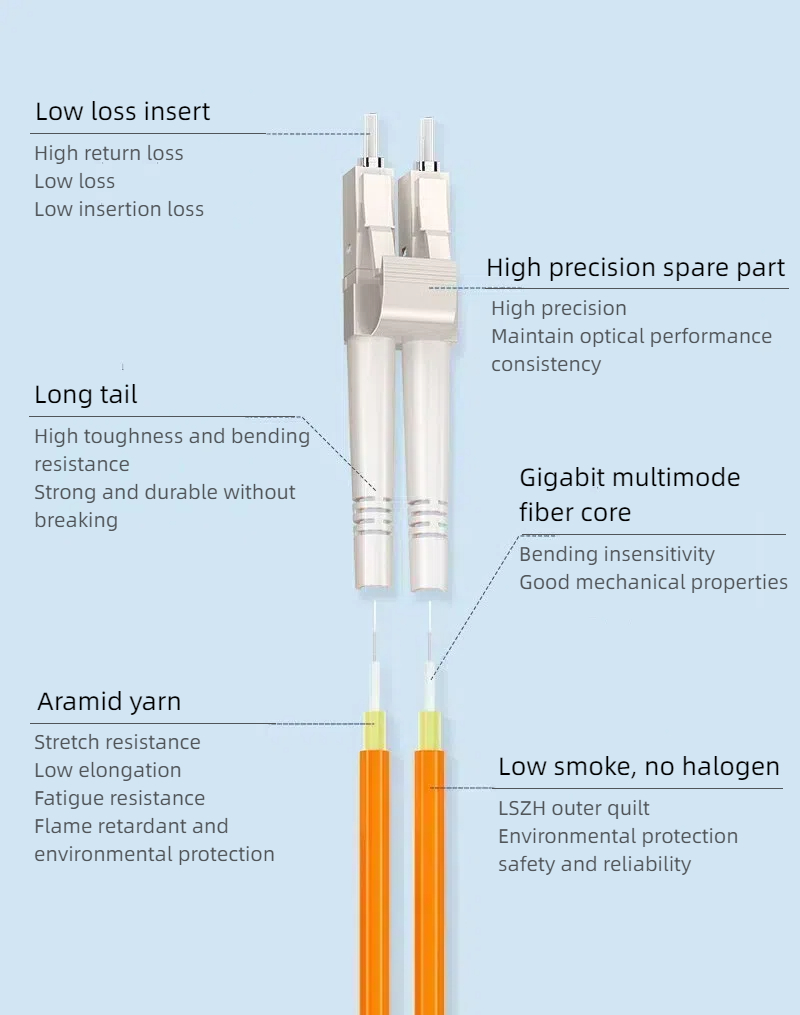

High quality tightly buffered cables protect the fiber core and increase the strength and durability of the fiber.

HCH offers high quality multimode fiber patch cords.

• New ceramic core
Using new high-quality ceramic core, bending is not sensitive, high insertion and removal resistance, good mechanical properties, easy to weld light loss, stable data interchangeability, more stable and reliable performance.

• LSZH outer quilt
Low smoke, no halogen;
Ensure data center security;
Environment-friendly low-smoke halogen-free material cladding;
Long service time, wear resistance, corrosion resistance, environmental protection, no odor.

• Environmentally friendly PVC skin, built-in armor wire ring, soft and flexible.

• Strong and durable, good tensile strength.

Standardized Production

Multiple processes, strict screening, quality assurance.

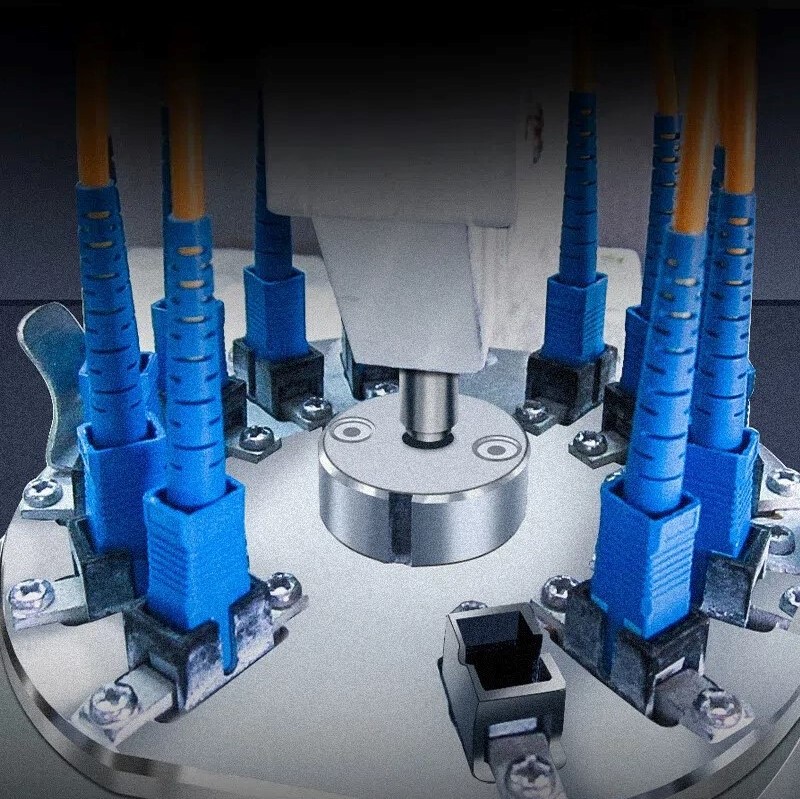

Fine grinding
To ensure that the center of the optical fiber grinding offset, the surface of the optical fiber without defects, the size of the end curvature radius and other technologies meet the standard

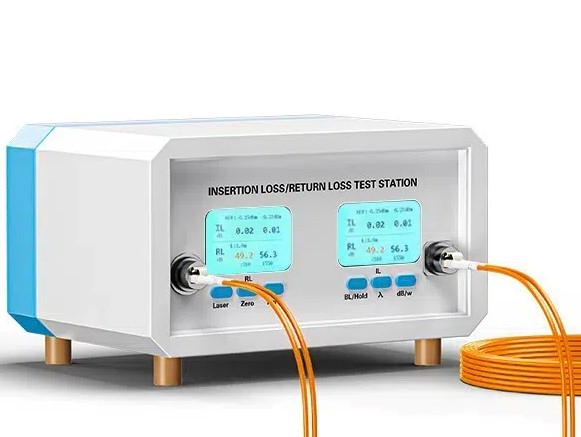

Insertion/return loss detection
Insertion loss ≤0.3dB, return loss ≥30dB

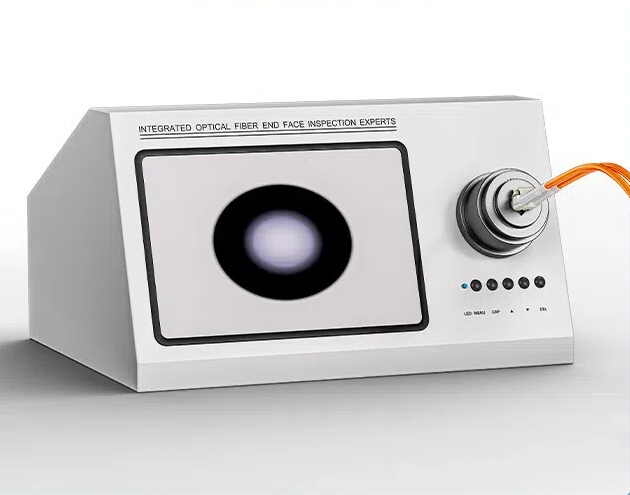

End detection
End geometry test to ensure that the end curvature radius vertex offset, fiber height meets the standard

Multimode fiber patch cord uses the most advanced standard production technology and has undergone multiple rigorous testing processes to ensure its superior performance.

In terms of service life, the multimode fiber patch cord has been plugged and unplugged for 1000+ times, and its performance is still the same as before, without loosening, plugging and unplugging difficulties, and signal interference. This indicates that the design of this multimode fiber patch cord has high stability and durability, which can meet the stability and reliability required by users in continuous plugging and reuse.

All in all, this multimode fiber patch cord uses a series of excellent processes and materials, through strict testing and quality control processes to ensure long-term stability and reliability, can be used for high-quality transmission equipment connection, to bring better user experience.

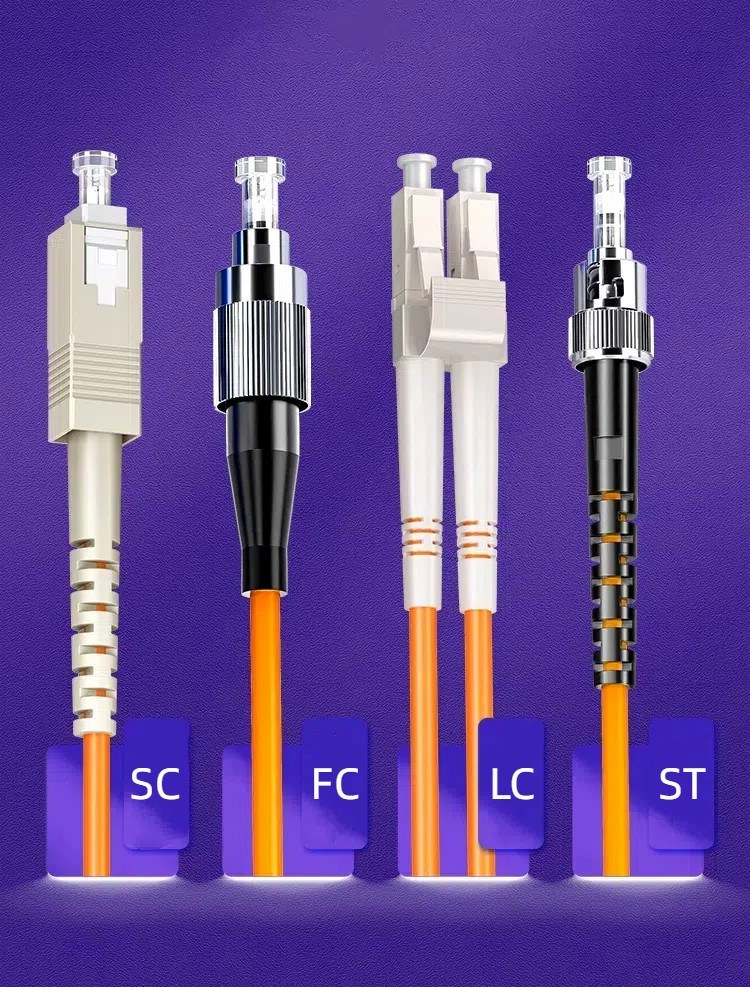

The multimode fiber patch cords supplied by HCH are sold directly from the factory, with no middlemen, which reduces costs and offers more affordable prices. In addition, we support the custom length service, which means that you can customize the desired length of multimode fiber patch cord according to your needs, which not only reduces the problem of over-long tails, but also ensures that the length of wire is just right. You can also choose different types of connectors to meet the interface needs of different brands of equipment.

Therefore, our multimode fiber patch cords have a very high degree of flexibility and customization to meet the different needs of individuals or enterprises.

Color-Coded Cable Sheathing for Easy Identification

The sheath color of fiber optical patch cord is usually defined by the fiber type and may vary depending on the mode and performance level.

Meet the Various Installation Requirements

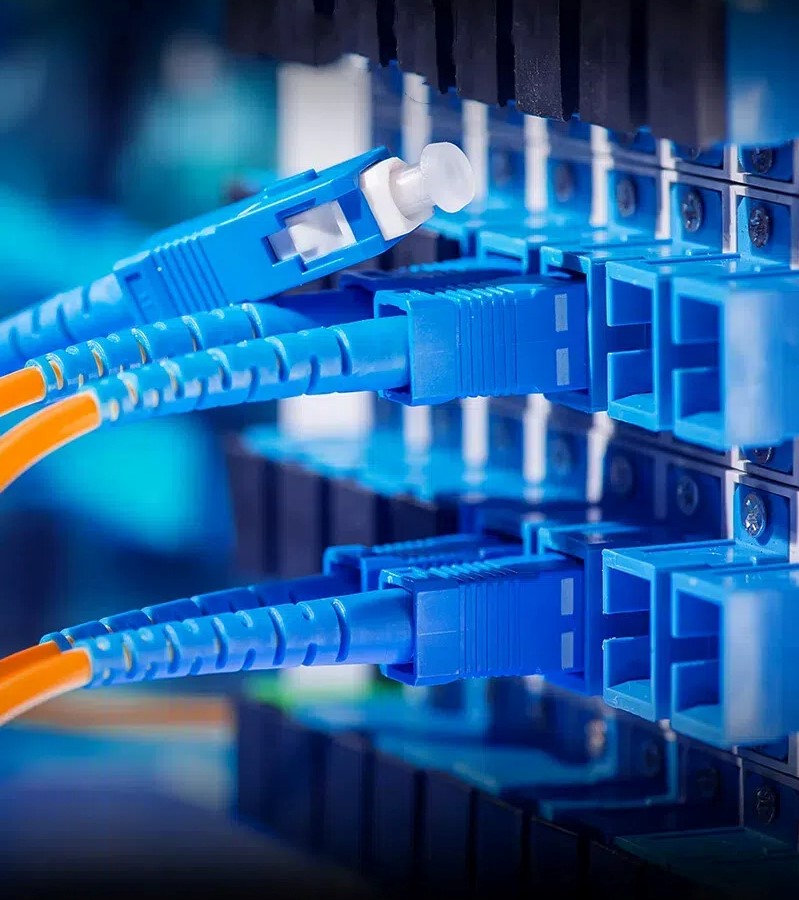

Multimode fiber patch cords are used in optical fiber communication room, local area network (LAN), optical fiber data transmission, optical fiber into the home, and so on.

HCH offers high quality multimode fiber patch cords.

Optical fiber communication room Local area network (LAN)

HCH offers high quality multimode fiber patch cords.

Optical fiber data transmission Fiber to the home (FTTH)
