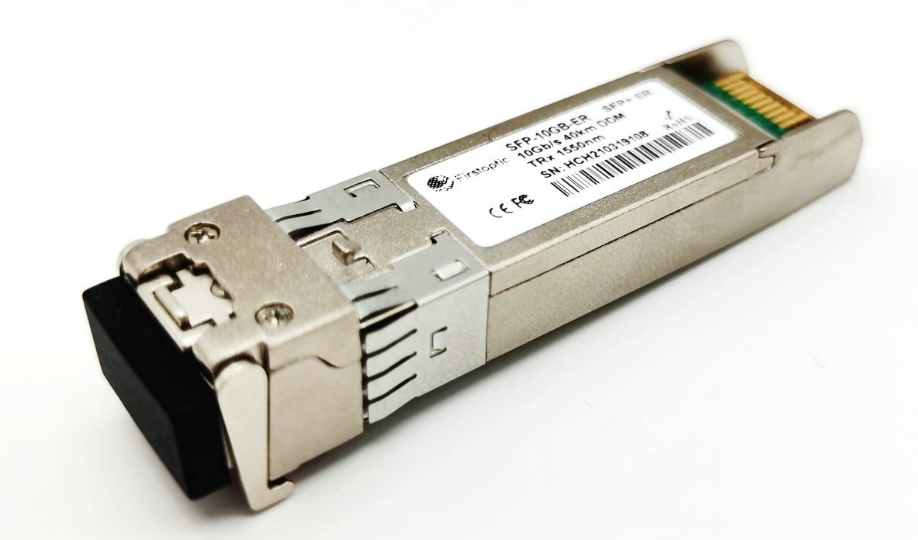

Cisco Compatible SFP+ 10GBASE-ER 1550nm 40km DDM Duplex LC/UPC SMF Optical Transceiver Module
Product Highlights
*Max. Power Consumption 1.5W
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
*Hot Pluggable SFP+ MSA Compliant
*BOX - Support Real-time Configuration
*Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
*TO Package Features High Reliability and Robust Physical Protection
*Class 1 FDA Laser Safety and RoHS Compliant
*IEEE 802.3ae Compliant
Brand Compatible With 10GBASE-ER SFP+ Transceiver Module（SFP+ Double Fiber Single-Mode, 10G, 1550nm, 40km, LC, DDM）
Featuring low power consumption and high speed, this 10 Gigabit SFP module is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Product Details
Data Rate | Module Type | Distance | Wavelength | Interface | Temperature | DDM |
10Gb/s | SFP+ | 40KM | 1550nm | LC | 0~70℃ | Yes |
The SFP-10GB-ER1550 is a high-speed 10 Gigabit SFP module designed for single-mode fiber communication scenarios. The 10 Gigabit SFP module adopts LC interface and 1550nm wavelength, the maximum transmission distance can reach 40km, and has the characteristics of high speed, high density and high reliability.
The 10 Gigabit SFP module uses Class Time of Flight (TOF) measurement technology and is supported by a transistor power amplifier (TIA), providing excellent response time, flexibility and stability. The 10 Gigabit SFP module also features an adaptive differential limiter amplifier (AGC) that automatically adjusts the range of received power to ensure accurate and stable signals.
When using the 10 Gigabit SFP module, note that it complies with the SFP+ MSA standard and can be used interchangeably with other optical modules. However, users should note that the module cannot be directly connected to multimode fiber, as its design and scope of application are single-mode fiber. Therefore, when selecting optical fibers, users should pay special attention to the type of optical fibers that match the 10 Gigabit SFP module.
Use the 10 Gigabit SFP module to benefit from its professional-grade performance. This module comes in a standardized SFP package with excellent compatibility and can work with network equipment from various manufacturers. More conveniently, the module also supports hot swap technology, making network maintenance and upgrading a breeze. Therefore, if you are looking for an efficient 10 Gigabit SFP module, this module is the ideal choice for you.
The 10 Gigabit SFP module also supports Digital Performance Monitoring (DPM) and Digital Diagnostic Monitoring (DDM), which enables fine monitoring of optical signal performance and communication quality during operation. In addition, the 10 Gigabit SFP module also uses a special de-modulation technology to effectively reduce electromagnetic interference and improve the anti-interference ability of the entire transmission system.
Specifications
Model number | SFP-10GB-ER | Brand | Firstoptic |
Form Factor | SFP+ | Max. Data Rate | 11.3Gbps |
Wavelength | 1550nm | Max. Cable Distance | |
Connector | Duplex LC | Media | SMF |
Optical Components | EML | DDM Support | Yes |
TX Power | -1~4dBm | Receiver Sensitivity | <-16dBm |
Core Size | 9/125μm | Modulation | NRZ |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
Certification system
Features
Test Equipment
Compatible Test
QC TestHigh Compatibility for all Brands
