Cisco Compatible SFP+ 10GBASE-SR 850nm 300m DDM Duplex LC/UPC MMF Optical Transceiver Module
SFP-10GB-SR
SFP-10G-SR is a high-speed network module based on optical fiber transmission, which is suitable for short distance data transmission. It follows the standards of IEEE 802.3ae, SFF-8472, SFF-8431, etc., which uses multimode fiber as the main transmission medium and can support transmission up to 300 meters at a distance. In addition, the SFP-10G-SR optical module supports Ethernet protocols, making it compatible with existing network devices without updating the entire network architecture.
Product Highlights
*Max. Power Consumption 1W, and TO Packaging Features High Reliability
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
*Small 10G Form Factor for Greatest Density per Chassis
*Support 4x10G Fan out and Easy Migration to 40G Platforms
*BOX - Support Real-time Configuration
*Hot Pluggable SFP+ MSA and RoHS Compliant
*Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
*Digital optical monitoring capability for strong diagnostic capabilities
Product Highlights
*Max. Power Consumption 1W, and TO Packaging Features High Reliability
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
*Small 10G Form Factor for Greatest Density per Chassis
*Support 4x10G Fan out and Easy Migration to 40G Platforms
*BOX - Support Real-time Configuration
*Hot Pluggable SFP+ MSA and RoHS Compliant
*Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
*Digital optical monitoring capability for strong diagnostic capabilities
Quantity:
Brand Compatible With 10GBASE-SR SFP+ Transceiver Module（SFP+ Double Fiber Multimode, 10G, 850nm, 300m, LC, DDM）
Cisco compatible SFP+ optical module supports up to 300m link lengths over multimode fiber (MMF) using a wavelength of 850nm via an LC connector. Each 10G SFP multimode optical module is individually tested to be used on a series of Cisco switches,routers,servers,network interface card (NICs) etc.
Featuring low power consumption and high speed, this 10G SFP multimode optical module is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Featuring low power consumption and high speed, this 10G SFP multimode optical module is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Product Details
Part Number：SFP-10GB-SR
Description：SFP+ optical module dual-fiber multimode, 10G, 3.3V, LC, working temperature 0~70℃, 850nm, 300M, DDM
Compatible with：H3C, HW, Cisco, HP, etc
Data Rate | Module Type | Distance | Wavelength | Interface | Temperature | DDM |
10Gb/s | SFP+ | 300M | 850nm | LC | 0~70℃ | Yes |

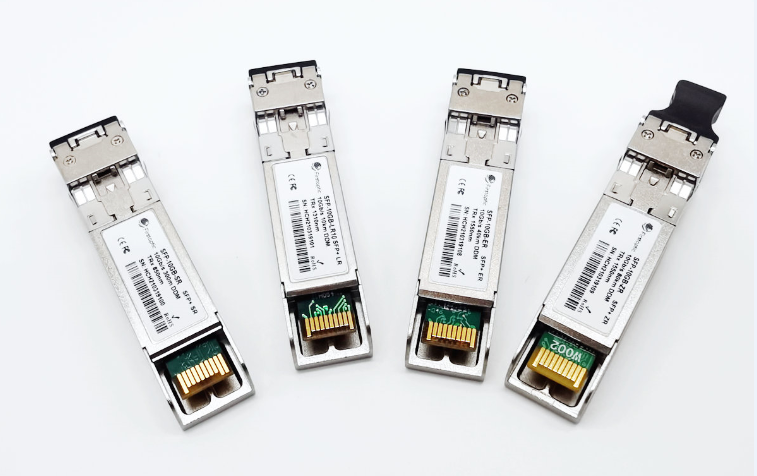

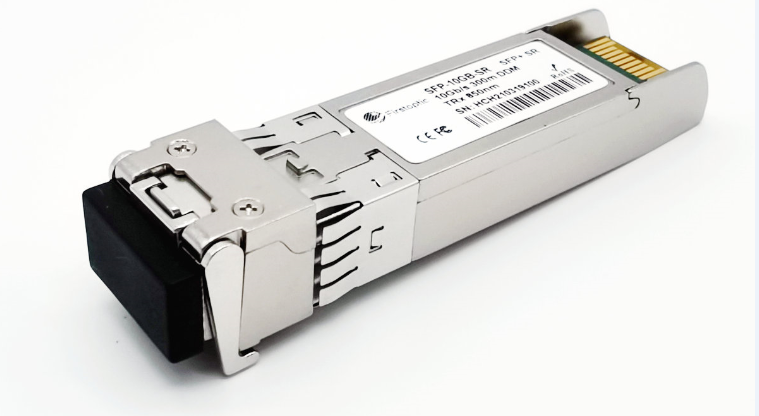

The 10-Gigabit multimode SFP-10GB-SR is a high-speed data transmission module, or 10G SFP multimode optical module, for multimode fiber applications. Using an LC/UPC optical interface and 850 nm VCSEL light source, the 10G SFP multimode product supports a maximum transmission distance of 300 meters, while offering high speed, high reliability and high density. In various occasions, this 10G SFP multimode optical module is widely used in data centers, enterprise networks, telecommunications networks and other fields.
The 10G SFP multimode optical module uses a wide range of protocols and can support a variety of applications such as 10G Ethernet, SONET OC-192, SDH STM-64, and Fibre Channel. 10G SFP multimode is also an integral part of a variety of network devices, such as servers, storage devices, switches, routers, and fiber optic converters. Whether in a data center or enterprise network, the 10G SFP multimode optical module has a wide range of applicability and can meet a variety of application requirements.
The product also supports the hot-swap function, and the position of the 10G SFP multimode optical module can be replaced or adjusted at any time, which greatly facilitates the work of network administrators.
In addition, the 10G SFP multimode also has digital diagnostics and physical layer encoding/decoding capabilities. Each 10G SFP multimode has a separate serial number, feature, and diagnostic memory memory, allowing users to monitor, manage, and feedback on module reliability and performance through the SDM (Sequence Number Read, Query, Write, and Identifier) interface in the network. In addition, the use of physical layer coding technology can ensure that transmission errors such as code errors are avoided during sending and receiving, further improving the performance and reliability of 10G SFP multimode in high-speed data transmission.
In short, 10G SFP multimode is a high-performance fiber optic communication module that is an integral part of improving enterprise network performance and data center efficiency. Whether it's a dense crossover, network aggregation or multipath switch connection in a data center, or a high-performance computer in a data communications and storage system, the 10G SFP multimode optical module meets your needs.
Specifications
Model number | SFP-10GB-SR | Brand | Firstoptic |
Form Factor | SFP+ | Max. Data Rate | 10.3125Gbps |
Wavelength | 850nm | Max. Cable Distance | 300m@OM3/400m@OM4 |
Connector | Duplex LC | Media | MMF |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -7.3 ~ - 1dBm | Receiver Sensitivity | < -11.1dBm |
Power Budget | 3.8dB | Receiver Overload | -1dBm |
Typical Power Consumption | ≤1w | Extinction Ratio | >3dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Core Size | 50/125µm | Modulation | NRZ |
Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432,SFP+ MSA Compliant, CPRI, eCPRI | Warranty | 3 Years |
Certification system
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features
Before shipping, we conduct rigorous product testing, including the testing of 10G SFP multimode optical modules, to ensure that every product meets the high quality standards. We are committed to providing the most reliable and highest quality optical fiber communication products, to bring excellent performance and stability to our customers.
Test Equipment
Compatible Test
QC TestHigh Compatibility for all Brands
The company sells a full line of SFP+ optical module optical fiber products compatible with all major brands of equipment.
