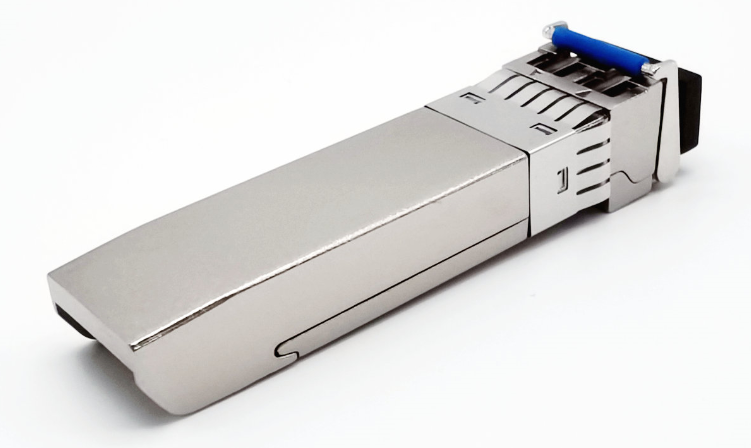

Cisco Compatible SFP+ 10GBASE-LRM 1310nm 2km DDM Duplex LC/UPC SMF Optical Transceiver Module
SFP-10GB-LR2
SFP-10GB-LR2 is a high-speed network module based on optical fiber transmission, which has the characteristics of high speed, large capacity and long distance transmission. It uses single-mode optical fiber as the transmission medium and has a distance of up to 2KM. In addition, the SFP-10GB-LR2 optical module supports Ethernet protocols and can be compatible with existing network devices without updating the entire network architecture.
Product Highlights
*Max. Power Consumption 1W
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
*Hot Pluggable SFP+ MSA Compliant
*BOX - Support Real-time Configuration
*Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
*TO Package Features High Reliability and Robust Physical Protection
*Class 1 FDA Laser Safety and RoHS Compliant
*IEEE 802.3ae Compliant
Product Highlights
*Max. Power Consumption 1W
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
*Hot Pluggable SFP+ MSA Compliant
*BOX - Support Real-time Configuration
*Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
*TO Package Features High Reliability and Robust Physical Protection
*Class 1 FDA Laser Safety and RoHS Compliant
*IEEE 802.3ae Compliant
Quantity:
Brand Compatible With 10GBASE-LRM SFP+ Transceiver Module（SFP+ Double Fiber Single-Mode, 10G, 1310nm, 2km, LC, DDM）
Cisco compatible 10G SFP fiber optical module supports up to 2km link lengths over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. Each 10G SFP fiber optical module is individually tested to be used on a series of Cisco switches,routers,servers,network interface card (NICs) etc.
Featuring low power consumption and high speed, this 10G SFP fiber optical module is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Featuring low power consumption and high speed, this 10G SFP fiber optical module is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Product Details
Part Number：SFP-10GB-LR2
Description：SFP+ optical module dual-fiber multimode, 10G, 3.3V, LC, working temperature 0~70℃, 1310nm, 2KM, DDM
Compatible with：H3C, HW, Cisco, HP, etc
Data Rate | Module Type | Distance | Wavelength | Interface | Temperature | DDM |
10Gb/s | SFP+ | 2KM | 1310nm | LC | 0~70℃ | Yes |
The SFP-10GB-LR2 is a high-speed 10G SFP fiber optical module designed for single-mode fiber communication scenarios. The 10G SFP fiber optical module adopts LC interface and 1310nm wavelength, the maximum transmission distance can reach 2 km, and has the characteristics of high speed, high density and high reliability.
10G SFP fiber optical module can not only achieve a variety of application scenarios and protocol range, such as 10G Ethernet, SONET OC-192, SDH STM-64, etc., but also widely used in servers, switches, routers, storage devices and other network equipment. In addition, the 10G SFP fiber optical module also uses digital diagnostic monitoring technology, which can monitor and control the temperature, voltage and optical performance of the module in real time, improve the reliability and stability of the network, and bring superior network experience to the users of network equipment.
The product also supports the hot-swap function, and the position of the 10G SFP fiber optical module can be replaced or adjusted at any time, which greatly facilitates the work of network administrators.
In addition, the 10G SFP fiber optical module also has digital diagnostics and physical layer encoding/decoding capabilities. Each 10G SFP fiber optical module has a separate serial number, feature, and diagnostic memory memory, allowing users to monitor, manage, and feedback on module reliability and performance through the SDM (Sequence Number Read, Query, Write, and Identifier) interface in the network. In addition, the use of physical layer coding technology can ensure that transmission errors such as code errors are avoided during sending and receiving, further improving the performance and reliability of 10G SFP fiber optical module in high-speed data transmission.
Specifications
Part Number | SFP-10GB-LR2 | Brand | Firstoptic |
Form Factor | SFP+ | Max. Data Rate | 10Gbps |
Wavelength | 1310nm | Max. Cable Distance | 2km |
Connector | Duplex LC | Optical Components | FP 1310nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
Media | SMF | DDM Support | YES |
TX Power | -8.2~0.5dBm | Receiver Sensitivity | <-12.6dBm |
Typical Power Consumption | <1W | Receiver Overload | +1.5dBm |
Core Size | 50/125µm@OM3 MMF, 9/125μm@SMF | Modulation | NRZ |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
Certification system
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features
Before shipping, we conduct rigorous product testing, including the testing of 10G SFP fiber optical modules, to ensure that every product meets the high quality standards. We are committed to providing the most reliable and highest quality optical fiber communication products, to bring excellent performance and stability to our customers.
Test Equipment
Compatible Test
QC TestHigh Compatibility for all Brands

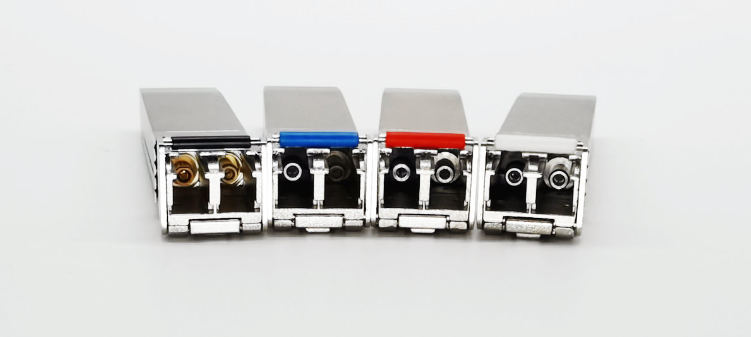

The company sells a full line of SFP+ optical module products compatible with all major brands of equipment.
