3M Fiber Optical Patch Cord, LC UPC to SC UPC, Simplex, 1 Fiber, Single Mode(OS2), Riser (OFNR), 2.0mm, Tight-Buffered, Yellow

LC/UPC-SC/UPC SM 9/125 G652D SX 2.0mm LSZH Yellow 3M

Fiber optical patch cord is It is used to make a jump wire from the device to the optical fiber wiring link. It has a thick protective layer, which is generally used in the connection between the optical end machine and the terminal box, and is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and local area network.

Product Highlights
*G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
*Precision Zirconia Ferrule Connectors Ensure Low Loss
*Riser (OFNR) Jacket for Vertical and Floor-to-floor Installations
*Color-Coded Cable Jacket for Easy Identification
*Ideal for Unidirectional Data Transmission

Quantity:

Contact Now

add to cart

Fiber Patch Cable, LC UPC to SC UPC, Simplex, 1F, OS2, Riser (OFNR), 2.0mm

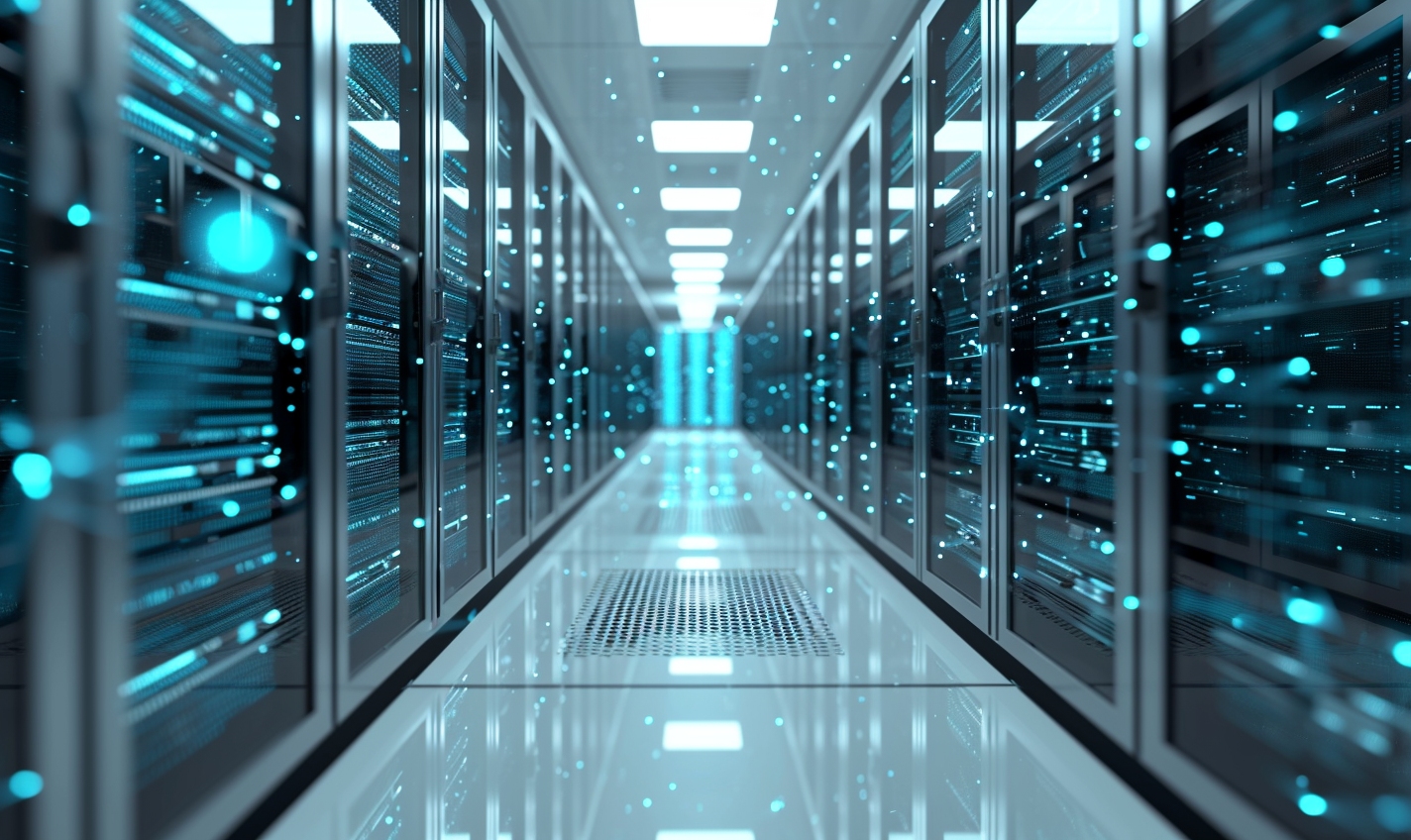

OS2 simplex LC to SC patch cable is designed for high-density data center environments where space optimization and interface conversion are critical. This OS2 simplex LC to SC solution enables seamless cross-connections between LC-port equipment and SC-port infrastructure.For point-to-point transmission requirements, OS2 simplex LC to SC supports 1G to 10G standards with low-loss performance over extended distances. When deploying this OS2 simplex LC to SC patch cord in telecom rooms, you get reliable single-mode connectivity.

Choose OS2 simplex LC to SC for data center cross-connects, telecommunications facilities, and high-density patching environments demanding flexible interface conversion.

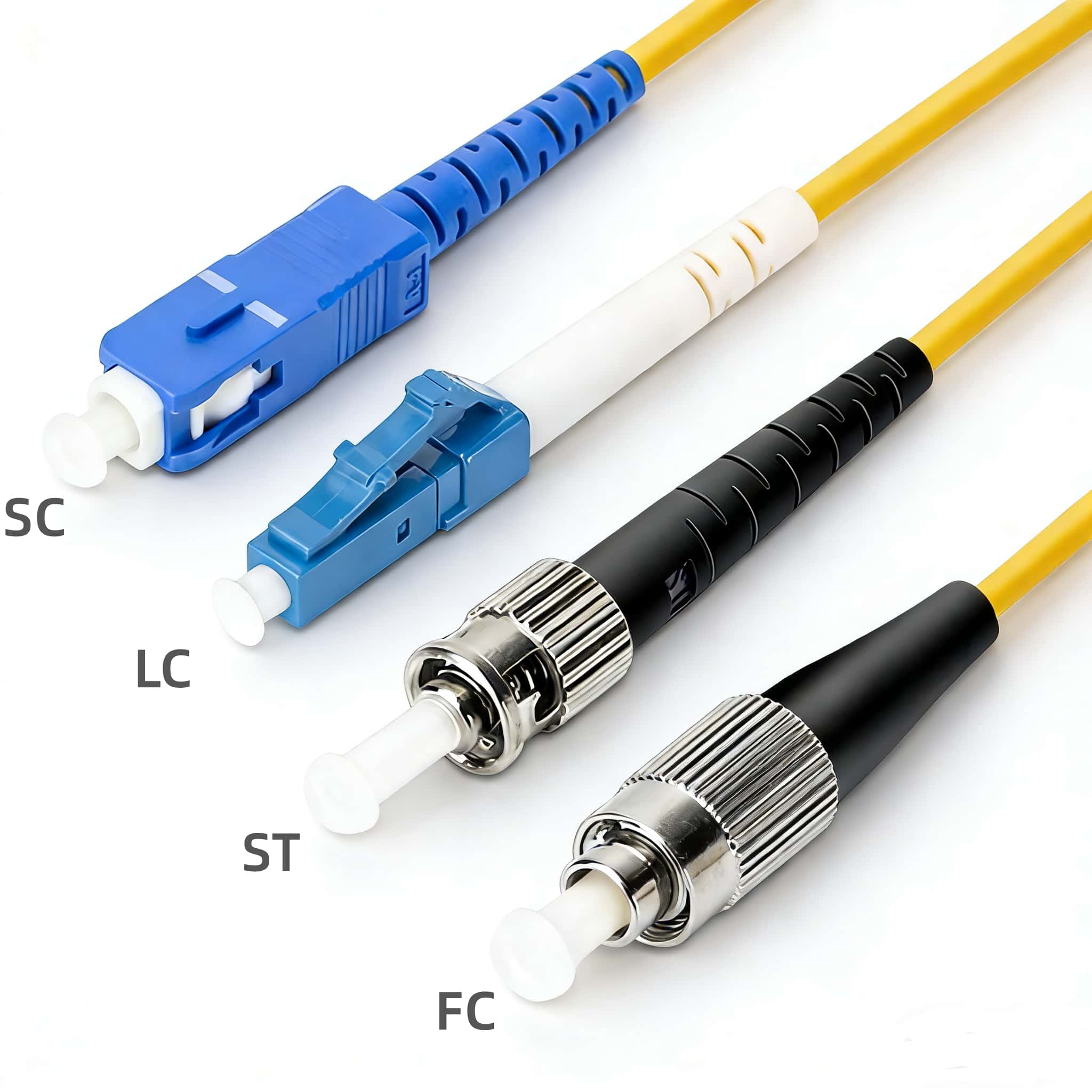

Learn more about fiber connector types in our guide.

Specifications

Product Name	Fiber Optical Patch Cord	Brand	Firstoptic
Connector A	LC UPC Simplex	Connector B	SC UPC Simplex
Fiber Count	1 Fiber	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	Riser (OFNR)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)

we offer high quality simplex lc fiber patch cable that can provide customers with fast and reliable network transmission services.

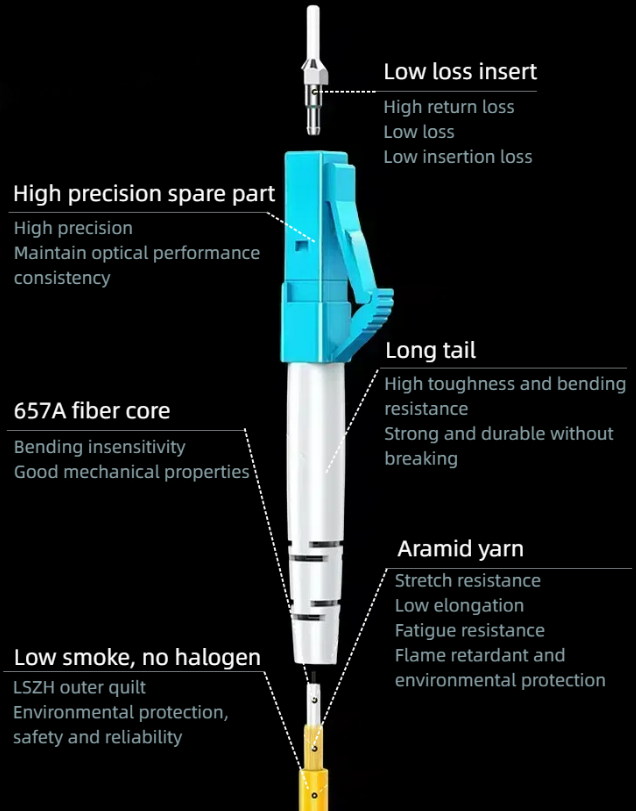

The OS2 simplex LC to SC single-mode patch cord features a uniform LC/SC simplex interface, designed for point-to-point single-fiber applications with these key characteristics:

1. Hybrid Interface Retention
The LC connector's compact latch and SC connector's push-pull mechanism combine to ensure reliable mixed-interface connections, making this patch cord dependable for signal transmission between modern and legacy optical systems.

2. Cross-Platform Simplex Operation
Its dual-interface design enables precise fiber connection between LC-based active equipment and SC-based infrastructure while maintaining ferrule alignment, establishing it as an efficient choice for hybrid network installations.

3. Low Insertion Loss Performance
With precision ceramic ferrules and OS2 single-mode fiber, it ensures ≤0.3dB insertion loss and ≥40dB return loss, providing reliable connectivity for 1G/10G/25G applications in mixed-interface network environments.

4. Clear Hybrid Interface Identification
Standardized connector bodies with distinct interface markings prevent installation errors, ensuring optimal reliability in cross-platform data transmission links and telecommunications access networks.

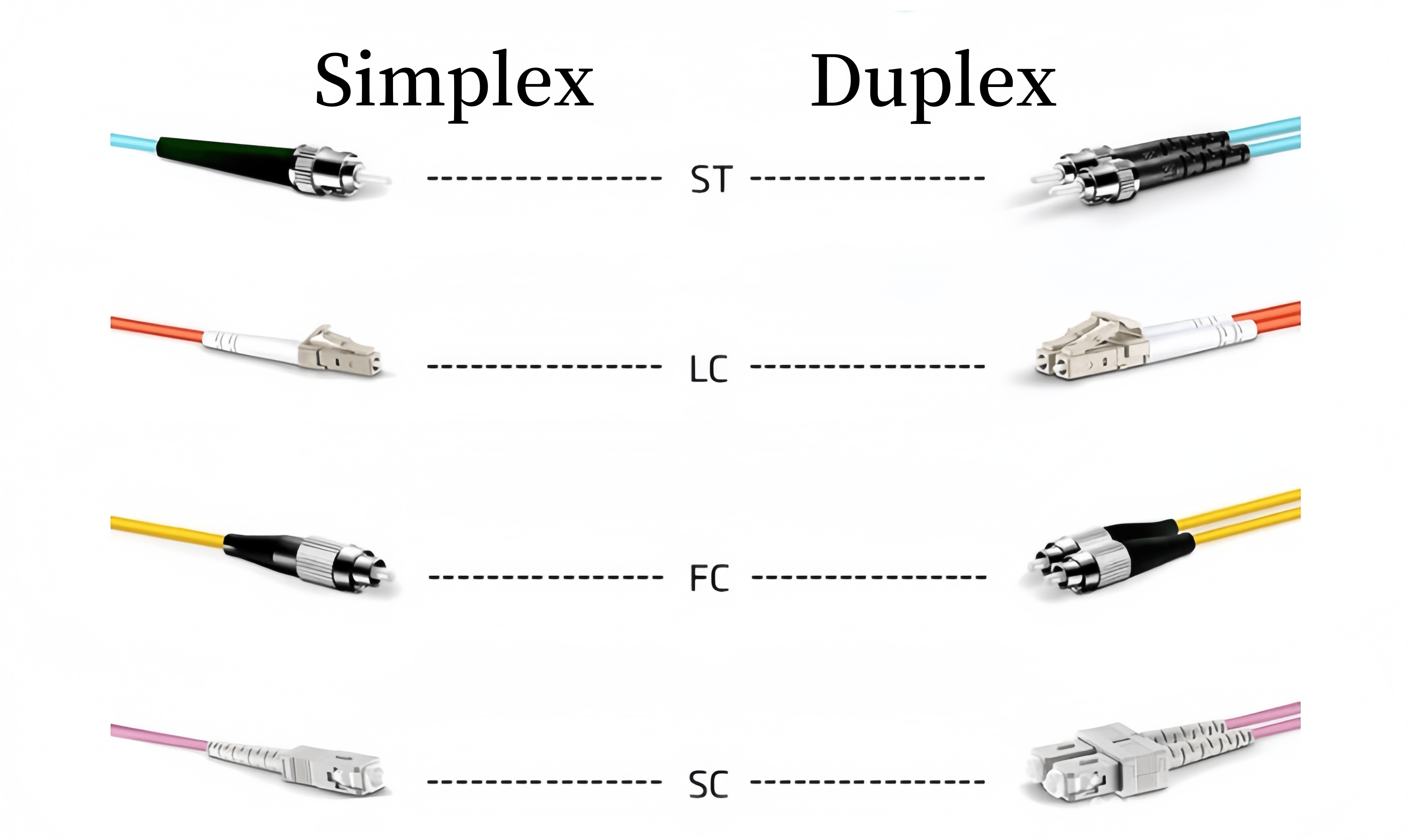

1. Hybrid Interface for Flexible Adaptation

One end: LC Simplex connector – Compact, single-fiber design ideal for modern BiDi transceivers, media converters, and high-density network equipment.
One end: SC Simplex connector – Features a push-pull latching mechanism for stable, reliable single-fiber connections, commonly used in legacy transmission equipment and optical distribution frames.
Key Feature: Enables seamless single-fiber integration between equipment with different interface types, supporting flexible interface conversion in access networks and mixed infrastructure.

2. Typical Application Scenarios

Single-Fiber Bidirectional Links: Used to connect LC-port BiDi transceivers to SC-port OLTs/ONUs or media converters in FTTx and enterprise networks.
Legacy to Modern Interface Conversion: Connects SC-simplex legacy equipment (e.g., older switches, converters) to LC-simplex modern active devices without replacing the entire fiber plant.
Fiber Conservation & Migration: Serves as an essential adapter for single-fiber applicationswhere existing SC-based infrastructure needs to interface with newer LC-based systems, optimizing fiber utilization during network upgrades.

Build a Stable and Robust Optical Fiber Network

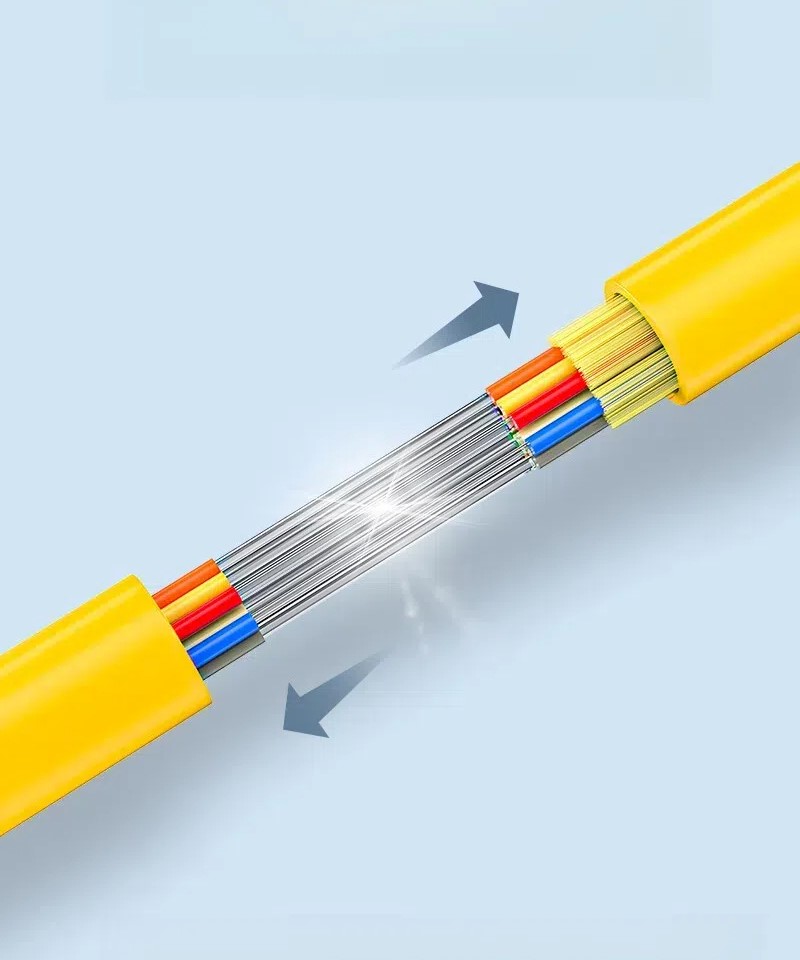

High quality tightly buffered cables protect the fiber core and increase the strength and durability of the fiber.

we offer high quality simplex lc fiber patch cable that can provide customers with fast and reliable network transmission services.

Low insertion loss

high plug‑cycle durability; stable performance (<0.2 dB variation); seamless fiber alignment for reliable interchangeability.

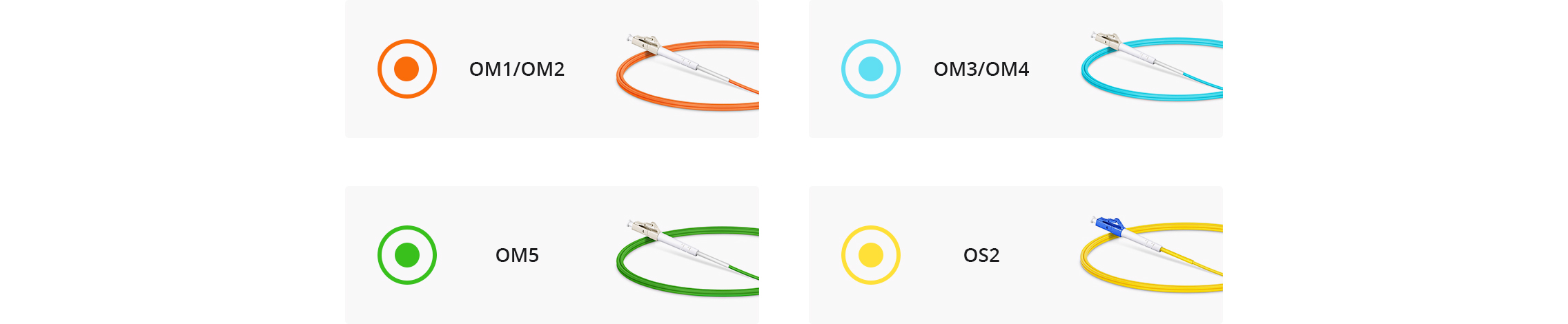

Color-Coded Cable Sheathing for Easy Identification

The sheath color of fiber optical patch cord is usually defined by the fiber type and may vary depending on the mode and performance level.

Standardized Production

Multiple processes, strict screening, quality assurance.

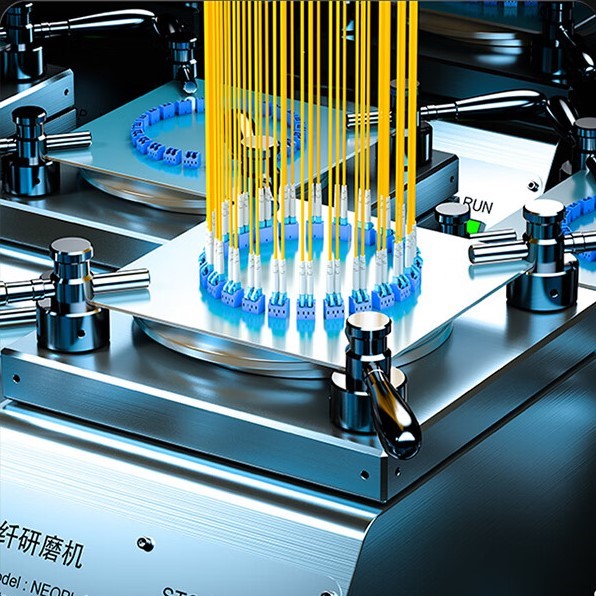

Fine grinding
To ensure that the center of the optical fiber grinding offset, the surface of the optical fiber without defects, the size of the end curvature radius and other technologies meet the standard

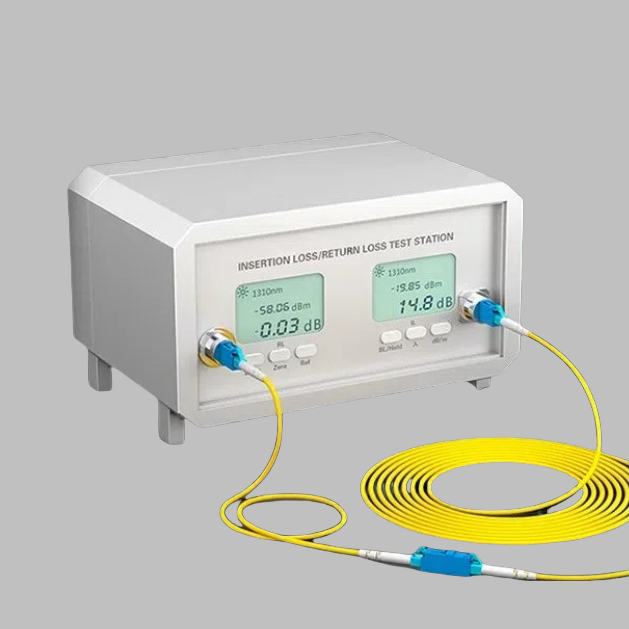

Insertion/return loss detection
Insertion loss ≤0.3dB, return loss ≥50dB

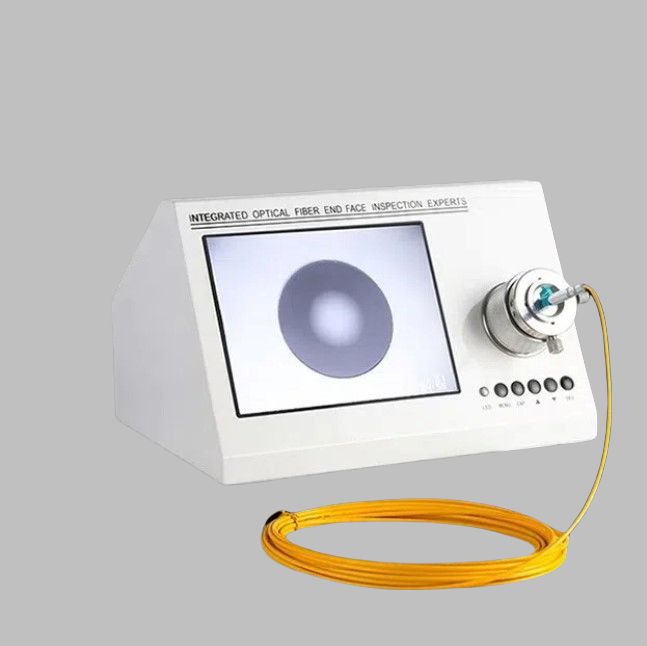

End detection
End geometry test to ensure that the end curvature radius vertex offset, fiber height meets the standard

Meet the Various Installation Requirements

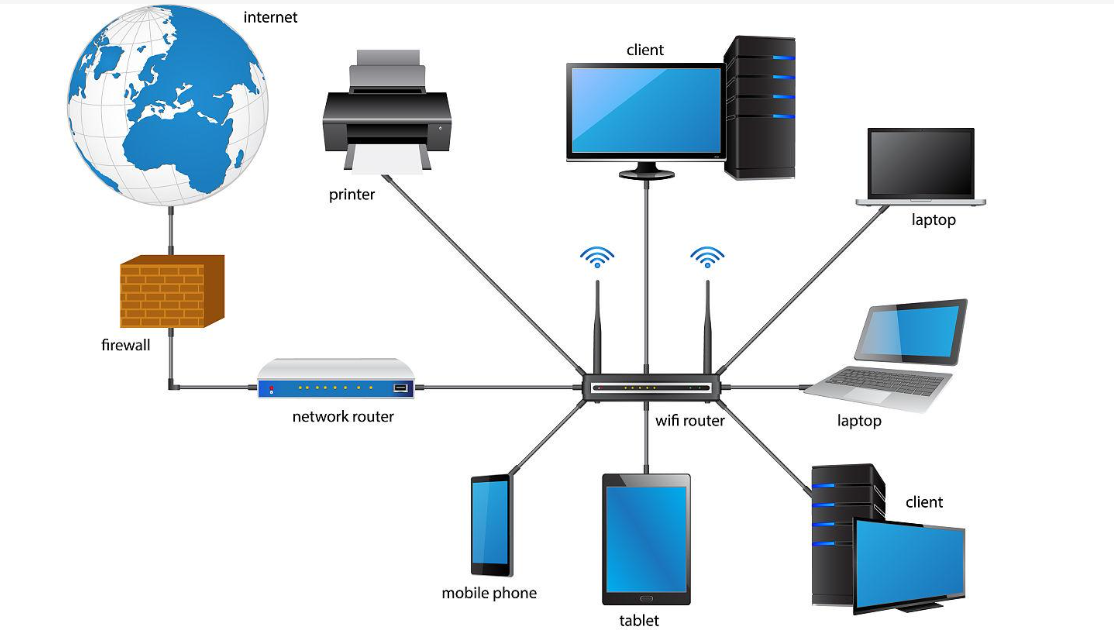

Fiber optical patch cords are used in optical fiber communication room, local area network (LAN), optical fiber data transmission, optical fiber into the home, and so on.

we offer high quality simplex lc fiber patch cable that can provide customers with fast and reliable network transmission services.

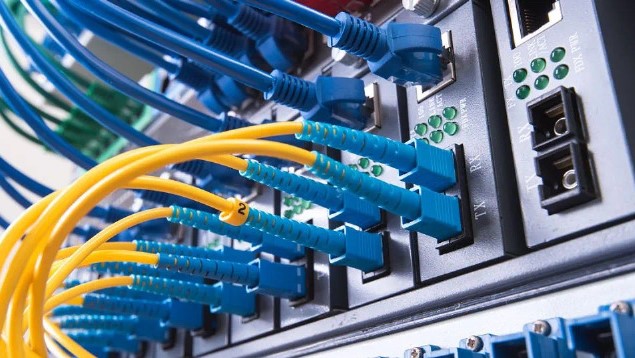

Optical fiber communication room Local area network (LAN)

we offer high quality simplex lc fiber patch cable that can provide customers with fast and reliable network transmission services.

Optical fiber data transmission Fiber to the home (FTTH)
