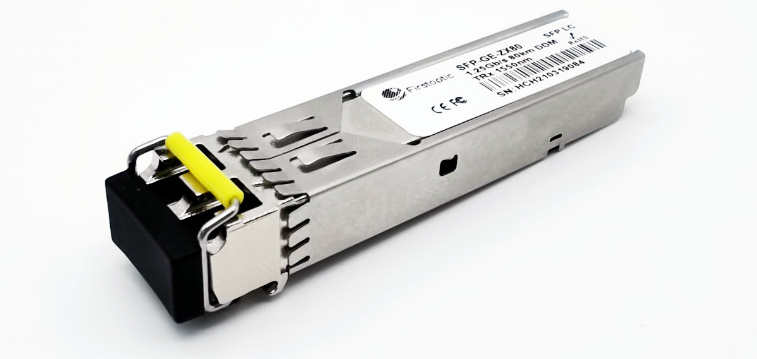

Cisco Compatible SFP 1000BASE-ZX 1550nm 80km DDM Duplex LC/UPC SMF Optical Transceiver Module
SFP-GE-ZX80
SFP-GE-ZX80 is a gigabit optical module based on the 1000Base-ZX standard. It is transmitted through a pair of single-mode optical fibers with a maximum transmission distance of 80km. It is suitable for long-distance optical fiber transmission scenarios. It is widely used in Gigabit Ethernet, Fibre Channel and other fiber optic networks.
Product Highlights
*Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance
*Max. Power Consumption 1W Allowing for Prolonged Service Life
*Commercial Temperature Range 0 to 70°C (32 to 158°F)
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*BOX- Support Real-time Configuration
*Compliant to IEEE 802.3z Gigabit Ethernet
*Class 1 FDA Laser Safety and RoHS Compliant
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Product Highlights
*Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance
*Max. Power Consumption 1W Allowing for Prolonged Service Life
*Commercial Temperature Range 0 to 70°C (32 to 158°F)
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*BOX- Support Real-time Configuration
*Compliant to IEEE 802.3z Gigabit Ethernet
*Class 1 FDA Laser Safety and RoHS Compliant
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Quantity:
Brand Compatible With 1000BASE-ZX SFP Transceiver Module (SFP Double Fiber Single-Mode, 1.25G,1550nm, 80km, LC,DDM)
Cisco compatible small form factor pluggable module transceiver supports up to 80km link lengths over LC duplex SMF. Each small form factor pluggable module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) and other SFP network devices.
Featuring the hot-swappable SFP connector and low power consumption, this 1G small form factor pluggable module transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
Featuring the hot-swappable SFP connector and low power consumption, this 1G small form factor pluggable module transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
Product Details
Part Number：SFP-GE-ZX80
Description：SFP optical module dual-fiber single-mode, 1.25G, 3.3V, LC, working temperature 0~70℃, 1550nm, 80KM, DDM
Compatible with：H3C, HW, Cisco, HP, etc
Data Rate | Module Type | Distance | Wavelength | Interface | Temperature | DDM |
1.25Gb/s | SFP | 80KM | 1550nm | LC | 0~70℃ | Yes |
Our small form factor pluggable module SFP-GE-ZX80 is a high-performance fiber optic communication product. This product is based on single-mode fiber and 80 km of transmission distance, utilizes a 1550nm laser wavelength and SFP connector for easy connection with other devices. In addition, the small form factor pluggable module supports digital diagnostic monitoring functions, enabling monitoring of the optical module's operational status to enhance the reliability of the SFP network.
The small form factor pluggable module can also support full duplex and simplex modes, as well as various protocols, such as fast Ethernet, Gigabit Ethernet, Fibre Channel, etc., to meet the needs of different users.
In addition, the small form factor pluggable module also has a certain degree of flexibility and selectivity, and can be customized according to user needs to configure the SFP connector to meet various communication needs.
This small form factor pluggable module utilizes an SFP connector structure, making it easy to connect with other SFP network devices. Its pluggable design makes maintaining and upgrading the SFP module effortless. In addition, the small form factor pluggable module supports hot-swapping, allowing for replacement without interrupting operations.
The module uses an SFP connector, which has exceptional processing performance and stable data transfer rates, while maintaining low interference and low loss to ensure the excellent performance of SFP networks. This small form factor pluggable module is suitable for various network scenarios such as data centers, enterprise networks, and telecommunications networks.
Specifications
| Model number | SFP-GE-ZX80 | Brand | Firstoptic |
| Form Factor | SFP | Max. Data Rate | 1.25Gbps |
| Wavelength | 1550nm | Max. Cable Distance | 80km |
| Connector | Duplex LC | Optical Components | DFB 1550nm |
| Media | SMF | DDM Support | Yes |
| TX Power | 0 ~ 5dBm | Receiver Sensitivity | < -24dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
Certification system
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features
Before shipping, we conduct rigorous product testing, including the testing of small form factor pluggable modules, to ensure that every product meets the high quality standards. We are committed to providing the most reliable and highest quality optical fiber communication products, to bring excellent performance and stability to our customers.
Test Equipment
Compatible Test
QC TestHigh Compatibility for all Brands
The company sells a full line of SFP optical module optical fiber products compatible with all major brands of equipment.
