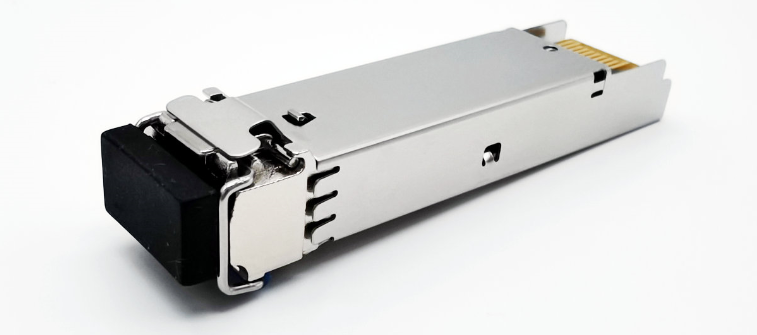

Cisco Compatible SFP 1000BASE-EX 1550nm 40km DDM Duplex LC/UPC SMF Optical Transceiver Module

SFP-GE-LX/H40-SM1550
SFP-GE-LX/H40 is a gigabit optical module based on the 1000Base-EX standard. It is transmitted through a pair of single-mode optical fibers with a maximum transmission distance of 40km. It is suitable for long-distance optical fiber transmission scenarios. It is widely used in Gigabit Ethernet, Fibre Channel and other fiber optic networks.

Product Highlights
*Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance
*Max. Power Consumption 1W Allowing for Prolonged Service Life
*Commercial Temperature Range 0 to 70°C (32 to 158°F)
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*BOX - Support Real-time Configuration
*Compliant to IEEE 802.3z Gigabit Ethernet
*Class 1 FDA Laser Safety and RoHS Compliant
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Quantity:
Contact Now
add to cart

Brand Compatible With 1000BASE-EX SFP Transceiver Module(SFP Double Fiber Single-Mode,1.25G,1550nm, 40km,LC,DDM)

Cisco compatible SFP optical fiber module supports up to 40km link lengths over bidirectional sfp SMF fiber.  Each SFP optical fiber module is individually tested to be used on a series of Cisco switches, routers, servers, network interface cards (NICs), etc.
Featuring low power consumption, the hot swappable 1G SFP optical fiber module is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Product Details

Part Number:SFP-GE-LX/H40-SM1550
Description:SFP optical fiber module dual-fiber single-mode, 1.25G, 3.3V, LC, working temperature 0~70℃, 1550nm, 40KM, DDM
Compatible with:H3C, HW, Cisco, HP, etc

Data Rate
Module Type
Distance
Wavelength
Interface
Temperature
DDM
1.25Gb/s
SFP
40KM
1550nm
LC
0~70℃
Yes

the sfp optical fiber module is suitable for a variety of network devices

Our SFP optical fiber module SFP-GE-LX/H40-SM1550 is a high quality SFP fiber communication product based on single mode fiber with gigabit transmission rate and 40 km transmission distance. The product features a laser wavelength of 1550nm and is equipped with LC connectors for easy connection with other devices. In addition, it also supports the bidirectional SFP digital diagnosis and monitoring function, which can monitor the operating status of optical modules, thereby improving network reliability. Our products have passed ISO9001 quality certification to ensure the reliability and stability of the products.

The SFP optical fiber module suitable for various network scenarios, such as data centers, local area networks, enterprise networks, and telecommunications networks, among others. It provides high-speed and stable data transmission for long-distance transmission with bi-directional communication capability. The component also guarantees low interference and low loss, ensuring excellent network performance, making it a cost-effective bidirectional SFP component.

As a high-quality optical fiber communication product, the SFP optical fiber module shell is made of metal material, which can ensure the strength and durability of the product. In addition, the SFP optical fiber module product also has good anti-interference and can operate stably in harsh environments. SFP optical fiber module also has two-way transmission function and high speed, is an excellent SFP fiber products.

The SFP-GE-LX/H40-SM1550 is suitable for a variety of network devices, such as switches, routers, servers, etc. At the same time, the SFP optical fiber module product is also suitable for data centers, intelligent buildings, monitoring systems, industrial automation and other fields.

   the sfp optical fiber module is suitable for a variety of network devices
Overall, the SFP optical fiber module single-mode SFP-GE-LX/H40-SM1550 is a high-quality fiber optic communication product with excellent performance, stability and reliability, suitable for a variety of demanding data transmission applications. It is an SFP optical fiber module, also known as SFP fiber, which supports bi-directional communication.

 Specifications

Model number
SFP-GE-LX/H40-SM1550
Brand
Firstoptic
Form Factor
SFP
Max. Data Rate
1.25Gbps
Wavelength
1550nm
Max. Cable Distance
40km
Connector
Duplex LC
Optical Components
DFB 1550nm
Media
SMF
DDM Support
Yes
TX Power
-5 ~ 0dBm
Receiver Sensitivity
< -24dBm
Commercial Temperature
Range
0 to 70°C (32 to 158°F)
Protocols
SFF-8472 MSA Compliant, IEEE 802.3ah-2004

Certification system

the sfp optical fiber module is suitable for a variety of network devices        the sfp optical fiber module is suitable for a variety of network devices        the sfp optical fiber module is suitable for a variety of network devices        the sfp optical fiber module is suitable for a variety of network devices

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Features

Before shipping, we conduct rigorous product testing, including the testing of SFP optical fiber modules, to ensure that every product meets the high quality standards. We are committed to providing the most reliable and highest quality optical fiber communication products, to bring excellent performance and stability to our customers.

the sfp optical fiber module is suitable for a variety of network devicesTest Equipment
the sfp optical fiber module is suitable for a variety of network devicesCompatible Test
the sfp optical fiber module is suitable for a variety of network devicesQC Test


High Compatibility for all Brands

The company sells a full line of SFP optical fiber module products compatible with all major brands of equipment.
the sfp optical fiber module is suitable for a variety of network devices
