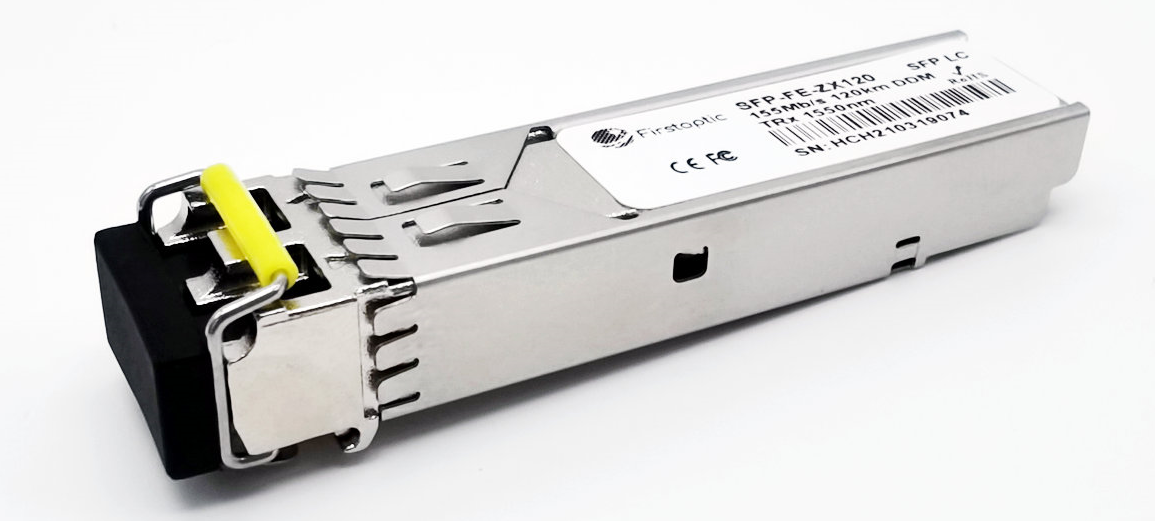

Cisco Compatible SFP 100BASE-ZX 1550nm 120km DDM Duplex LC/UPC SMF Optical Transceiver Module
SFP-FE-ZX120
The SFP-FE-ZX120 optical module is an SFP optical module that supports 100BASE-FX and 1000BASE-X optical fiber communication. It uses ZX technology to achieve single-mode fiber transmission distances of up to 120KM, which is suitable for applications requiring long-distance data transmission, such as enterprise-class data centers, WAN and remote monitoring.
Product Highlights
*Hot-Pluggable SFP Footprint Duplex LC Connector Interface
*Low power consumption
*Commercial Temperature Range 0 to 70°C (32 to 158°F)
*Operating Data Rate up to 155Mbps
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*Compliant with SFP MSA Specification
*Class 1 FDA and IEC60825-1 Laser Safety Compliant
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Product Highlights
*Hot-Pluggable SFP Footprint Duplex LC Connector Interface
*Low power consumption
*Commercial Temperature Range 0 to 70°C (32 to 158°F)
*Operating Data Rate up to 155Mbps
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*Compliant with SFP MSA Specification
*Class 1 FDA and IEC60825-1 Laser Safety Compliant
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Quantity:
Brand Compatible With 100BASE-ZX SFP Transceiver Module（SMF, 155M, 1550nm, 120km, LC, DDM）
Cisco compatible SFP 100BASE optical module supports up to 120km link lengths over single-mode fiber (SMF) using a wavelength of 1550nm via an LC connector. Each SFP 100BASE optical module is individually tested to be used on a series of Cisco switches,routers,servers,network interface card (NICs) etc.
Featuring low power consumption, the hot swappable SFP 100BASE optical module is ideal for Internet Service Provider (ISP) Fast Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
Description
Part Number：SFP-FE-ZX120
Description：SFP optical module dual-fiber single-mode, 155M, 3.3V, LC, working temperature 0~70℃, 1550nm, 120KM, DDM
Compatible with：H3C, HW, Cisco, HP, etc
Data Rate | Module Type | Distance | Wavelength | Interface | Temperature | DDM |
155Mb/s | SFP | 120KM | 1550nm | LC | 0~70℃ | Yes |
The SFP 100BASE optical module SFP-FE-ZX120 is a high-speed and reliable optical fiber communication component, using single-mode optical fiber transmission technology, with long transmission distance and high transmission rate. The SFP 100BASE optical module enables 100 Mbit/s optical fiber communication, and can work within a transmission distance of up to 120 kilometers, while supporting digital diagnosis and monitoring function, can realize remote network management and monitoring, making network communication more stable and reliable.
The SFP 100BASE optical module interface design allows for quick installation and disassembly, making it suitable for a diverse range of optical fiber communication equipment, including switches, routers, servers, and more. By adopting a single-mode optical design, this SFP 100BASE optical module ensures enhanced data transmission, thus facilitating a more efficient workflow.
The SFP 100BASE optical module supports the detection and monitoring of multiple parameters such as temperature, voltage, and optical power at the SFP single-mode optical module, ensuring stability and reliability of the single-mode optical fiber communication. Additionally, SFP 100BASE optical module complies with MSA (Multi-Source Agreement) protocol standards, ensuring good compatibility and interoperability during data transmission.
The SFP 100BASE optical module is an essential technology in the field of modern optical fiber communication. It provides a fast and efficient solution for enterprise network communication, particularly in single-mode fiber networks. The built-in SFP 100BASE optical module not only improves the network transmission rate and transmission distance, but also ensures high stability, security, and reliability of network communication.
In short, the SFP-FE-ZX120 optical module is a high-performance, plug-and-play SFP 100BASE optical module that enables high-speed, single-mode fiber optic communication. The emergence of this module is expected to greatly promote the development and application of optical fiber communication technology, making it an ideal solution for a range of high-speed networking applications.
Specifications
Model number | SFP-FE-ZX120 | Brand | Firstoptic |
Form Factor | SFP | Max. Data Rate | 155Mbps |
Max. Cable Distance | 120km | Wavelength | 1550nm |
Tx | 1550nm DFB | Rx | PIN |
Connector | Duplex LC | Receiver Sensitivity | <-34dBm |
TX Power | -5~0dBm | DDM/DOM | Supported |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | IEEE802.3ab, GR-468, MSA Compliant |
Certification system
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features
Before shipping, we conduct rigorous product testing, including the testing of SFP 100BASE optical modules, to ensure that every product meets the high quality standards. We are committed to providing the most reliable and highest quality optical fiber communication products, to bring excellent performance and stability to our customers.

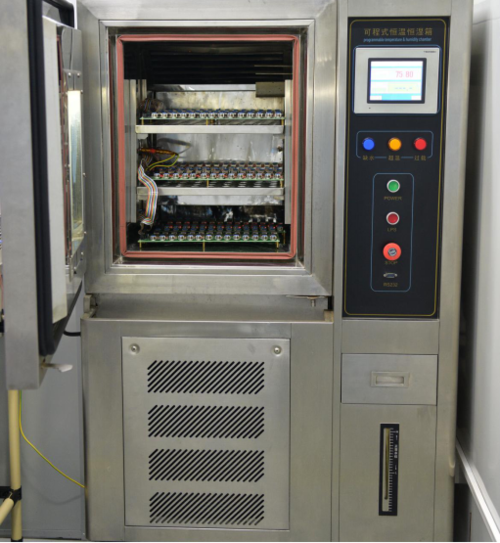

Test Equipment
Compatible Test
QC TestHigh Compatibility for all Brands
The company sells a full line of SFP optical module optical fiber products compatible with all major brands of equipment.
