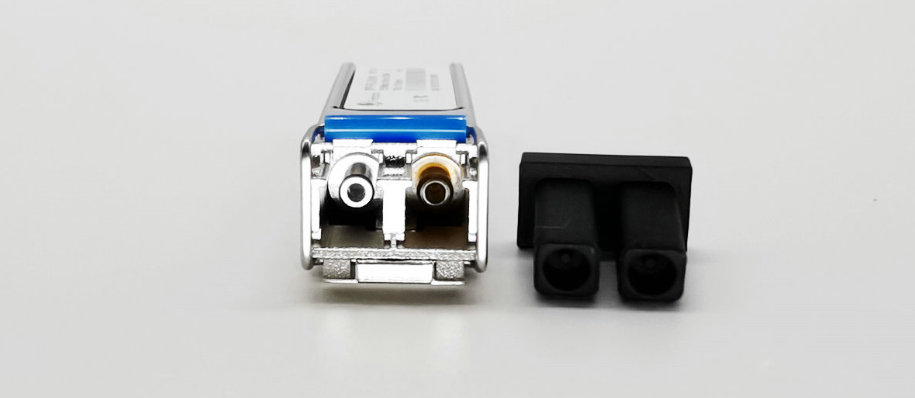

Cisco Compatible SFP 100BASE-LX/LH 1310nm 20km DDM Duplex LC/UPC SMF Optical Transceiver Module
SFP-FE-LX/H20
SFP-FE-LX/H20 is a 100base single-mode optical fiber module that supports the 100BASE SFP optical module. This module is a high-speed, stable and reliable network transmission device, suitable for Ethernet, fast Ethernet and other 100Mbps transmission rate networks.
Product Highlights
*Max. Power Consumption 1W
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
*Hot Pluggable SFP MSA Compliant
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*BOX - Support Real-time Configuration
*Compliant to IEEE 802.3ab Gigabit Ethernet
*Class 1 FDA Laser Safety and RoHS Compliant
Product Highlights
*Max. Power Consumption 1W
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
*Hot Pluggable SFP MSA Compliant
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*BOX - Support Real-time Configuration
*Compliant to IEEE 802.3ab Gigabit Ethernet
*Class 1 FDA Laser Safety and RoHS Compliant
Quantity:
Brand Compatible With 100BASE-LX20 SFP Transceiver Module（SMF, 155M, 1310nm, 20km, LC, DDM）
Cisco compatible 100BASE SFP single mode port supports up to 20km link lengths over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. Each 100BASE SFP single mode port is individually tested to be used on a series of Cisco switches,routers,servers,network interface card (NICs) etc.
Featuring low power consumption and high speed, this 100BASE SFP single mode port is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Product Details
Part Number：SFP-FE-LX/H20
Description：SFP optical module dual-fiber single-mode, 155M, 3.3V, LC, working temperature 0~70℃, 1310nm, 20KM, DDM
Compatible with：H3C, HW, Cisco, HP, etc
Data Rate | Module Type | Distance | Wavelength | Interface | Temperature | DDM |
155Mb/s | SFP | 20KM | 1310nm | LC | 0~70℃ | Yes |
The 100BASE SFP single mode port SFP-FE-LX/H20 is a high-speed and reliable optical fiber communication component, using single-mode optical fiber transmission technology, with long transmission distance and high transmission rate. The 100BASE SFP single mode port enables 100 Mbit/s optical fiber communication, and can work within a transmission distance of up to 20 kilometers, while supporting digital diagnosis and monitoring function, can realize remote network management and monitoring, making network communication more stable and reliable.
The 100BASE SFP single mode port interface design allows for quick installation and disassembly, making it suitable for a diverse range of optical fiber communication equipment, including switches, routers, servers, and more. By adopting a single-mode optical design, this 100BASE SFP single mode port ensures enhanced data transmission, thus facilitating a more efficient workflow.
The 100BASE SFP single mode port supports the detection and monitoring of multiple parameters such as temperature, voltage, and optical power at the SFP single-mode optical module, ensuring stability and reliability of the single-mode optical fiber communication. Additionally, 100BASE SFP single mode port complies with MSA (Multi-Source Agreement) protocol standards, ensuring good compatibility and interoperability during data transmission.
The 100BASE SFP single mode port is an essential technology in the field of modern optical fiber communication. It provides a fast and efficient solution for enterprise network communication, particularly in single-mode fiber networks. The built-in 100BASE SFP single mode port not only improves the network transmission rate and transmission distance, but also ensures high stability, security, and reliability of network communication.
In short, the SFP-FE-LX/H20 optical module is a high-performance, plug-and-play 100BASE SFP single mode port optical module that enables high-speed, single-mode fiber optic communication. The emergence of this module is expected to greatly promote the development and application of optical fiber communication technology, making it an ideal solution for a range of high-speed networking applications.
Specifications
Model number | SFP-FE-LX/H20 | Brand | Firstoptic |
Form Factor | SFP | Max. Data Rate | 155Mbps |
Max. Cable Distance | 20km | Wavelength | 1310nm |
Connector | Duplex LC | Media | SMF |
Optical Components | FP 1310nm | Receiver Sensitivity | <-32.5dBm |
TX Power | -15~-8dBm | DDM/DOM | Supported |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | IEEE802.3ab, GR-468, MSA Compliant |
Certification system
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features
Before shipping, we conduct rigorous product testing, including the testing of 100BASE SFP single mode ports, to ensure that every product meets the high quality standards. We are committed to providing the most reliable and highest quality optical fiber communication products, to bring excellent performance and stability to our customers.
Test Equipment
Compatible Test
QC TestHigh Compatibility for all Brands
