SR vs LR vs ER vs ZR: The Ultimate Guide to Optical Module Distance Selection

Choosing the wrong optical module can lead to "performance surplus" or "insufficient distance"—both costly mistakes. As 5G, AI computing, and data center interconnect demands surge, understanding SR, LR, ER, and ZR optics is key to optimizing both network performance and budget.

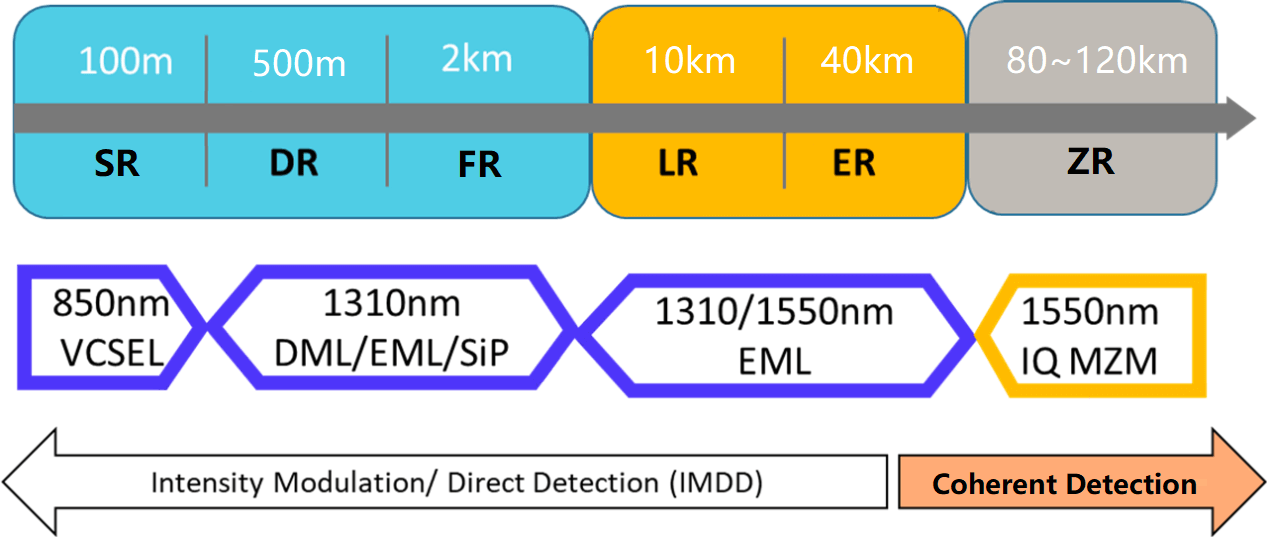

The suffixes stand for Short Reach, Long Reach, Extended Reach, and Zetta Reach. Their core differences lie in transmission distance, fiber type, and technical characteristics—which directly determine deployment costs across different scenarios.

Four Optical Module Types: Match Distance to Scenario

1. SR (Short Reach): Short-Distance Leader

SR modules are the workhorse for data center internal interconnects. They operate at 850nm using VCSEL technology, designed specifically for multimode fiber (OM3/OM4/OM5).

• Typical Distance: Up to 300m (10G SR reaches 300m on OM3; 40G/100G SR4 extends to 300m on OM4)

• Core Advantages: Low cost, low power consumption, high-density packaging

• Best For: Inter-cabinet connections, server-to-switch links, local area networks

• Selection Tip: If your distance is ≤300 meters and you're using multimode fiber, SR is your most cost-effective choice.

2. LR (Long Reach): Medium-Distance Mainstay

LR modules bridge the gap between short-range and long-haul transmission. They operate at 1310nm using DFB lasers, paired with single-mode fiber (G.652/G.657).

• Typical Distance: 10km (extendable to 20km with manufacturer optimization)

• Core Advantages: Best cost-performance balance, stable transmission, no complex dispersion compensation

• Best For: Campus networks, MAN access layers, adjacent building interconnects

LR modules hit the sweet spot—signal attenuation is lower than multimode fiber, yet they avoid the expense of long-haul amplification equipment.

Selection Tip: For distances between 2km-10km on single-mode fiber, LR delivers the optimal balance of performance and budget.

3. ER (Extended Reach): Long-Haul Performer

When distances stretch further, ER modules deliver. They operate at 1550nm using EML lasers and EDFA amplification, compatible with single-mode fiber.

• Typical Distance: 40km (30km stable in engineering links)

• Core Advantages: Strong anti-attenuation, high stability, supports Forward Error Correction (FEC)

• Best For: MAN core layers, Data Center Interconnect (DCI), long-distance campus interconnections

The 1550nm wavelength operates in single-mode fiber's low-loss window, effectively reducing signal attenuation.

Critical Note: For links shorter than 20km, ER modules require attenuation treatment to prevent signal overload.

4. ZR (Zetta Reach): Ultra-Long-Haul Core

For the longest distances, ZR modules are the industry standard. They operate at 1550nm—some incorporating coherent technology—paired with single-mode fiber (G.652D/G.655).

• Typical Distance: 80km (up to 120km for high-end products)

• Core Advantages: Ultra-long reach, strong anti-interference, reduces need for relay equipment

• Best For: Cross-city backbone networks, carrier long-haul transmission, remote data center disaster recovery

ZR modules have the highest technical threshold, employing high-power EML or externally modulated lasers, often requiring Dispersion Compensation Modules (DCM).

Selection Tip: For distances ≥40km, ZR is your only option—but it pays off by minimizing relay equipment.

Selection Guide: Avoid These Pitfalls

Step 1: Measure the Distance

• ≤300m → SR

• 2km-10km → LR

• 10km-40km → ER

• ≥40km → ZR

Step 2: Check Your Fiber

• Multimode fiber (OM3/4/5): SR only

• Single-mode fiber (G.652/G.655): LR/ER/ZR

• Critical Taboo: Mixing fiber types—using SR on single-mode or LR/ER/ZR on multimode—causes severe signal attenuation and communication failure. This is the most common and costly mistake.

Step 3: Balance Cost and Distance

• Short distance (≤300m): SR — lowest cost

• Medium distance (2km-10km): LR — best value

• Long distance (10km-40km): ER — balance reach and stability

• Ultra-long distance (≥40km): ZR — enables cross-regional transmission

Industry Trend: Compatible Modules Rise

MSA standards have virtually eliminated the performance gap between original and compatible optics. Today, you can deploy high-quality compatible SR/LR/ER/ZR modules that interoperate seamlessly across Cisco, Huawei, Arista and other switches—slashing costs by 60%-80% without compromising reach or reliability.

As 6G and space-air-ground communications evolve, transmission distances will extend further while costs continue to optimize. The four types—SR, LR, ER, ZR—will remain market mainstream.

For enterprises, accurate selection based on actual distance needs ensures both stable operation and cost efficiency. It's not just technical detail—it's strategic advantage.
