1m (3ft) QSFP56-200G-DAC-1M Compatible 200G QSFP56 Passive Direct Attach Copper Twinax Cable
Product Highlights
*Ultra-Low Power Consumption: <0.15W
*Verified Compatibility with Major Switch Platforms
*30mm Minimum Bend Radius for High-Density Deployment
*Enables 200G High-Speed Connections
*Cost-Effective Direct Attach Copper Solution
*Hot-Pluggable & QSFP56 MSA Compliant
*Optimized Signal Integrity with Low BER
*RoHS 3 Compliant

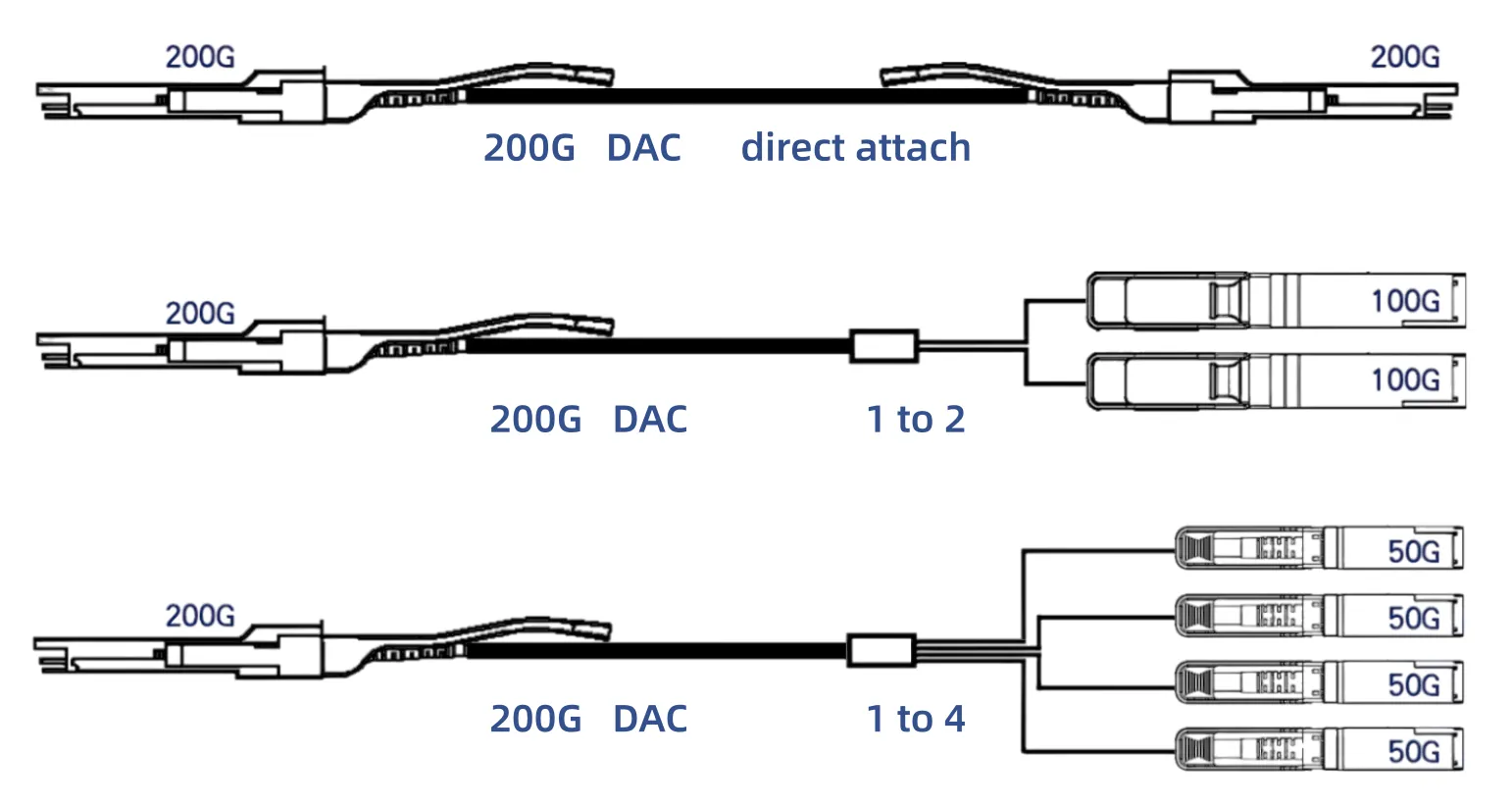

Generic Compatible 200G QSFP-DD to 2x 100G QSFP28 DAC Breakout Cable (2-meter, Passive, QSFP56 to 2x QSFP28, 28AWG)
The QSFP56-200G-DAC-1M is a cost‑effective 200gbase dac cable 1m for 200Gbps links. As a high‑quality qsfp56 200g dac 1m, it enables efficient QSFP56 port use and network expansion. Its 200g qsfp56 passive direct attach copper design ensures seamless integration.Meeting high‑density needs, this cable simplifies deployment and lowers cost. Featuring stable performance and low latency, it is ideal for short‑reach data center interconnects. Compatible with Cisco, Huawei, Arista, and others, each qsfp56 200g dac 1m undergoes strict quality testing for reliable operation.
Specifications
| Model number | QSFP56-200G-DAC-1M | Brand | Firstoptic |
| Connector Type | QSFP56 to QSFP56 | Max Data Rate | 200Gbps |
| Media | Copper | Power Supply | 3.3V |
| Power Consumption | ≤0.03W | Wire AWG | 30AWG |
| Cable Length | 1m (3ft) | Jacket Material | PVC (OFNR) |
| Cable Type | Passive Twinax | Application | 200G Ethernet |
| Temperature | 0 to 70°C (32 to 158°F) | Protocols | IEEE802.3cd, SFF-8436 |
As a professional manufacturer, we prioritize product quality. This 200gbase dac cable 1m—a premium 200g qsfp56 passive direct attach copper solution—is crafted with 99.99% high‑purity oxygen‑free copper conductors, double‑layer aluminum foil shielding, and a robust PVC outer jacket.
1.Core Transmission Advantage
Designed for 200Gbps transmission, the qsfp56 200g dac 1m ensures low insertion loss (≤2.0dB) and stable signal distribution, delivering performance comparable to high‑end alternatives.
2.Precision Performance Control
With precise impedance control technology, the 200gbase dac cable 1m effectively minimizes signal interference and guarantees long‑term stable operation.
3.Standards‑Compliant Design
Compliant with QSFP56 MSA standards, the 200g qsfp56 passive direct attach copper cable works seamlessly with mainstream vendor equipment, offering flexible interconnect solutions.
4.Durable & Reliable Construction
The copper‑core twinax and multi‑layer shielding ensure signal integrity even in harsh data‑center environments, extending the service life of the qsfp56 200g dac 1m.
5.Precision Manufacturing Process
Advanced extrusion and molding processes deliver consistent dimensions and reliable performance for every 200gbase dac cable 1m.
The 200gbase dac cable 1m is essential in modern data centers. This high-performance qsfp56 200g dac 1m serves as a core 200g qsfp56 passive direct attach copper solution, linking switches, routers, and servers for seamless 200G transmission. Its passive design ensures reliable operation across 0–70°C, adapting to varied data center environments.
With low insertion loss and ultra‑low crosstalk, the 200gbase dac cable 1m supports stable transmission for bandwidth‑intensive tasks. The 200g qsfp56 passive direct attach copper design integrates seamlessly with existing QSFP56 infrastructure, lowering upgrade costs. Hot‑pluggable installation simplifies setup and reduces downtime.
In short, the qsfp56 200g dac 1m provides a cost‑effective short‑reach 200G solution that fits evolving network architectures. Our factory specializes in high‑quality 200gbase dac cable 1m products—contact us for customized support.

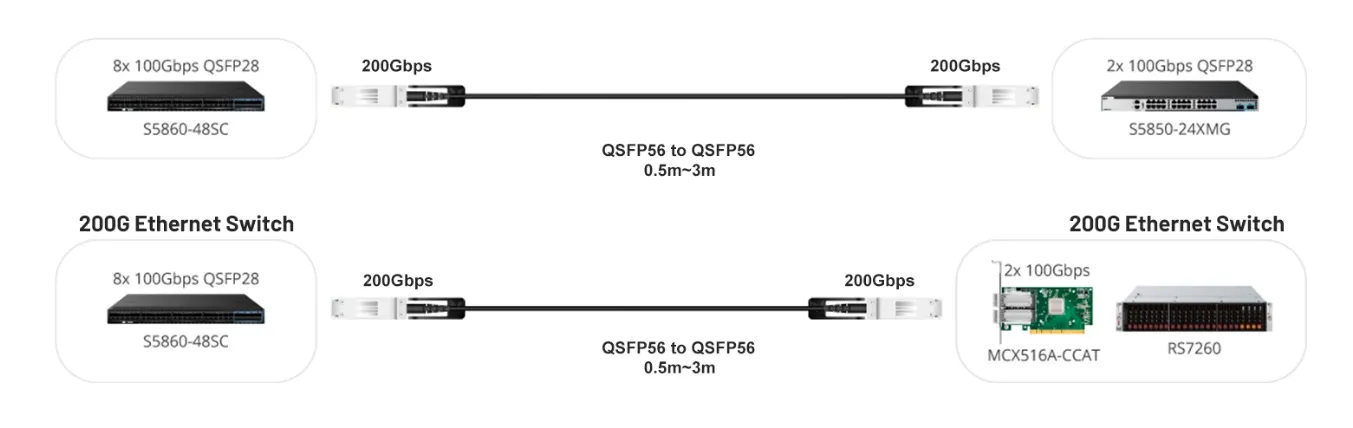

Product application
This high-speed interconnect solution is widely used to establish 200G links within data center racks, connecting core networking equipment for
top-of-rack (ToR) and spine-leaf architectures.
Quality assurance
Each product goes through 13 strict testing processes such as compatibility, performance, reliability, and solutions.
High Compatibility for all Brands
