Fiber Optic Patch Cord, MPO/PC(F)-MPO/PC(F), 8 Fibers, Single Mode (OS2), Plenum (OFNP), Type B, Yellow
Product Highlights
*OS2 Single-Mode Fiber Construction
*8-Fiber MPO-to-MPO Cable Assembly
*Female MPO/PC Connectors at Both Ends
*Type B Polarity for Matching Channel Designs
*Yellow OFNP-Rated Cable Jacket
8-Fiber OS2 Single-Mode MPO Patch Cable, Type B
For projects specifying single-mode MPO connectivity, this os2 mpo patch cable provides an eight-fiber connection with female MPO/PC terminations. Select this type b mpo patch cord by matching the fiber assignment, connector polish and polarity to the equipment and distribution system.
Specifications
Product Name | Fiber Optic Patch Cord | Brand | Firstoptic |
Connector A | MPO/PC(F) | Connector B | MPO/PC(F) |
Fiber Count | 8 Fibers | Polarity | Type B |
Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
Material | LSZH | Cable Jacket | Plenum (OFNP) |
Cable Outside Diameter (OD) | 3.0mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
Connector Durability | 500 times | Tensile Strength (Long/Short Term) | 80/240N |
Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
Attenuation at 1310 nm | ≤0.4B/km | Attenuation at 1550nm | ≤0.3dB/km |
Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |

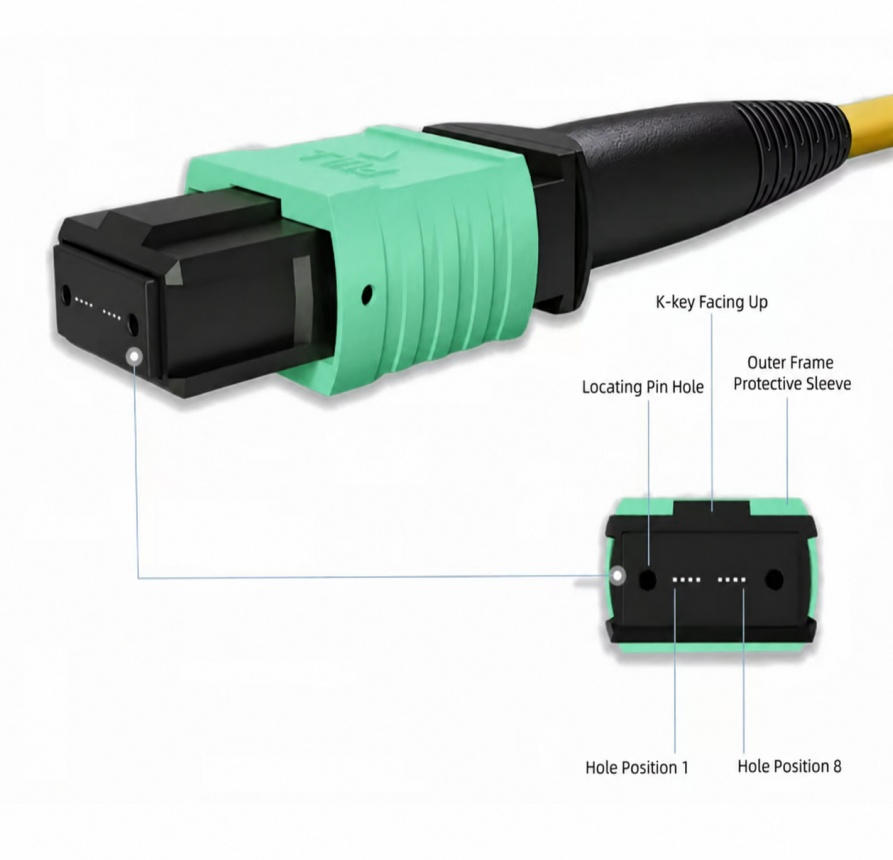

Connector Polish, Gender and Fiber Mapping
This 8 fiber single mode mpo cable is listed with female MPO/PC connectors. Confirm the required connector polish at each mating interface rather than selecting by MPO housing shape alone.
Both connectors have guide holes without guide pins. Check the mating pin configuration and inspect the connector end faces before connection.
The Type B designation describes the cable’s polarity. Verify the populated fiber positions and end-to-end mapping of this type b mpo patch cord against the complete channel design.
Applications
This os2 mpo patch cable is intended for single-mode cabling designs requiring compatible eight-fiber MPO connections:
- Equipment links specifying OS2 fiber and MPO/PC interfaces
- Patching between compatible single-mode MPO distribution points
- Connections through panels with matching fiber assignments
- Cabling routes requiring an OFNP-rated assembly
Before installing this 8 fiber single mode mpo cable, confirm the equipment’s optical interface, connector polish, polarity and channel loss requirements. OS2 fiber alone does not establish a supported data rate or transmission distance.
Standardized Production
Polarity test
Insertion/return loss detection
End detectionQ1: Can this os2 mpo patch cable replace an OM3 or OM4 cable?
It is not a direct substitute. OS2 is single-mode fiber, while OM3 and OM4 are multimode. Select the fiber type specified by the optical equipment.
Q2: Can this cable connect to an MPO/APC interface?
This product is currently listed as MPO/PC. Do not assume it can mate with MPO/APC; confirm the required polish and obtain a matching assembly.
Q3: What distance can this 8 fiber single mode mpo cable support?
Distance depends on the selected optical modules, total channel length and loss budget. This cable’s OS2 designation does not define one universal operating distance.
Q4: Is Type B polarity enough to confirm compatibility?
No. For this type b mpo patch cord, also check connector polish, gender, populated fiber positions and the mapping of any intermediate panels or cassettes.
