Category
Desktop-type 1-channel HDMI + 1-channel USB 4K@60HZ LC 10KM 4K HD Extenders
Product Highlights
* Supports a maximum resolution of up to 4K@60Hz, with clear and smooth picture quality
* Single-mode optical fiber for long-distance transmission, with stable anti-interference performance
* Full-digital optical fiber transmission, without compression, zero delay, and no frame loss
* Supports EDID transmission and management functions
* Automatic identification and configuration of display modes
* Plug-and-play, compatible with various high-definition interface devices
* Metal body, lightning protection and static electricity prevention, suitable for complex environments

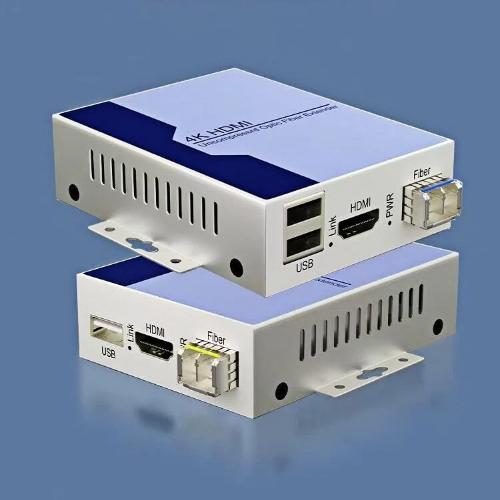

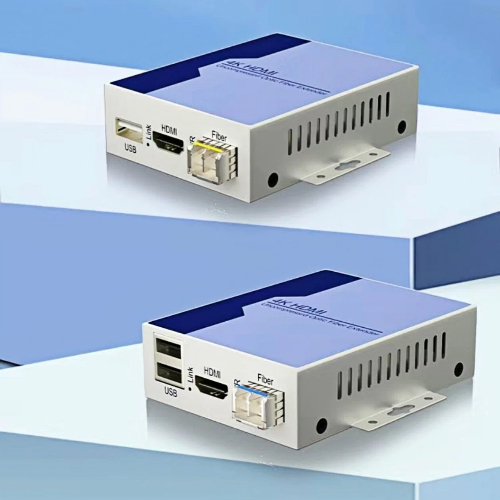

1-channel HDMI + 1-channel USB High-definition Uncompressed Optic Fiber Extender（4K@60HZ, Single-mode, Single-fiber, 10KM, LC, Desktop-type）
Specifications
Product Name | 4K-HDMI HD Uncompressed Optic Fiber Extender |
Product model | HTDV-4K-THDMIUSB |
Interface description | 1-channel HDMI + 1-channel USB |
High resolution | 4K@60HZ |
Optical fiber interface | LC |
Optical fiber type | Single-fiber single-mode |
Transmission distance | 10KM |
Power supply voltage | DC-5V |
Signal type | Digital signal |
Installation method | Desktop installation |
The4K lossless HDMI video extender supports 4K@60Hz high-definition signal transmission. It adopts lossless encoding technology, without compression or delay. The colors are restored realistically, the picture is fine and free of ghosting, and the original high-definition picture quality is perfectly preserved. It is compatible with various terminal devices such as high-definition cameras and monitors.
2. Long-distance transmission with extremely low loss
The4K lossless HDMI video extender relies on a high-quality optical transmission solution. For single-mode fiber, the transmission distance can reach 3-120 kilometers, and for multi-mode fiber, it can reach 2 kilometers. The signal transmission loss is extremely low, eliminating the need for intermediate equipment, significantly reducing the cost of long-distance networking. It is suitable for large-scale parks, long-distance monitoring and other scenarios.
The4K lossless HDMI video extender adopts a fully shielded housing design, effectively shielding various types of interference such as electromagnetic, radio frequency, and lightning, avoiding the impact of complex environments on signal transmission; industrial-grade component selection, wide temperature and humidity compatibility, long MTBF, capable of long-term stable operation, reducing downtime losses due to faults.
4. Flexible adaptation, wide compatibility
The4K lossless HDMI video extender is compatible with various high-definition interfaces such as HDMI, VGA, and SDI, it supports synchronous transmission of multiple high-definition signals (customizable as needed), and support EDID transmission and EDID management functions. 4K lossless HDMI video extender can be directly connected without the need to modify existing equipment, and is suitable for use in multiple scenarios such as monitoring networking, broadcasting, and high-definition meetings.
5. Easy operation and maintenance, simple and efficient installation
The4K lossless HDMI video extender is compact in size and easy to connect; it has a complete alarm monitoring function, which can monitor the operating status of the equipment in real time. Faults can be quickly located and resolved without the need for professional technicians, thereby reducing the labor costs for operation and maintenance.
The4K lossless HDMI video extender strictly complies with the relevant standards of the broadcasting and television, and security industries. All parameters are in compliance. 4K lossless HDMI video extender is equipped with protection against power overvoltage, overcurrent and reverse connection, which can extend the service life of the equipment.
As a manufacturer of 4K lossless HDMI video extenders, we have a complete system covering research and development, production, testing, sales and after-sales service. We always adhere to the core concept of"quality first, customer priority", providing customers with high-performance 4K lossless HDMI video extenders and comprehensive service support at an affordable price.
In terms of product quality, all 4K lossless HDMI video extenders have undergone strict selection of raw materials, production process control and final product inspection. From chip selection to product assembly, every step adheres to industrial-grade standards, ensuring stable performance and reliable quality of the products. The 4K lossless HDMI video extenders also support personalized customization, allowing for the creation of dedicated transmission solutions based on the specific application scenarios, transmission distances, and functional requirements of customers, to meet the differentiated needs of various industries and projects.
Choosing our 4K lossless HDMI video extender is not only choosing a high-quality transmission device, but also choosing a reliable partner. We will work with customers from various industries to unlock new possibilities for ultra-high-definition transmission, help various industries achieve digitalization and intelligentization upgrades, and jointly build a new future of high-definition vision!

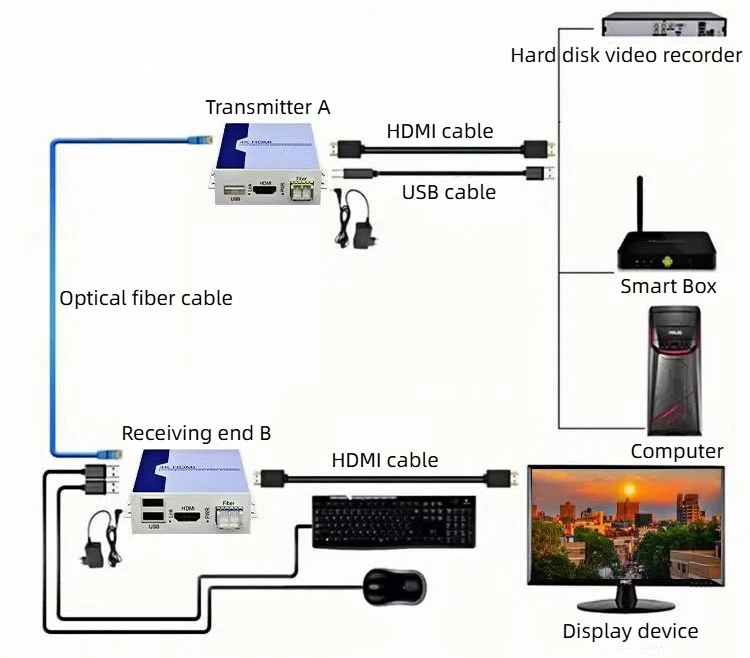

Connection method
Product application
Shopping mall
Security monitoring
Fiber optic home access
Multimedia teaching
Meeting
Television broadcasting
