Desktop-type 1-channel HDMI + 1-channel USB + 1-channel Audio 1920x1080P@60HZ Single-fiber Single-mode SC 20KM HD Extenders
Product Highlights
* Supports the highest resolution up to 1920×1080P@60Hz, with a clear and smooth picture
* Single-mode optical fiber for long-distance transmission, with stable anti-interference performance
* Audio and video are transmitted synchronously with low latency and no lag
* Full digital, uncompressed transmission, with zero loss of high-definition image quality
* Automatic identification and configuration of display modes
* Plug-and-play, compatible with various high-definition interface devices
* Metal body, lightning protection and static electricity prevention, suitable for complex environments
1-channel HDMI + 1-channel USB + 1-channel Audio High-definition Optical Transceiver（1920x1080P@60HZ, Single-mode, Single-fiber, 20KM, SC, Desktop-type）
Specifications
Product Name | HDMI HD Optical Transceiver |
Product model | HTDV-T/R1HDMI1ZAUSB |
Interface description | 1-channel HDMI + 1-channel USB + 1-channel Audio |
High resolution | 1920x1080P@60HZ |
Optical fiber interface | SC/FC optional |
Optical fiber type | Single-fiber single-mode |
Transmission distance | 20KM |
Power supply voltage | DC-5V |
Signal type | Digital signal |
Installation method | Desktop installation |
The1080p HD video extender supports 1080P@60Hz high-definition signal transmission. It adopts lossless encoding technology, without compression or delay. The colors are restored realistically, the picture is fine and free of ghosting, and the original high-definition picture quality is perfectly preserved. It is compatible with various terminal devices such as high-definition cameras and monitors.
2. Long-distance transmission with extremely low loss
The1080p HD video extender relies on a high-quality optical transmission solution. For single-mode fiber, the transmission distance can reach 20-120 kilometers, and for multi-mode fiber, it can reach 2 kilometers. The signal transmission loss is extremely low, eliminating the need for intermediate equipment, significantly reducing the cost of long-distance networking. It is suitable for large-scale parks, long-distance monitoring and other scenarios.
The1080p HD video extender adopts a fully shielded housing design, effectively shielding various types of interference such as electromagnetic, radio frequency, and lightning, avoiding the impact of complex environments on signal transmission; industrial-grade component selection, wide temperature and humidity compatibility, long MTBF, capable of long-term stable operation, reducing downtime losses due to faults.
4. Flexible adaptation, wide compatibility
The1080p HD video extender is compatible with various high-definition interfaces such as HDMI, VGA, and SDI, and supports synchronous transmission of multiple high-definition signals (customizable as needed). 1080p HD video extender can be directly connected without the need to modify existing equipment, and is suitable for use in multiple scenarios such as monitoring networking, broadcasting, and high-definition meetings.
5. Easy operation and maintenance, simple and efficient installation
The1080p HD video extender is compact in size and easy to connect; it has a complete alarm monitoring function, which can monitor the operating status of the equipment in real time. Faults can be quickly located and resolved without the need for professional technicians, thereby reducing the labor costs for operation and maintenance.
The1080p HD video extender strictly complies with the relevant standards of the broadcasting and television, and security industries. All parameters are in compliance. 1080p HD video extender is equipped with protection against power overvoltage, overcurrent and reverse connection, which can extend the service life of the equipment.
With its superior performance, our 1080p HD video extenders are widely used in various fields, serving as the"transmission hub"for high-definition scenarios and enabling digital upgrades in various industries.
First, in the field of security monitoring, 1080p HD video extenders are suitable for large-scale monitoring scenarios such as cities, parks, and highways, enabling long-distance transmission of multiple high-definition videos and supporting remote control and scheduling at the backend, thus strengthening the security defense. Second, in the field of emergency command, 1080p HD video extenders meet the needs of emergency and fire command centers, enabling synchronous transmission of multiple signals, with a latency of less than 5ms, improving the efficiency of emergency response. Third, in the field of broadcasting and media, 1080p HD video extenders are suitable for scenarios such as studios and live sports broadcasts, enabling real-time transmission of broadcast-level high-definition signals, with strong anti-interference capabilities, and ensuring the quality of live broadcasts. Fourth, in the field of industrial control, 1080p HD video extenders are suitable for complex scenarios such as industrial parks and substations, enabling stable transmission of monitoring and industrial data signals, helping with visual control and ensuring production safety. Fifth, in commercial and public scenarios, 1080p HD video extenders are suitable for digital exhibition halls and conference centers, enabling the aggregation and scheduling of high-definition signals, supporting remote switching and remote transmission of off-site meetings, and enhancing the user experience.
1080p HD video extenders are not merely signal extension devices; they are also the stability and picture quality guarantee of high-definition visualization systems. Under the industry trends of high-definition, long-distance, and intelligence, 1080p HD video extenders, with their core advantages of lossless transmission, strong anti-interference ability, ultra-long distance, and simple deployment, have become the standard transmission solutions in fields such as security, broadcasting and television, transportation, industry, and conferences.

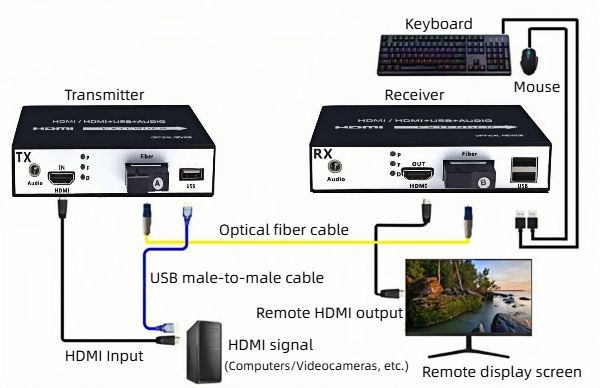

Connection method
Product application
Shopping mall
Security monitoring
Fiber optic home access
Multimedia teaching
Meeting
Television broadcasting
