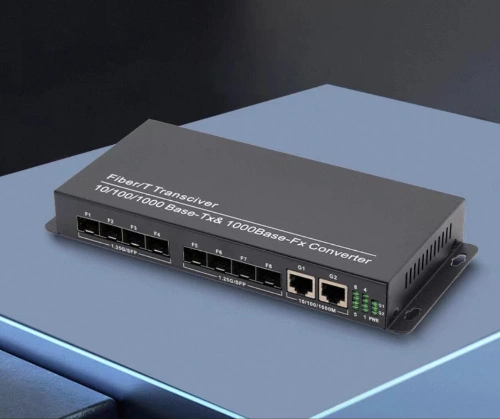

Commercial-grade 2x10/100/1000Base-T RJ45 to 8x1000Base-X GE SFP Optical Fiber Transceiver

HT-1000M-8F2E
Optical fiber transceivers, also known as optical-electrical converters, are industrial network communication devices that perform bidirectional conversion between electrical signals and optical signals. Their main function is to address the limitation of the limited transmission distance of twisted-pair Ethernet, enabling the interconnection between electrical port devices and fiber optic networks.

Product Highlights
* Supports MDI/MDI-X adaptation, full/half-duplex adaptation
* Dynamic LED indicator, showing the current working status of the device in real time
* Simple to use, plug-and-play, no need for any settings
* Operating temperature range: -20℃ to 70℃
* Compatible with international communication standards such as IEEE802.3 and IEEE802.3u
* Sleek iron-shell design, supporting rack-mounted installation
Quantity:
Contact Now
add to cart

Commercial-grade 1000Mbps 8 Optical 2 Electrical Media Converter(2x10/100/1000Base-T RJ45 to 8x1000Base-X, SFP, Desktop / Wall-mounted)

This 1000 mbit 8 fiber 2 copper transceiver supports 2x10/100/1000Base-T electrical ports and 8x1000Base-X optical ports. It helps users achieve Ethernet data exchange, aggregation, and long-distance optical transmission functions. The 1000 mbit 8 fiber 2 copper transceiver adopts a fanless, low-power design, featuring ease of use and simple maintenance. The product design complies with Ethernet standards and has stable and reliable performance.
The 1000 mbit 8 fiber 2 copper transceivers can be widely applied in high-speed access networks of enterprises, campuses, etc. They are also widely used in most high-definition cameras on the market, as well as in high-definition monitoring transmission systems for security cities and road surveillance.

Specifications

Product Name
1000Mbps fiber optic switch
Model number
HT-1000M-8F2E
Optical port description

8*1000Base-FX

Electrical port description

2*10/100/1000Base-TX

Optical fiber port
SFP
Transmission distance

Determined by the SFP optical module

Fiber type

Determined by the SFP optical module

Power supply voltage
DC-5V
Operating temperature
 -20℃ to 70℃

Power supply

External power adapter

Network protocol

IEEE802.3;802.3i;802.3U;802.3ab;

802.32;802.3x;802.3af;802.3at

Installation method
Desktop / Wall-mounted installation


HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.
1. Precise and optimized transmission performance
① 1000-megabit Stability: 1000 mbit 8 fiber 2 copper transceiver compliant with IEEE 802.3u, with a 1000Mbps rate, full/half-duplex auto-adaptation, suitable for office, monitoring and other scenarios.
② Long-distance transmission: This technology supports transmission over a range of 20 to 120 kilometers (determined by the SFP optical module) and are suitable for long-distance scenarios such as campus interconnection.

2. Flexible Adaptation and Networking
① Multi-port compatibility: Standard SFP optical ports + RJ45 electrical ports. Easy debugging.
② Wide wavelength compatibility: 1000 mbit 8 fiber 2 copper transceiver supports 1310nm/1550nm, and partially supports WDM, enhancing the utilization rate of optical fibers.
③ Multiple working modes: 1000 mbit 8 fiber 2 copper transceiver supports VLAN and other modes. High-end models also support link aggregation to meet redundancy requirements.

3. Commercial-level Stability Assurance
① Wide environmental compatibility: 1000 mbit 8 fiber 2 copper transceiver supports wide voltage input, operating temperature range of -20℃ to 70℃ (even wider for industrial grade), adaptable to various environments.
② Link redundancy: Supports link monitoring, fault alarm switching, and partial support for fault status synchronization.

4. Convenient Management and Maintenance
① Visual monitoring: LED indicator lights for troubleshooting. High-end models support remote Web/SNMP management.
② Easy installation and maintenance: 1000 mbit 8 fiber 2 copper transceiver supports rack or desktop installation, with simple configuration and low maintenance costs.

5. Safety and Compliance
① Data security: 1000 mbit 8 fiber 2 copper transceiver supports VLAN isolation, partial support for port isolation and MAC binding, and prevents unauthorized access.
② Compliance Certification: Obtained CE/FCC/RoHS certifications, and rigorously tested to ensure safety and stability.

Summary: The advantages of the 1000 mbit 8 fiber 2 copper transceivers include long-distance transmission, stability and reliability, flexibility in adaptation, and ease of operation and maintenance. They are the key equipment for commercial network interconnection.

The 1000 mbit 8 fiber 2 copper transceivers are specially designed for enterprise-level scenarios. By reducing the cost of optical fibers, they ensure stable performance to meet the requirements of commercial network rates, distances, and security. 1000 mbit 8 fiber 2 copper transceivers widely applied in campus networking, operator access, monitoring transmission and other architectures.

In terms of core performance, the 1000 mbit 8 fiber 2 copper transceivers use high-quality and stable chips, supporting 1000Mbps full-duplex/half-duplex adaptive modes. They can carry various types of commercial data at 1000Mbps without delay, avoiding packet loss and stuttering.

Compared to traditional network cable transmissions, the 1000 mbit 8 fiber 2 copper transceivers, relying on the low loss and anti-interference characteristics of optical fibers, can easily break through the transmission distance limitations of electrical signals, extending the data transmission distance from the meter-level to several kilometers or even hundreds of kilometers. Whether it is the expansion of enterprise local area networks, the interconnection of campus networks, or the construction of security monitoring and access networks by telecommunications operators, 1000 mbit 8 fiber 2 copper transceivers can be seen everywhere.

HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.

Connection method

Optical fiber interface connection
Figure 1 shows the connection method of the SC port - SC port dual-fiber 1000 mbit 8 fiber 2 copper transceivers.
Tx is the transmitting port of the optical module, and Rx is the receiving port of the optical module. The transmitting port (Tx) of optical transceiver A is connected to the receiving port (Rx) of optical transceiver B, and the receiving port (Rx) of optical transceiver A is connected to the transmitting port (Tx) of optical transceiver B.
HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.
Figure 2 shows the connection method of the SC port - SC port single-fiber 1000 mbit 8 fiber 2 copper transceivers.
The optical port of optical transceiver A is connected to the optical port of optical transceiver B.
HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.

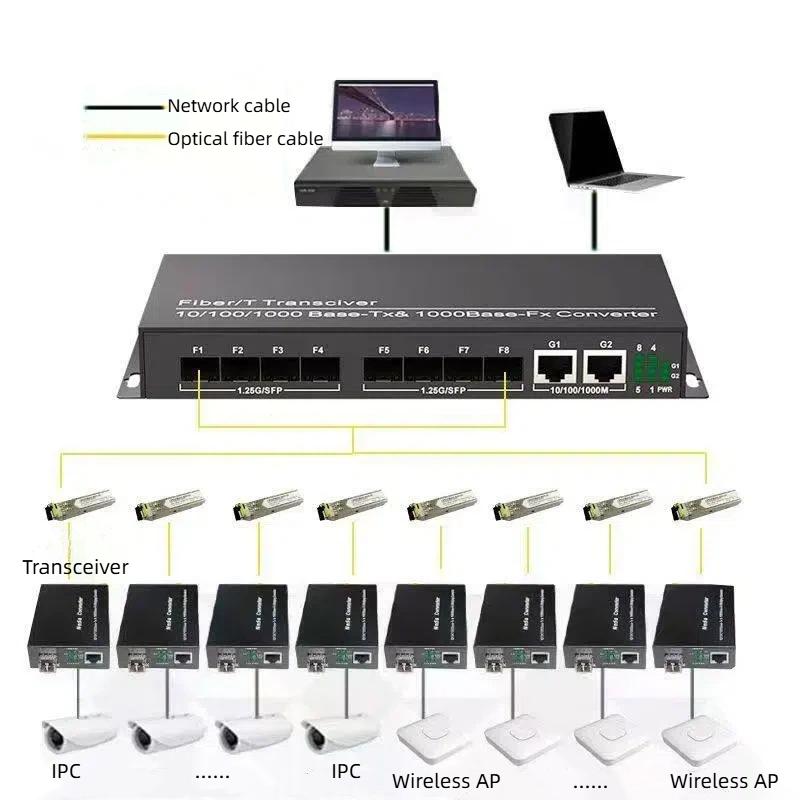

Product connection networking solution
Common networking methods of 1000 mbit 8 fiber 2 copper transceivers.
HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.


Product application

Wide application range: 1000 mbit 8 fiber 2 copper transceivercan adapt to multiple fields such as residential areas/schools, security monitoring, fiber optic home access, enterprise offices, television broadcasting, large local area networks, etc.
HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.Residential areas/schools
HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.Security monitoring
HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.Fiber optic home access
HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.Enterprise offices
HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.Television broadcasting
HCH offers stable 1000 mbit 8 fiber 2 copper transceivers for transmission.Large local area networks
