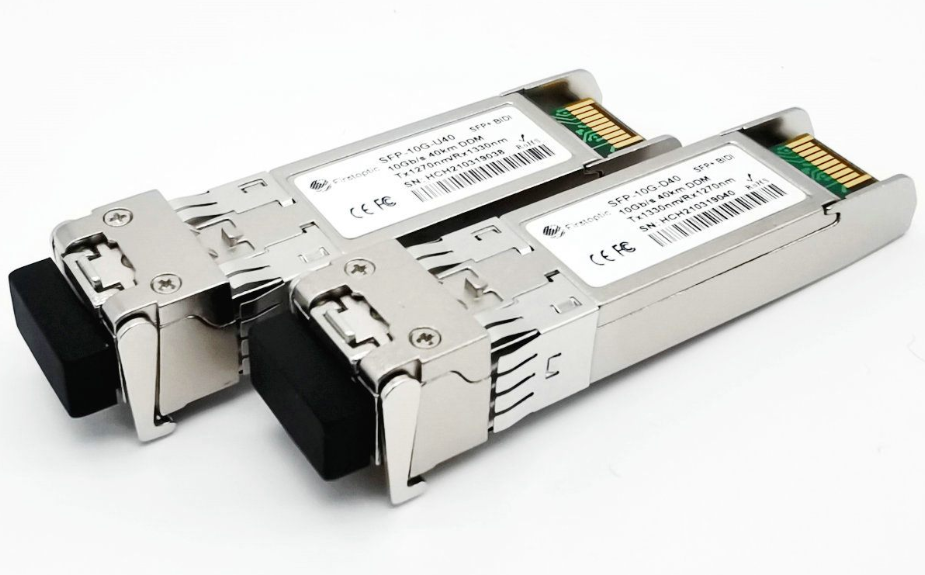

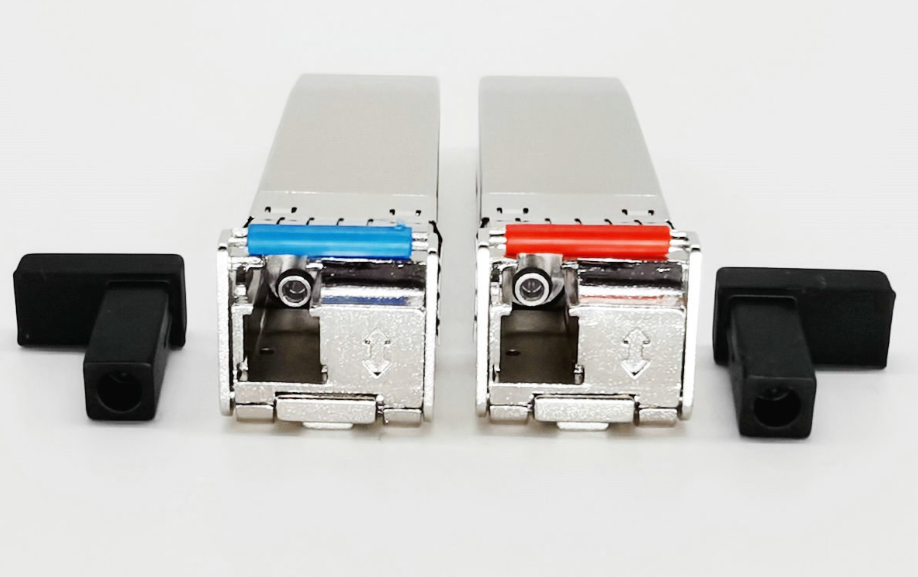

Cisco Compatible SFP+ 10GBASE-D40 BiDi 1330nm-TX/1270nm-RX 40km DDM Simplex LC/UPC SMF Optical Transceiver Module
Product Highlights
*Built-in Smetch Chip, Max. Power Consumption 1W
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
*Double Your Bandwidth by Using Only One Fiber for Transmit and Receive
*Carry Information in Both Directions via a Single Strand
*Hot Pluggable SFP+ MSA Compliant
*BOX - Support Real-time Configuration
*Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
*Class 1 FDA Laser Safety and RoHS Compliant
Brand Compatible With 10GBASE-D40 SFP+ Transceiver Module(SMF, 10G, 1330nm-TX/1270nm-RX, 40km, LC, DDM)
Product Details
Data Rate | Module Type | Distance | Connector | Interface | Temperature | DDM |
10Gb/s | SFP+ | 40KM | 1330nm-TX/1270nm-RX | LC | 0~70℃ | Yes |

The SFP-10GB-D40 is a high-performance 10G Bi-Di SFP fiber module designed for the fiber optic communications industry and uses single-mode fiber for data transmission. As a high-speed, stable communication solution, the 10G Bi-Di SFP fiber module can meet any situation requiring high-speed data transmission and reliable connectivity.
10G Bi-Di SFP fiber module supports bidirectional transmission and can transmit and receive data at the same time without the need for additional optical fiber in and out, thus saving the user cost and space. The SFP-10GB-D40 has excellent performance and transmission distance of more than 40km, so it can play its advantages in various situations such as data centers, local area networks and metropolitan area networks. As a high-performance 10G Bi-Di SFP fiber module, the use of SFP-10GB-D40 can help users achieve long-distance network communication.
The 10G Bi-Di SFP fiber module has the ability to quickly transfer massive amounts of data, providing enterprises with efficient and accurate data transmission. Using 10G Bi-Di SFP fiber module technology, SFP-10GB-D40 not only has the characteristics of high-speed transmission, but also has excellent features such as economical, easy to maintain and upgrade, which can provide more comprehensive services for enterprise users.
The 10G Bi-Di SFP fiber module is equipped with an SFP+ interface for a variety of devices, such as routers, switches, servers, fiber optic transceivers, etc., and is also compatible with other 10G single-mode single-fiber products. As a high-performance 10G Bi-Di SFP fiber module, it has a wide range of applications, enabling high-speed, reliable data transmission in a variety of necessary environments.
In addition to excellent transmission performance, the 10G Bi-Di SFP fiber module also has a strong focus on security and reliability. It uses the latest fiber optic communication technology to make data transmission more stable and reliable, while supporting hot swap function, without affecting the equipment that is already running, and reduce downtime due to component replacement. 10G Bi-Di SFP fiber module is the best choice for your network transmission.

Specifications
Model number | SFP-10GB-D40 | Brand | Firstoptic |
Form Factor | SFP+ | Max. Data Rate | 10.3125Gbps |
Wavelength | 1330nm-TX/1270nm-RX | Max. Cable Distance | 40km |
Connector | Simplex LC | Optical Components | DFB BiDi |
Media | SMF | Receiver Type | PIN |
TX Power | 1~5dBm | Receiver Sensitivity | <-15dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
Certification system

Features
Test Equipment
Compatible Test
QC TestHigh Compatibility for all Brands
