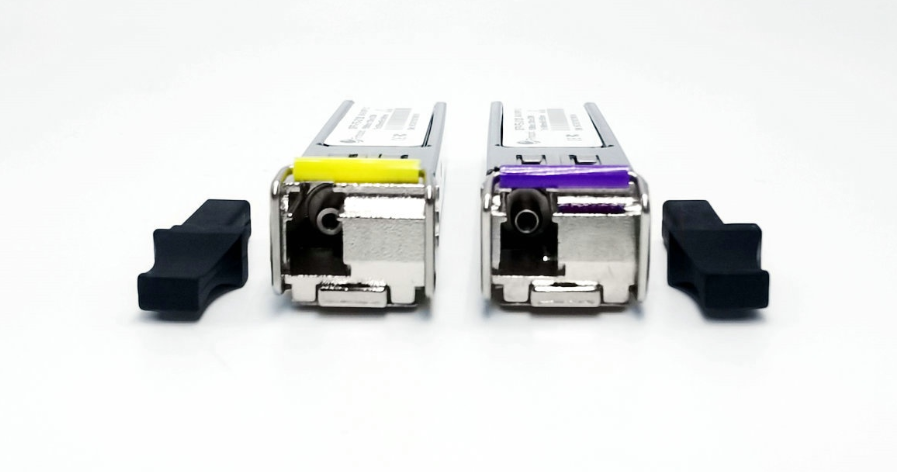

Cisco Compatible SFP 100BASE-BX-D80 BiDi 1550nm-TX/1490nm-RX 80km DDM Simplex LC/UPC SMF Optical Transceiver Module
Product Highlights
*Max. Power Consumption 1W
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability
*Double Your Bandwith by Using Only One Fiber for Transmit and Receive
*Hot Pluggable SFP MSA Compliant
*BOX - Support Real-time
*Digital optical monitoring capability for strong diagnostic capabilities
*Compliant to IEEE 802.3z Gigabit Ethernet
*Class 1 Laser Safety and RoHS compliant
Brand Compatible With 100BASE-BX-D80 SFP Transceiver Module(SMF, 155M, 1550nm-TX/1490nm-RX, 80km, LC, DDM)
Product Details
Data Rate | Module Type | Distance | Connector | Interface | Temperature | DDM |
155Mb/s | SFP | 80KM | 1550nm-TX/1490nm-RX | LC | 0~70℃ | Yes |

The SFP-FE-D80 is a high-performance 100BASE Bi-Di SFP fiber module designed for the fiber optic communications industry and uses single-mode fiber for data transmission. As a high-speed, stable communication solution, the 100BASE Bi-Di SFP fiber module can meet any situation requiring high-speed data transmission and reliable connectivity.
This 100BASE Bi-Di SFP fiber module must be used with another transceiver or network equipment of complementary wavelengths. It provides 100BASE Ethernet connectivity options for Fast Ethernet and Data Centers. The SFP-FE-D80 has excellent performance and transmission distance of more than 80km, so it can play its advantages in various situations such as data centers, local area networks and metropolitan area networks.
100BASE Bi-Di SFP fiber module has the ability to quickly transmit massive data, providing efficient and accurate data transmission for enterprises, in addition, 100BASE Bi-Di SFP fiber module also has excellent characteristics such as economy, easy maintenance and upgrade, and can provide more comprehensive services for enterprise users.
The 100BASE Bi-Di SFP fiber module is equipped with an SFP interface for a variety of devices, such as routers, switches, servers, fiber optic transceivers, etc, and is also compatible with other 100 Megabit single-mode single-fiber products. As a high-performance 100BASE Bi-Di SFP fiber module, it has a wide range of applications, enabling high-speed, reliable data transmission in a variety of necessary environments.
In addition to excellent transmission performance, the 100BASE Bi-Di SFP fiber module also has a strong focus on security and reliability. It uses the latest fiber optic communication technology to make data transmission more stable and reliable, while supporting hot swap function, without affecting the equipment that is already running, and reduce downtime due to component replacement. 100BASE Bi-Di SFP fiber module is the best choice for your network transmission.

Specifications
Model number | SFP-FE-D80 | Brand | Firstoptic |
Form Factor | SFP | Max. Data Rate | 155Mbps |
Wavelength | 1550nm-TX/1490nm-RX | Max. Cable Distance | 80km |
Connector | Simplex LC | Optical Components | FP BiDi |
Media | SMF | DDM Support | Yes |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | IEEE 802.3u, SFF-8472, SFP MSA, CPRI, eCPRI |
Certification system

Features
Test Equipment
Compatible Test
QC TestHigh Compatibility for all Brands
