3M Fiber Optic Patch Cord, MPO/PC(F)-MPO/PC(F), 8 Fibers, Single Mode (OS2), Plenum (OFNP), Type B, Yellow
8F MPO/PC(F)-MPO/PC(F)-OS2-3.0-3M Type B, Yellow
Product Highlights
*Engineered for Peak Performance with 0.25dB Insertion Loss
*Superior Flexibility with 7.5mm Minimum Bend Radius
*Maximum Safety with Plenum (OFNP) Rated Jacket
*Instant Polarity Identification with Color-Coded Boots
*Pre-Configured Type B Polarity for Seamless Deployment
*Engineered for Peak Performance with 0.25dB Insertion Loss
*Superior Flexibility with 7.5mm Minimum Bend Radius
*Maximum Safety with Plenum (OFNP) Rated Jacket
*Instant Polarity Identification with Color-Coded Boots
*Pre-Configured Type B Polarity for Seamless Deployment
Quantity:
Fiber Patch Cable, MPO/PC(F)-MPO/PC(F), 8F, OS2, OFNR, Type B

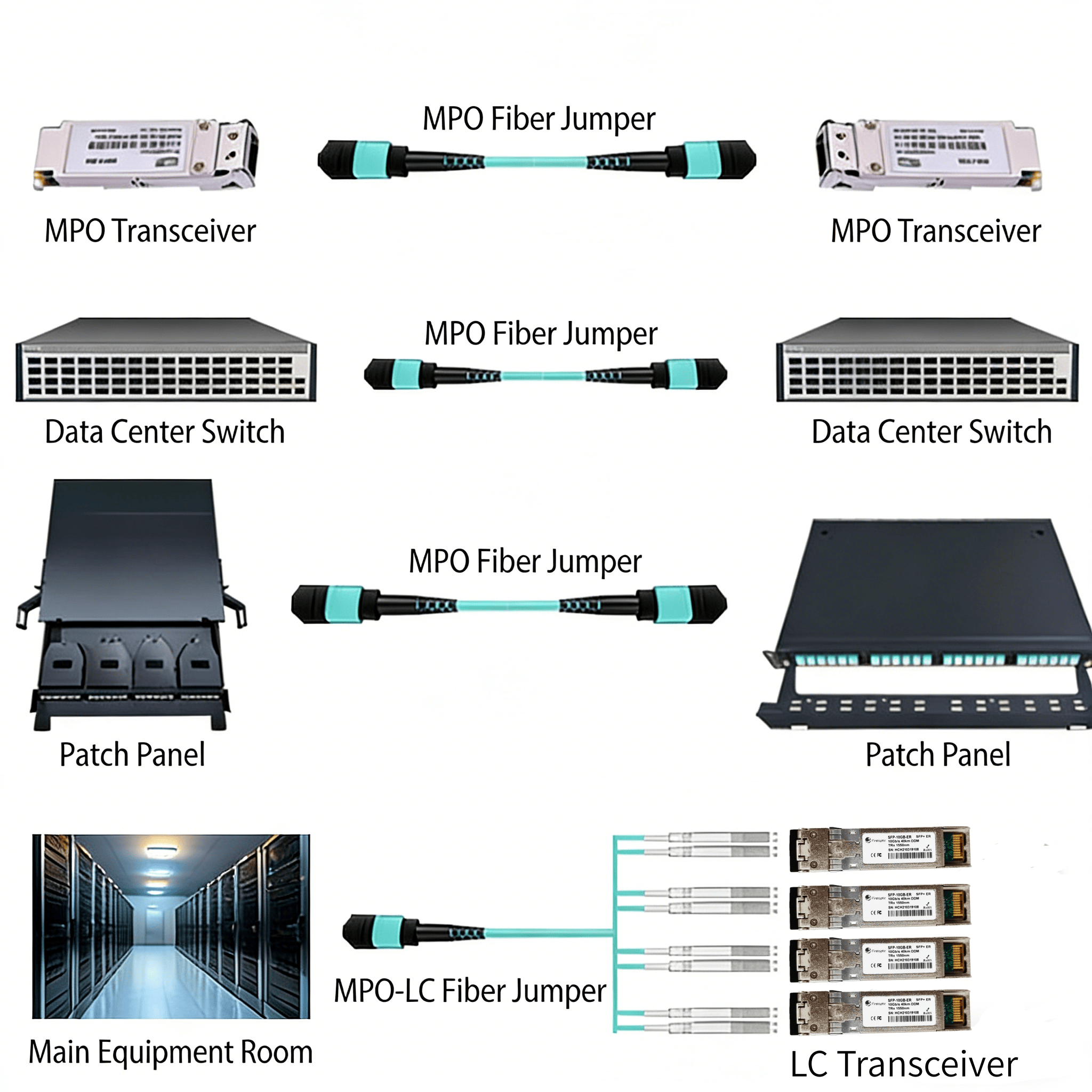

This 8 fiber MPO OS2 patch cable delivers reliable performance for 100G/400G data center and telecom networks. Designed for long-distance transmission with low signal loss, this 8 fiber MPO OS2 patch cable supports high-density connectivity in demanding environments. Featuring an OFNP Plenum-rated jacket, it meets stringent fire safety standards for versatile installation. The MPO-12 connectors on this 8 fiber MPO OS2 patch cable ensure seamless integration and consistent performance. Optimized for backbone and parallel optics applications, this 8 fiber MPO OS2 patch cable provides a future-ready, high-performance optical solution. This 8 fiber MPO OS2 patch cable is essential for scalable, high-speed network infrastructure.
Specifications
Product Name | Fiber Optic Patch Cord | Brand | Firstoptic |
Connector A | MPO/PC(F) | Connector B | MPO/PC(F) |
Fiber Count | 8 Fibers | Polarity | Type B |
Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |

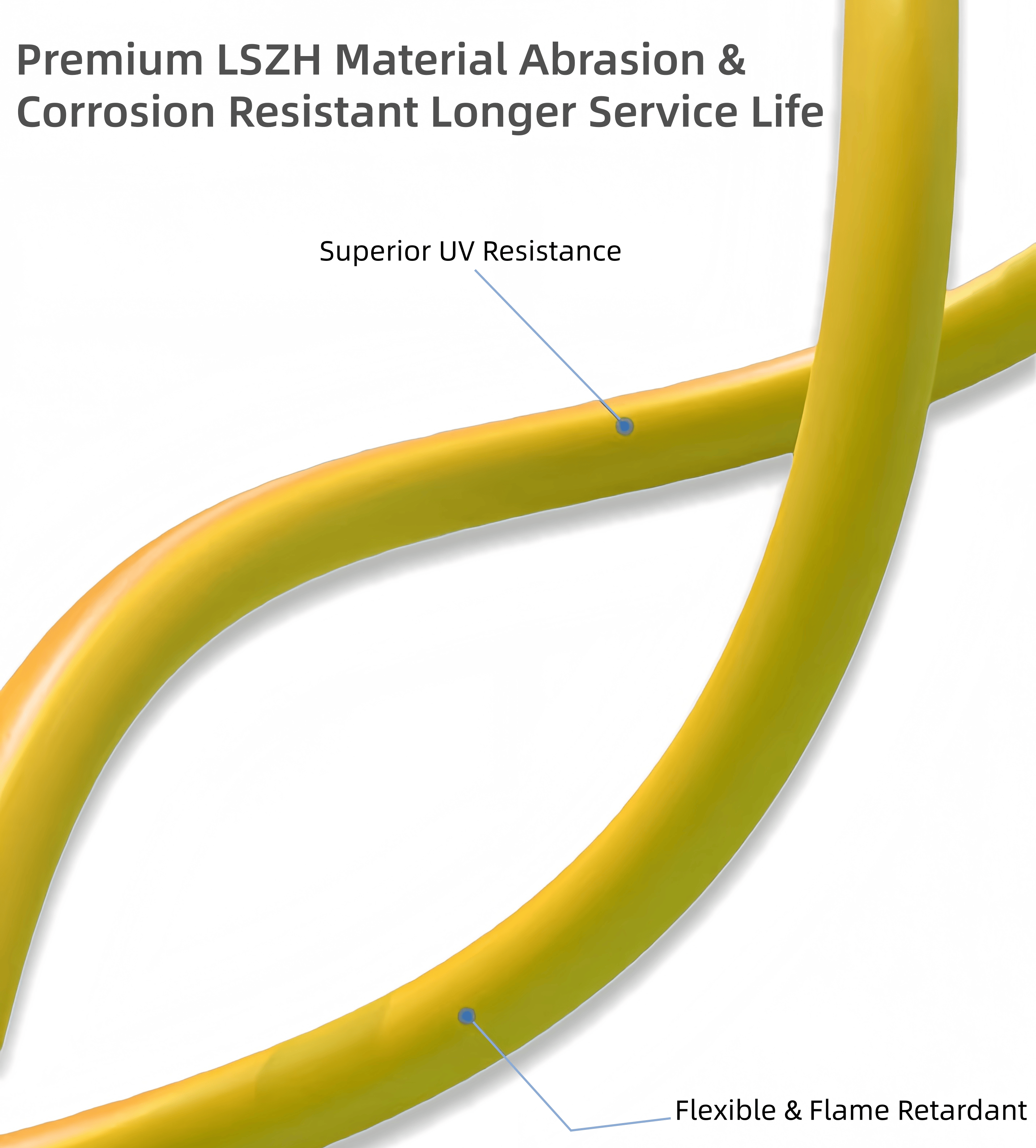

Material | LSZH | Cable Jacket | Plenum (OFNP) |
Cable Outside Diameter (OD) | 3.0mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
Connector Durability | 500 times | Tensile Strength (Long/Short Term) | 80/240N |
Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
Attenuation at 1310 nm | ≤0.4B/km | Attenuation at 1550nm | ≤0.3dB/km |
Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |
Polarity test
Insertion/return loss detection
End detection
