200G QSFP56 AOC Cable Cisco Compatible Active Optical Cable for Data Center

QSFP56-200G-AOC

This 200g qsfp56 aoc cable is designed for ultra-high-speed data transmission in cloud data centers and AI network environments. The 200g aoc cable provides reliable and low-latency interconnections between switches, servers, and storage systems for modern high-density network architectures.

Product Highlights
*Supports 200Gbps high-speed optical transmission
*Plug-and-play design for simplified deployment
*Low power consumption for energy-efficient operation
*Optimized for cloud data centers and AI networking
*Flexible cable structure for easier cable management
*EMI-immune optical transmission ensures stable performance
*Fully tested for compatibility with major switch brands

Quantity:

Contact Now

add to cart

Cisco QSFP28-200G-AOC Compatible 200G QSFP56 AOC ( QSFP56 to QSFP56)

Our 200g qsfp56 aoc is a high-performance active optical cable with integrated QSFP56 connectors, designed for high-speed data transmission over multi-mode fiber (MMF). This 200g aoc cable delivers low power consumption, simplified deployment, and reliable signal integrity for modern cloud computing, AI clusters, and high-performance computing (HPC) environments. Compliant with QSFP56 MSA standards, the 200g qsfp56 aoc provides a cost-effective alternative to separate optical transceivers and fiber patch cords in high-density data center networks.

Specifications

Model number	QSFP56-200G-AOC	Brand	Firstoptic
Connector Type	QSFP56 to QSFP56	Max Data Rate	200Gbps
Media	Multi-mode Fiber(OM3/OM4)	Cable Length	1m–100m (customizable)
Power Consumption	≤2.5W	Application	Data Center 200G Link
Jacket Material	LSZH Fireproof Sheath	Compliance Standard	QSFP56 MSA Certified
Protocols Supported	200G Ethernet, InfiniBand QDR	Minimum Bend Radius	30mm
Temperature	0 to 70°C (32 to 158°F)	Warranty Period	3-Year Warranty

Application Scenarios

200g qsfp56 aoc deployed between switches in data center rack environment

1. AI Cluster Interconnects:

The 200G QSFP56 AOC enables ultra-high-speed connectivity between GPU servers and AI switches in modern AI training clusters.

2. Hyperscale Data Center Networking:

This 200G AOC cable supports high-density 200Gbps interconnections for cloud computing and hyperscale network infrastructures.

GPU Server Connectivity

The 200g qsfp56 aoc provides reliable high-bandwidth connectivity between AI switches and GPU servers. Designed for modern AI infrastructure, this 200g aoc cable supports low-latency data transmission, simplified deployment, and flexible rack-level interconnections in GPU clusters.

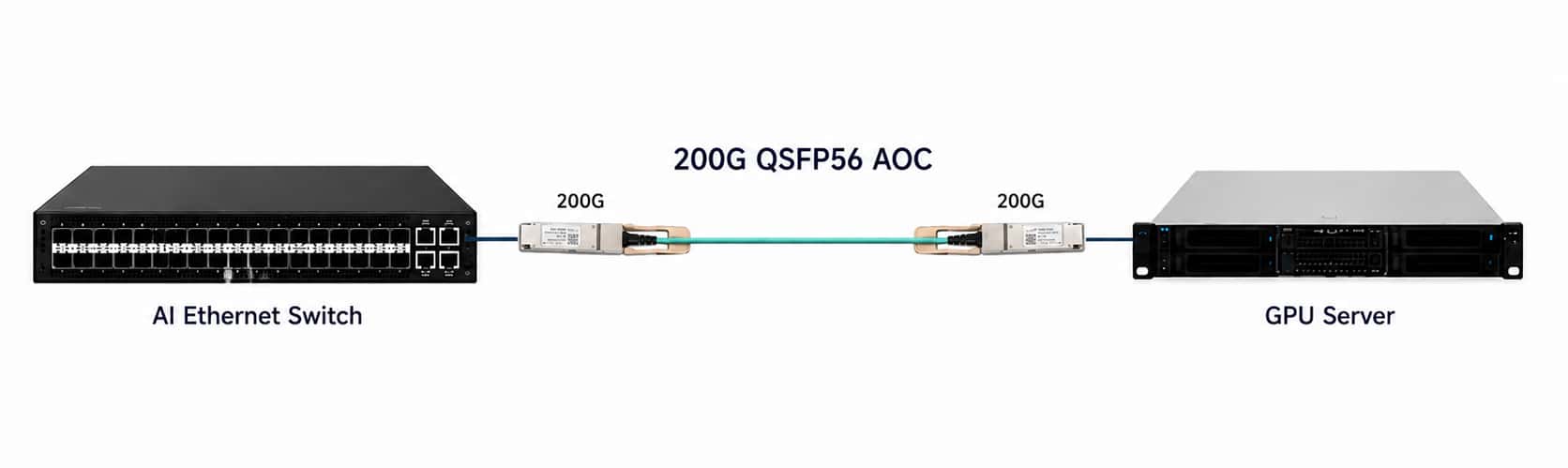

200g qsfp56 aoc connecting AI Ethernet switch and GPU server for high-bandwidth AI cluster networking

Advanced Quality Assurance Testing

Each 200g qsfp56 aoc is subjected to rigorous compatibility, thermal stability, signal integrity, and reliability testing to ensure optimal performance in AI networking

and hyperscale data center deployments.The 200g aoc cable is fully tested for high-speed 200Gbps transmission and long-term operational stability.

200g qsfp56 aoc and 200g aoc cable compatibility reliability performance and solution testing

Compatible with AI and Cloud Network Platforms

The 200g qsfp56 aoc supports interoperability with major switch, server, storage, and AI networking platforms.
Custom EEPROM programming is available for Cisco, Arista, NVIDIA, Huawei, H3C, Juniper, Dell, HPE, and other mainstream vendors.

200g qsfp56 aoc compatible with Cisco Arista NVIDIA Huawei H3C Juniper Dell and HPE platforms

FAQ Section

Q1: What is a 200G QSFP56 AOC?
A 200G QSFP56 AOC is an active optical cable with integrated QSFP56 connectors and optical fiber, designed for 200G Ethernet short-reach connectivity.

Q2: Where is a 200g qsfp56 aoc commonly used?
It is commonly used in data centers, cloud networks, HPC clusters, storage systems, and switch-to-switch or server-to-switch connections.

Q3: What is the advantage of a 200g aoc cable compared with DAC?
A 200g aoc cable is lighter, more flexible, and better suited for longer short-reach connections than copper DAC cables.

Q4: Does the QSFP56 active optical cable require separate optical modules?
No. A qsfp56 active optical cable integrates the optical modules and fiber cable into one plug-and-play assembly.

Q5: Is the 200G QSFP56 AOC compatible with major switch brands?
Yes. The cable can be programmed for compatibility with Cisco, Arista, NVIDIA, Huawei, H3C, Juniper, Dell, HPE and other mainstream platforms.
