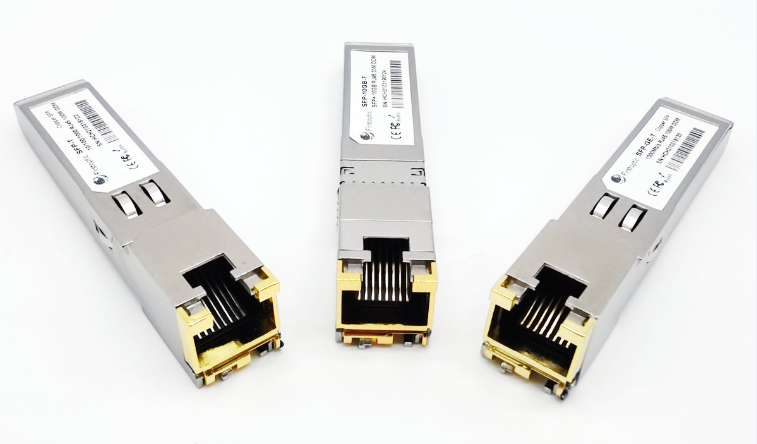

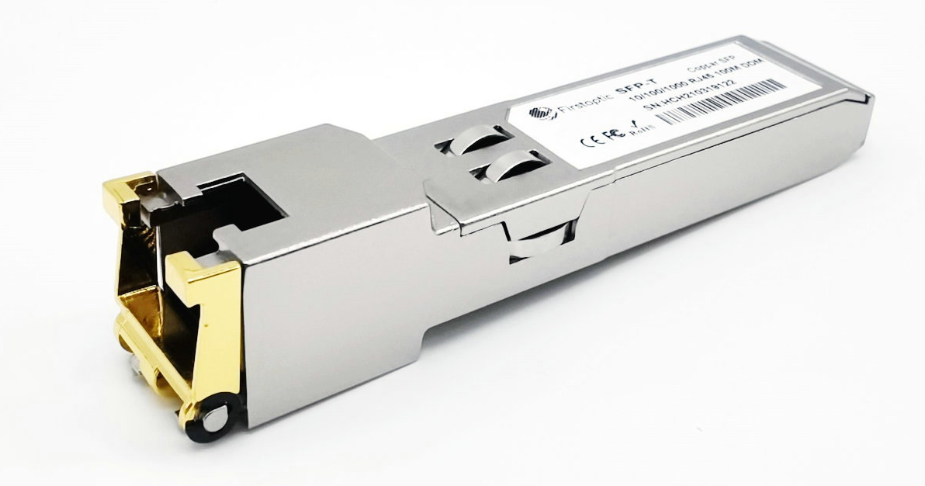

Cisco Compatible SFP 10/100/1000BASE-T Copper 100m RJ-45 Transceiver Module

SFP-T

The 10/100/1000Base SFP copper transceiver module is a small plug-in type (SFP) transceiver that can transmit and receive data over a copper Ethernet cable. It supports data transfer speeds of 10Mbps, 100Mbps or 1000Mbps (1Gbps) depending on the network infrastructure. It has a copper RJ45 interface for connecting Ethernet cables and allows connection distances up to 100 meters. This module is commonly used in enterprise networks to connect switches, routers, and servers to the network.

Product Highlights
*Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify MaintenanceMax.
*Power Consumption 1.2W Allowing for Prolonged Service Life
*Commercial Temperature Range 0 to 70°C (32 to 158°F)
*BOX - Support Real-time Configuration
*Compliant to IEEE Std 802.3 and 802.3ab Gigabit Ethernet
*Tested in Targeted Switches for Superior Performance, Quality, and Reliability

Quantity:

Contact Now

add to cart

Brand Compatible With 10/100/1000BASE-T SFP Transceiver Module (Copper, 100m, RJ-45)

Cisco compatible 10/100/1000base SFP copper transceiver supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each 10/100/1000base SFP copper transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 10/100/1000base SFP copper transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.

Product Details

Part Number：SFP-T

Description：SFP electrical interface module, 10/100/1000Mbps, 3.3V, LC, working temperature 0~70℃, RJ-45, 100M

Compatible with：H3C, HW, Cisco, HP, etc

Data Rate	Module Type	Distance	Connector	Interface	Temperature	DDM
10/100/1000Mbps	SFP	100M	RJ-45	LC	0~70℃	Yes

10/100/1000base sfp copper transceiver module provides high-speed, stable network transmission

SFP-T is a high-performance 10/100/1000base sfp copper transceiver module, which can support gigabit self-adaptation ports and is widely used in Gigabit Ethernet communication. The module uses cables to transmit high-speed data and is compatible with a variety of Gigabit Ethernet devices.

10/100/1000base sfp copper transceiver module is an excellent network equipment, in which SFP-T is its important component. The SFP-T has an RJ-45 interface for easy connection to 10/100/1000BASE-T devices. This compact optical interface design enables the 10/100/1000base sfp copper transceiver module to fit multiple interfaces in a smaller space, enabling servers, routers, and switches to support more connections and improve network performance.

The SFP-T is highly interoperable, supporting both simplex and full-duplex modes, as well as through and cross-connect. In addition, the 10/100/1000base sfp copper transceiver module can automatically negotiate to ensure that connected devices have the same rate and connection type.

The 10/100/1000base sfp copper transceiver module combines a high degree of flexibility with superior transmission performance. It can use Cat6, Cat6a and other different types of cables to carry data transmission, while the maximum transmission distance can reach 100 meters.

In addition, SFP-T is an efficient 10/100/1000base sfp copper transceiver module, which not only complies with the RoHS directive, but also passes the ISO 9001 and ISO 14001 certified quality system to ensure the stability and reliability of the equipment. The 10/100/1000base sfp copper transceiver module has a digital diagnostic function that allows remote monitoring of transmission performance and optical power sent/received via a network management platform. These features make 10/100/1000base sfp copper transceiver module an essential part of today's enterprise networks and can provide a stable and highly reliable connection during high-speed data transfers. Whether it's a data center, a switch, or a router, 10/100/1000base sfp copper transceiver modules provide outstanding performance and stability for your enterprise network.

In summary, 10/100/1000base sfp copper transceiver module is an efficient and reliable optical fiber communication module, which can realize high-speed data transmission, with a high degree of flexibility and interoperability. The module is ideal for a variety of application scenarios, such as enterprise networks, data centers, broadcast television and surveillance video. As one of the most common optical communication devices, 10/100/1000base sfp copper transceiver module provides more options and possibilities, so that its manufacturers and users can be more efficient network deployment and performance optimization.

Specifications

Model number	SFP-T	Brand	Firstoptic
Form Factor	SFP SGMII	Max. Data Rate	1000Mbps
Max. Cable Distance	100m	Media	Cat 6/Cat 6a
Connector	RJ-45	Rx LOS	NO
Power Consumption	≤1.2W	DDM/DOM	Supported
Commercial Temperature Range	0 to 70°C (32 to 158°F)	Bit Error Ratio (BER)	1.00E-12
Protocols	MSA Compliant, IEEE STD 802.3	Warranty	3 Years

Certification system

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Features

Before shipping, we conduct rigorous product testing, including the testing of 10/100/1000base sfp copper transceiver modules, to ensure that every product meets the high quality standards. We are committed to providing the most reliable and highest quality optical fiber communication products, to bring excellent performance and stability to our customers.

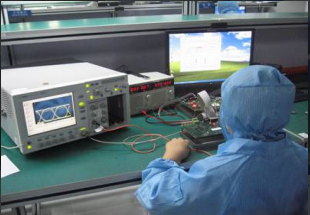

Test Equipment

Compatible Test

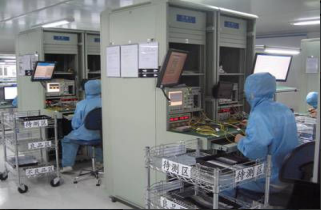

QC Test

High Compatibility for all Brands

The company sells a full line of SFP optical module products compatible with all major brands of equipment.
